Toyota WILL CYPHA — STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-70020i1NZFE,2NZFE..NCP7#200209

28100STARTER ASSY

main28100-21030supersedes 28100-21020i1NZFE,2NZFE..NCP7#200209

sub28100-21031

28120YOKE ASSY, STARTER

main28120-70050supersedes 28120-70020i1NZFE,2NZFE..NCP7#200209

28140HOLDER ASSY, STARTER BRUSH

main28140-70020i1NZFE,2NZFE..NCP7#200209

28150SWITCH ASSY, MAGNET STARTER

main28150-16160i1NZFE,2NZFE..NCP7#200209

28160ARMATURE ASSY, STARTER

main28160-70050supersedes 28160-70021i1NZFE,2NZFE..NCP7#200209

9017908146

main90179-08146

9161261065

main91612-61065

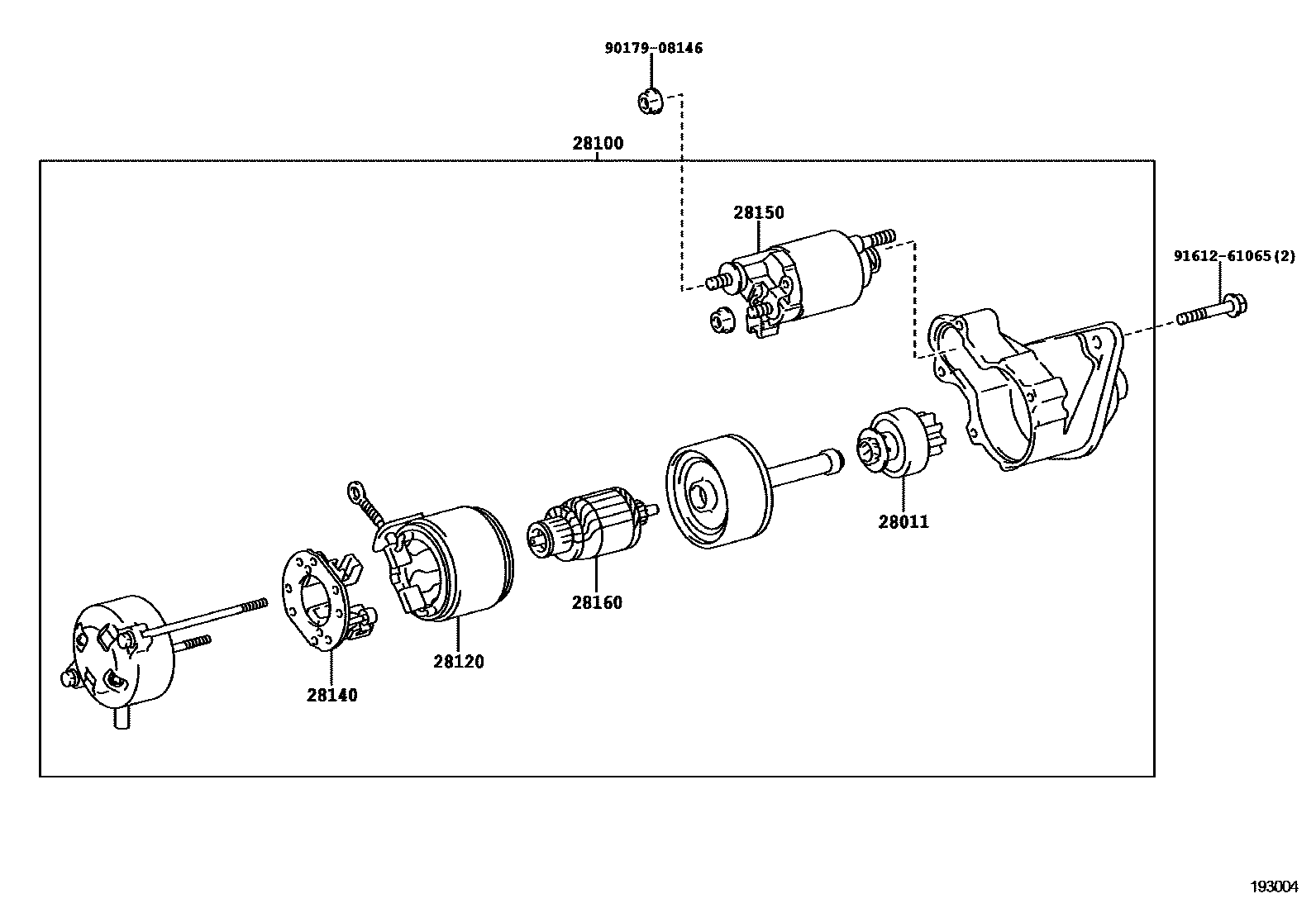

8 parts on this diagram · 1 diagram in section
