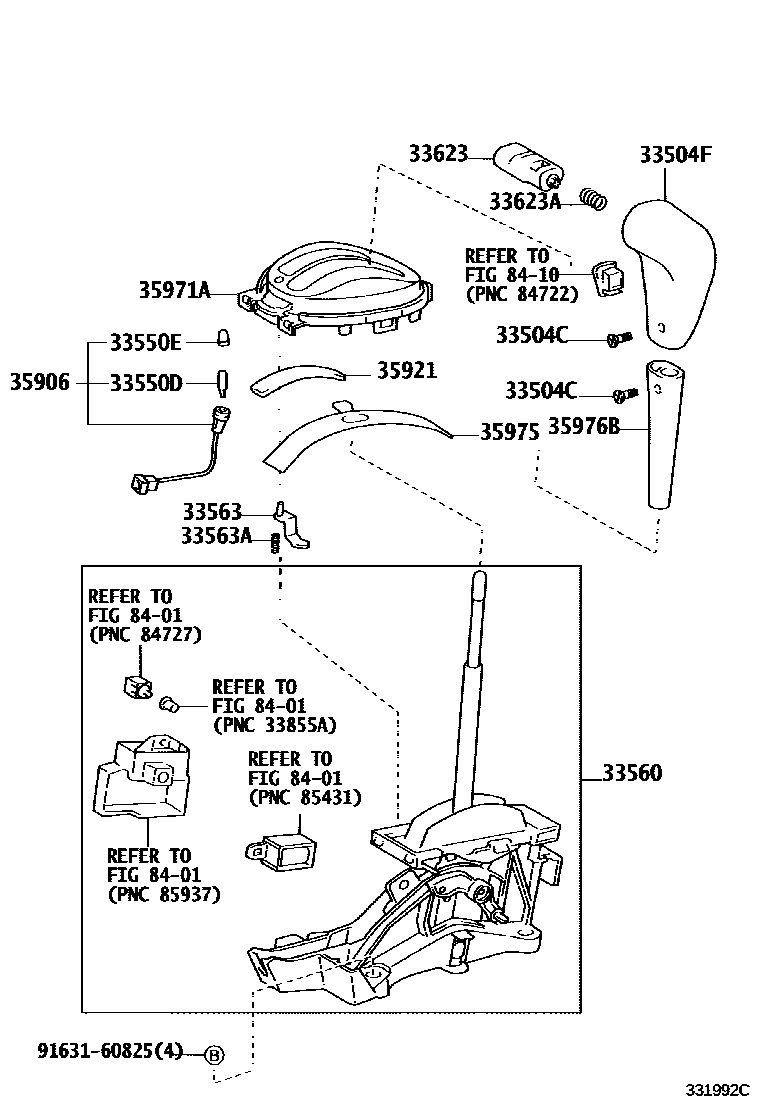

Toyota WILL CYPHA — SHIFT LEVER & RETAINER

0001 1 0002 1

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90159-40221iNCP7#200209

33504FKNOB SUB-ASSY, SHIFT LEVER

main33542-52010-C0iNCP7#200209-200507

BLACK,TRIM2#

33550DBULB, POSITION INDICATOR LAMP

main90981-11014iNCP7#200209-200507

33550ECAP, POSITION INDICATOR LAMP

main35956-52030iNCP7#200209-200507

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-52090iNCP7#200209

33563BUTTON, SHIFT LOCK RELEASE

main33563-52030iNCP7#200209

33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)

main90501-05055iNCP7#200209

33623BUTTON, SHIFT LEVER KNOB

main33623-52010-C0iNCP7#200209-200507

BLACK,TRIM2#

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-06082iNCP7#200209

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-52010iNCP7#200209

35921PLATE, CONTROL POSITION INDICATOR

main35921-52010iNCP7#200209

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-52110iNCP7#200209

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-52030iNCP7#200209

35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)

main35976-52010-C0iNCP7#200209-200507

BLACK,TRIM2#

8401

8410

9163160825

main91631-60825

17 parts on this diagram · 2 diagrams in section
