Toyota WILL CYPHA — REAR WIPER

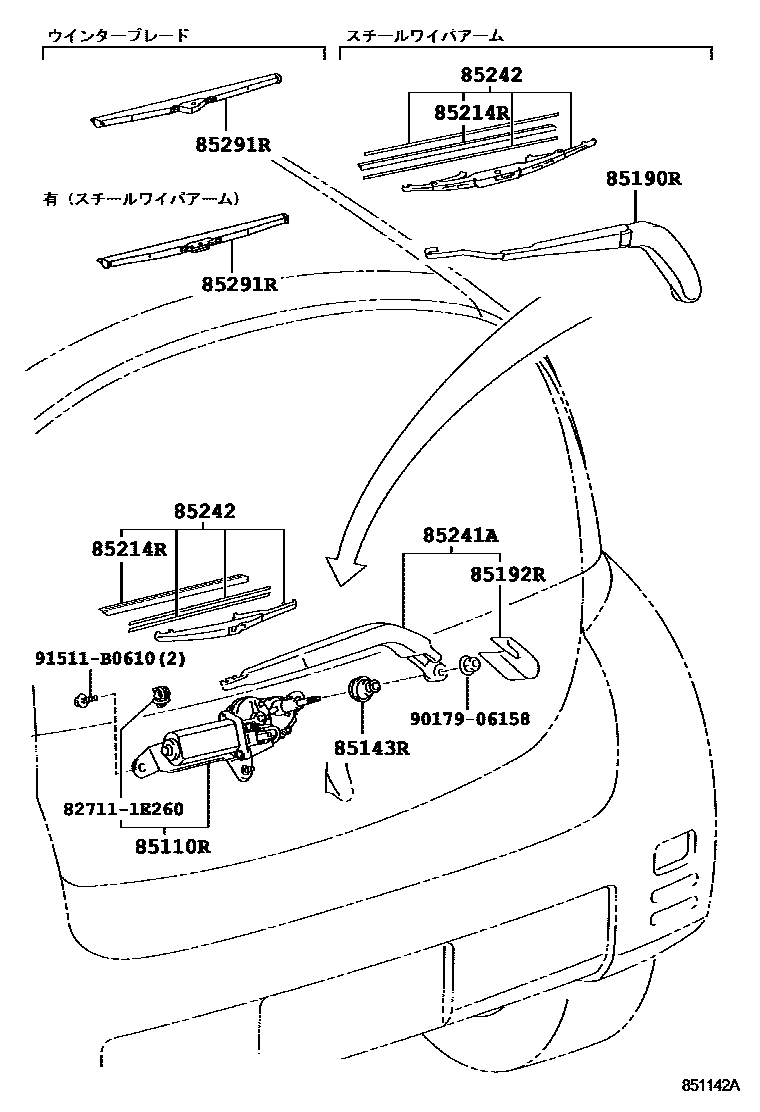

Parts diagram

85110RMOTOR ASSY, REAR WIPER

main85130-52070i200209

85143RGROMMET, REAR WIPER MOTOR

main85143-52030i200209

85190RARM ASSY, REAR WIPER

main85241-44020i200209

85192RCOVER, REAR WIPER ARM

main85292-28030i200209

85214RRUBBER, REAR WIPER

main85214-30280i200209

85241AARM, REAR WIPER

main85241-28070i200209

85242BLADE, RR WIPER

main85242-30040i200209

main85242-63010i200209

85291RBLADE,REAR WIPER, WINTER

main85291-60030supersedes 85291-63010i200209

main85291-63010×2i200209

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

9017906158

main90179-06158

91511B0610

main91511-B0610

11 parts on this diagram · 1 diagram in section

REAR WIPER for Toyota WILL CYPHA

This section contains 11 genuine Toyota parts for the REAR WIPER system of the Toyota WILL CYPHA. Key components include: MOTOR ASSY, REAR WIPER, GROMMET, REAR WIPER MOTOR, ARM ASSY, REAR WIPER, COVER, REAR WIPER ARM, RUBBER, REAR WIPER.
