Toyota WILL CYPHA — REAR WASHER

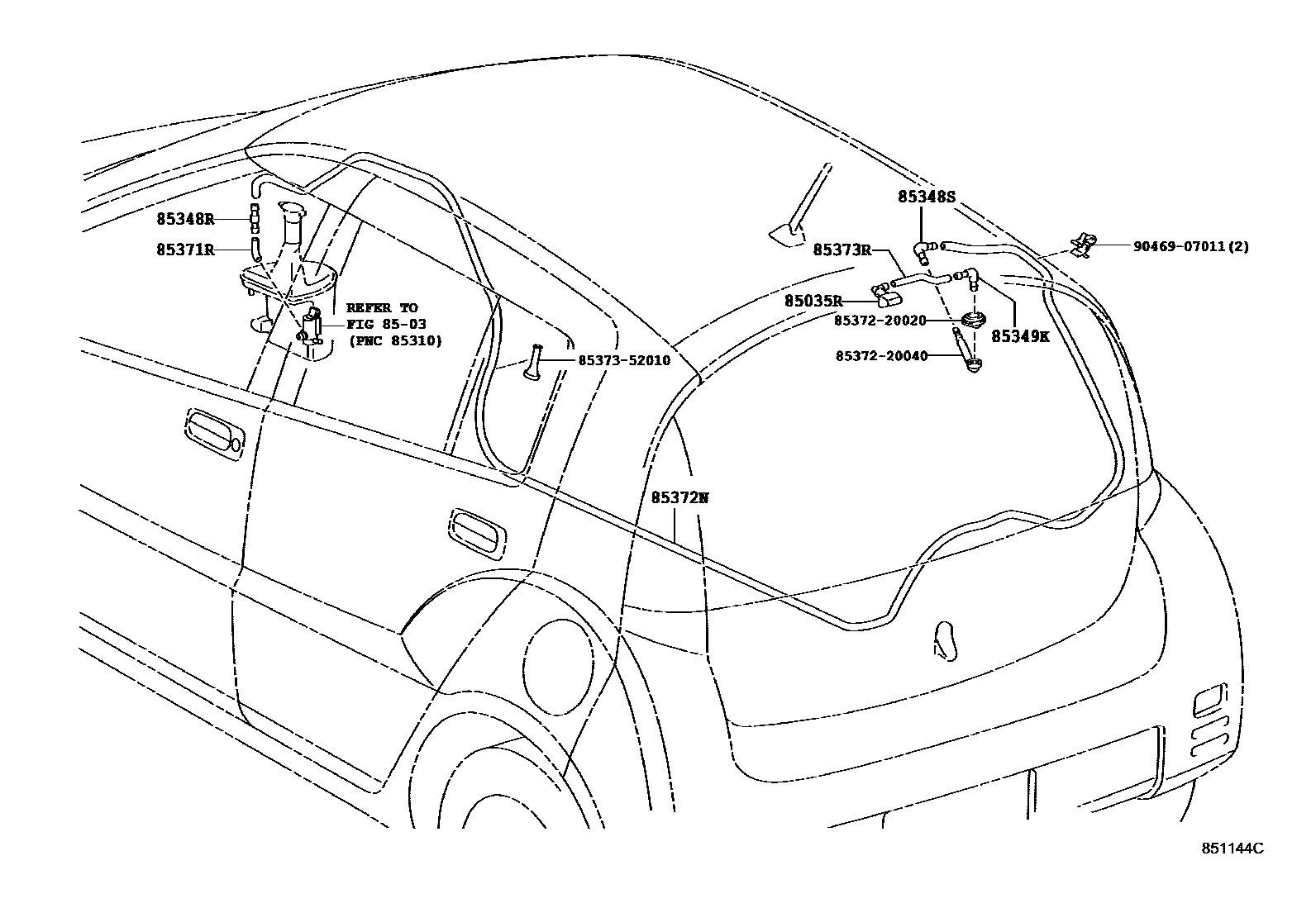

Parts diagram

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-52060i200209

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122i200209

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200i200209

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-20200i200209

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080i200209-200507

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-59319i200209

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299i200209

8537220020HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20020

8537220040HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20040

8537352010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-52010

9046907011

main90469-07011

12 parts on this diagram · 1 diagram in section

REAR WASHER for Toyota WILL CYPHA

This section contains 12 genuine Toyota parts for the REAR WASHER system of the Toyota WILL CYPHA. Key components include: WINDSHIELD WASHER, NOZZLE SUB-ASSY, REAR WASHER, JOINT, REAR WASHER HOSE, NO.1, JOINT, REAR WASHER ELBOW, NO.1, JOINT, REAR WASHER ELBOW, NO.2.
