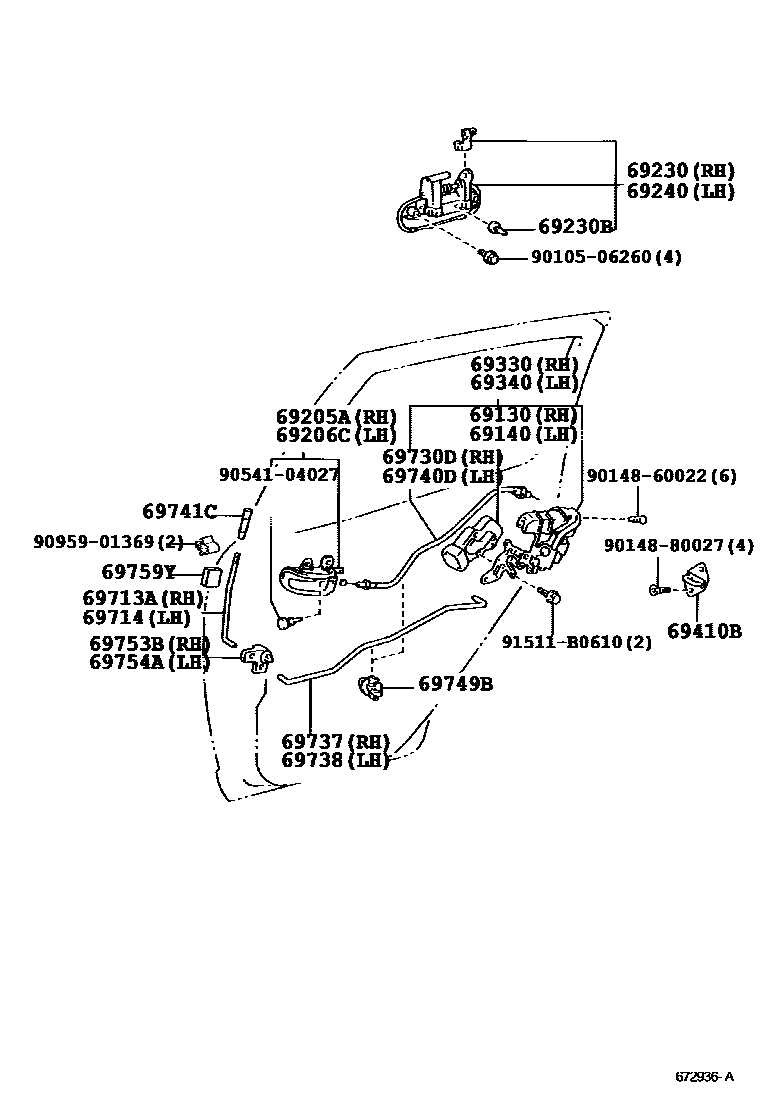

Toyota WILL CYPHA — REAR DOOR LOCK & HANDLE
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM2#
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SUPER WHITE 2,040
SUPER RED II,3E5
ORANGE PEARL MICA,4R7
LT.YELLOW,592
GREEN,6T0
LT. AQUA M.M.,772
BLUE,8Q8
DK.BLUE,8Q9
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SUPER WHITE 2,040
SUPER RED II,3E5
ORANGE PEARL MICA,4R7
LT.YELLOW,592
GREEN,6T0
LT. AQUA M.M.,772
BLUE,8Q8
DK.BLUE,8Q9
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH
69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69737LINK, REAR DOOR INSIDE LOCKING, RH
69738LINK, REAR DOOR INSIDE LOCKING, LH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69741CKNOB, REAR DOOR LOCK CONTROL
69749BCLAMP, REAR DOOR LOCK LINK
69753BBELLCRANK, REAR DOOR LOCK CONTROL, RH
69754ABELLCRANK, REAR DOOR LOCK CONTROL, LH
69759YSILENCER, REAR DOOR LOCK LINK
9010506260
main90105-06260
9014860022
main90148-60022
9014880027
main90148-80027
9054104027
main90541-04027
9095901369
main90959-01369
91511B0610
main91511-B0610
27 parts on this diagram · 1 diagram in section
REAR DOOR LOCK & HANDLE for Toyota WILL CYPHA
This section contains 27 genuine Toyota parts for the REAR DOOR LOCK & HANDLE system of the Toyota WILL CYPHA. Key components include: ACTUATOR ASSY, REAR DOOR LOCK, RH, ACTUATOR ASSY, REAR DOOR LOCK, LH, HANDLE SUB-ASSY, REAR DOOR INSIDE, RH, HANDLE SUB-ASSY, REAR DOOR INSIDE, LH, HANDLE ASSY, REAR DOOR OUTSIDE, RH.
