Toyota WILL CYPHA — REAR COMBINATION LAMP

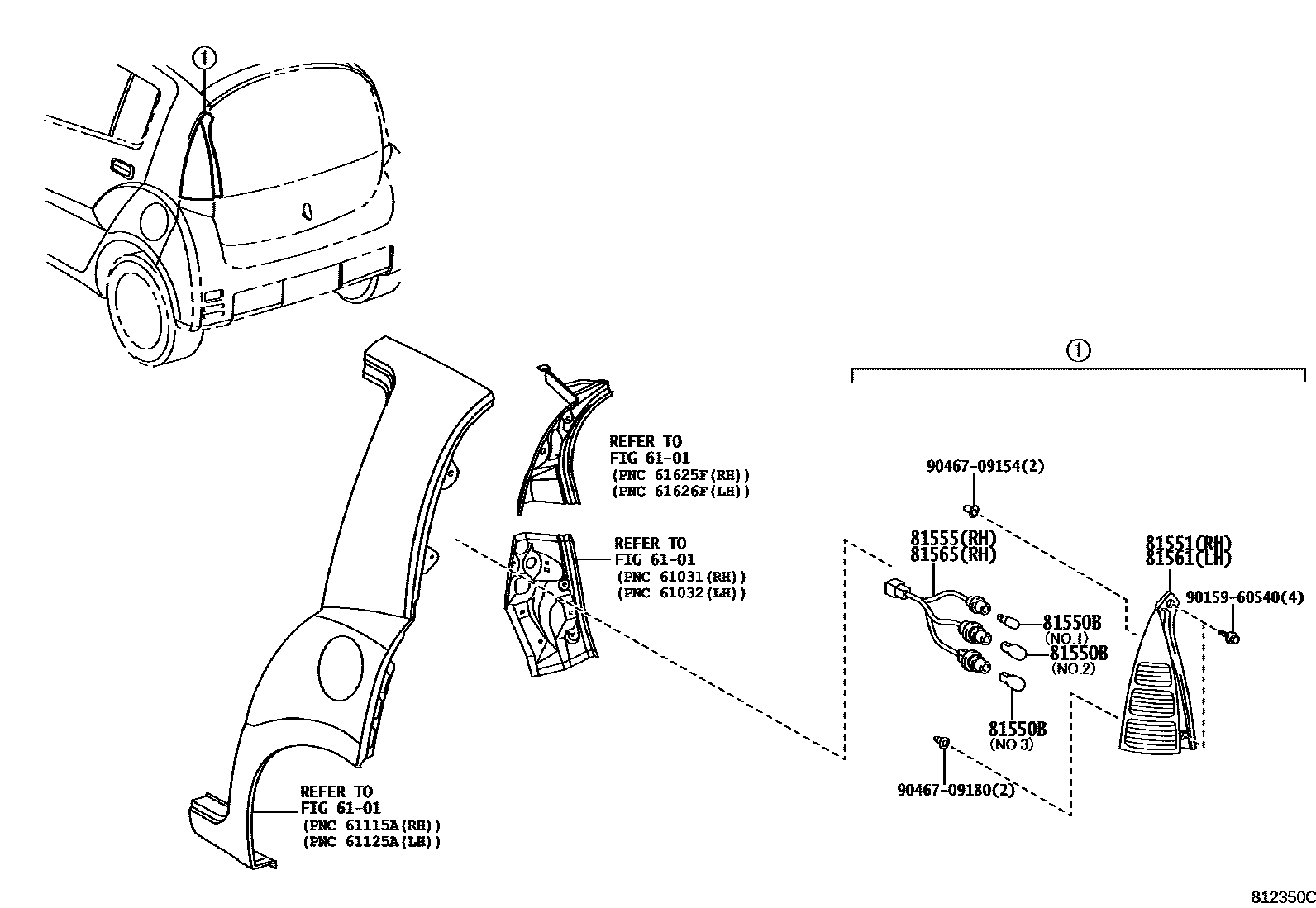

Parts diagram

6101SIDE MEMBER

→ Go to FIG 61-01

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11048×2i200209

main90981-11055×2i200209

main90981-15013×2i200209

81551LENS, REAR COMBINATION LAMP, RH

main81551-52340i200209

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-52340×2i200209

81561LENS, REAR COMBINATION LAMP, LH

main81561-52280i200209

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-52340×2i200209

9015960540

main90159-60540

9046709154

main90467-09154

9046709180

main90467-09180

9 parts on this diagram · 1 diagram in section

REAR COMBINATION LAMP for Toyota WILL CYPHA

This section contains 9 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota WILL CYPHA. Key components include: SIDE MEMBER, BULB(FOR REAR COMBINATION LAMP), LENS, REAR COMBINATION LAMP, RH, SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH, LENS, REAR COMBINATION LAMP, LH.
