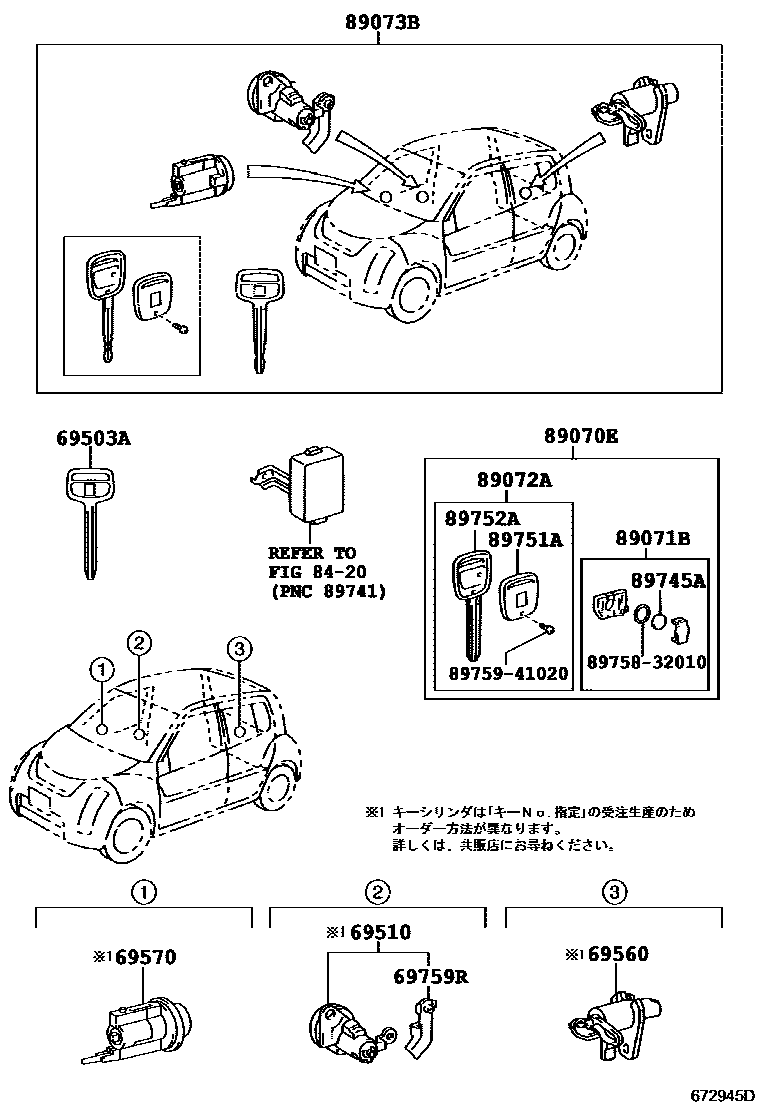

Toyota WILL CYPHA — LOCK CYLINDER SET

69503AKEY, BLANK

main90999-00247i200209-200311

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-52140i200209-200507

69560CYLINDER ASSY, BACK DOOR LOCK

main69560-52170i200209-200507

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-12180i200209-200507

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-12080i200209

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-52310i200209

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-32030i200209

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-12400i200209-200507

89073BCYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main89073-52420i200209

89745ABATTERY, TRANSMITTER

main89745-41010i200209

89751ACOVER, TRANSMITTER HOUSING

main89751-12080i200209-200507

89752ACASE, TRANSMITTER HOUSING

main89752-12180i200209-200507

8975832010PACKING, DOOR CONTROL TRANSMITTER

main89758-32010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

15 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota WILL CYPHA

This section contains 15 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota WILL CYPHA. Key components include: KEY, BLANK, CYLINDER ASSY, FRONT DOOR LOCK, RH, CYLINDER ASSY, BACK DOOR LOCK, CYLINDER ASSY, IGNITION SWITCH LOCK, SNAP, FRONT DOOR LOCK CYLINDER.
