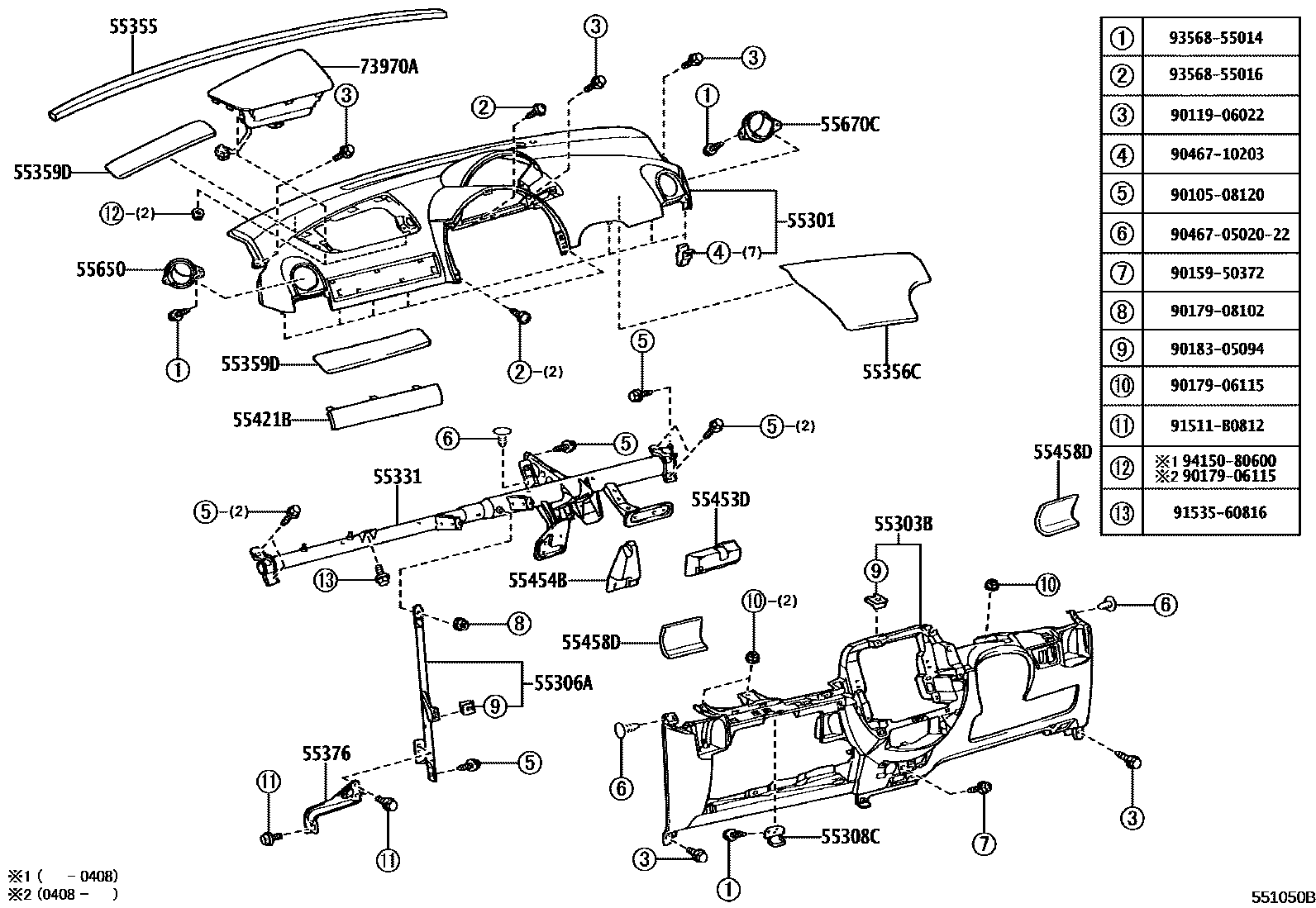

Toyota WILL CYPHA — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55301PANEL SUB-ASSY, INSTRUMENT

main55301-52130-C0iNCP7#200209-200507

BLACK,TRIM2#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-52070-C0iNCP7#200209-200507

BLACK,TRIM2#

sub55303-52071

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-52100iNCP7#200209

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-52060iNCP7#200209

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-52230iNCP7#200209

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-52012iNCP7#200209

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-52100iNCP7#200209

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-52060iNCP7#200209

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-52020iNCP7#200209

55421BPANEL, INSTRUMENT CLUSTER FINISH, UPPER

main55421-52020iNCP7#200209

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-52030iNCP7#200209

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-52020iNCP7#200209

55458DCOVER, INSTRUMENT LOWER, RH

main55458-52010iNCP7#200209

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-20330-C0iNCP7#200209-200507

BLACK,TRIM2#

sub55650-20330

55670CREGISTER ASSY, INSTRUMENT PANEL, NO.2

main55670-20270-C0iNCP7#200209-200507

BLACK,TRIM2#

sub55670-20270

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-52110-C0iNCP7#200209-200507

BLACK,TRIM2#

sub73970-52111

9010508120

main90105-08120

9011906022

main90119-06022

9015950372

main90159-50372

9017906115

main90179-06115

9017908102

main90179-08102

9018305094

main90183-05094

904670502022

main90467-0502022

9046710203

main90467-10203

91511B0812

main91511-B0812

9153560816

main91535-60816

9356855014

main93568-55014

9356855016

main93568-55016

9415080600

main94150-80600

29 parts on this diagram · 4 diagrams in section
