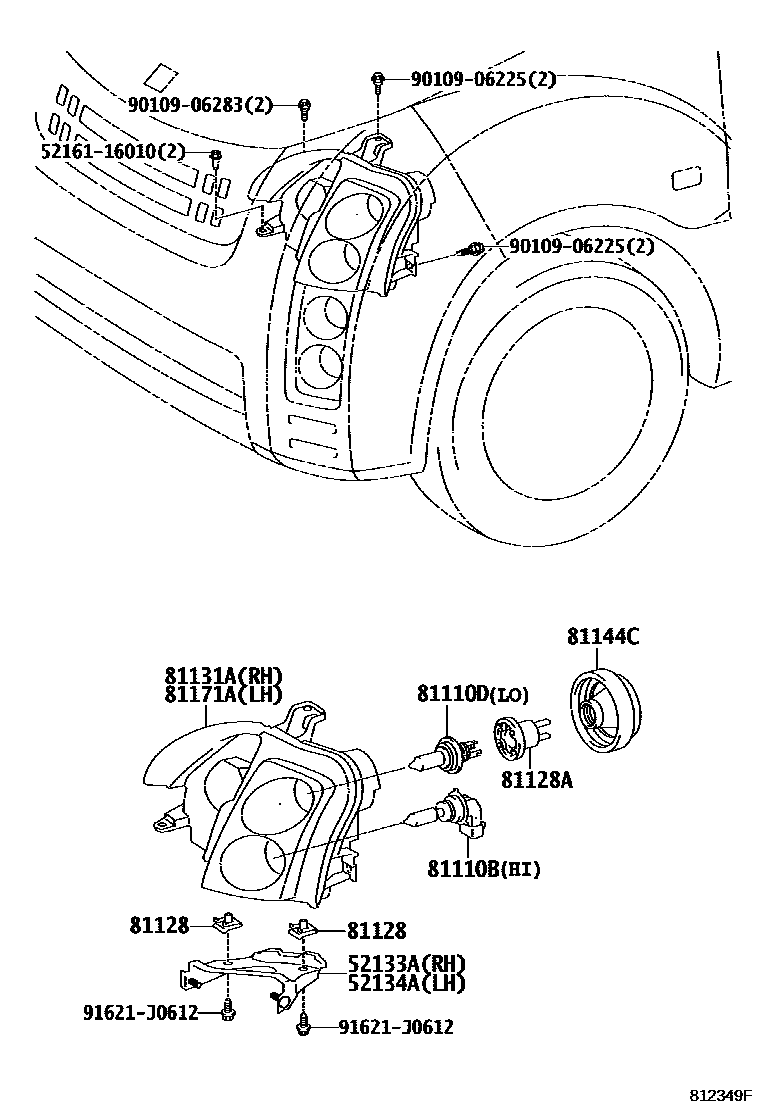

Toyota WILL CYPHA — HEADLAMP

52133ABRACKET, FRONT BUMPER, RH

main52133-52040i200209

52134ABRACKET, FRONT BUMPER, LH

main52134-52040i200209

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041×2i200209-200507

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13063×2i200209-200507

81128NUT, HEADLAMP

main81128-52330×4i200209

81128ASOCKET, HEADLAMP, BULB

main81128-1E430×2i200209

81131AUNIT, HEADLAMP, RH

main81130-52330i200209-200304

main81130-52331i200304

81144CCOVER, HEADLAMP SOCKET

main81139-1E340×2i200209

81171AUNIT, HEADLAMP, LH

main81170-52330i200209-200304

main81170-52331i200304

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9010906225

main90109-06225

9010906283

main90109-06283

91621J0612

main91621-J0612

13 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota WILL CYPHA

This section contains 13 genuine Toyota parts for the HEADLAMP system of the Toyota WILL CYPHA. Key components include: BRACKET, FRONT BUMPER, RH, BRACKET, FRONT BUMPER, LH, BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), NUT, HEADLAMP.
