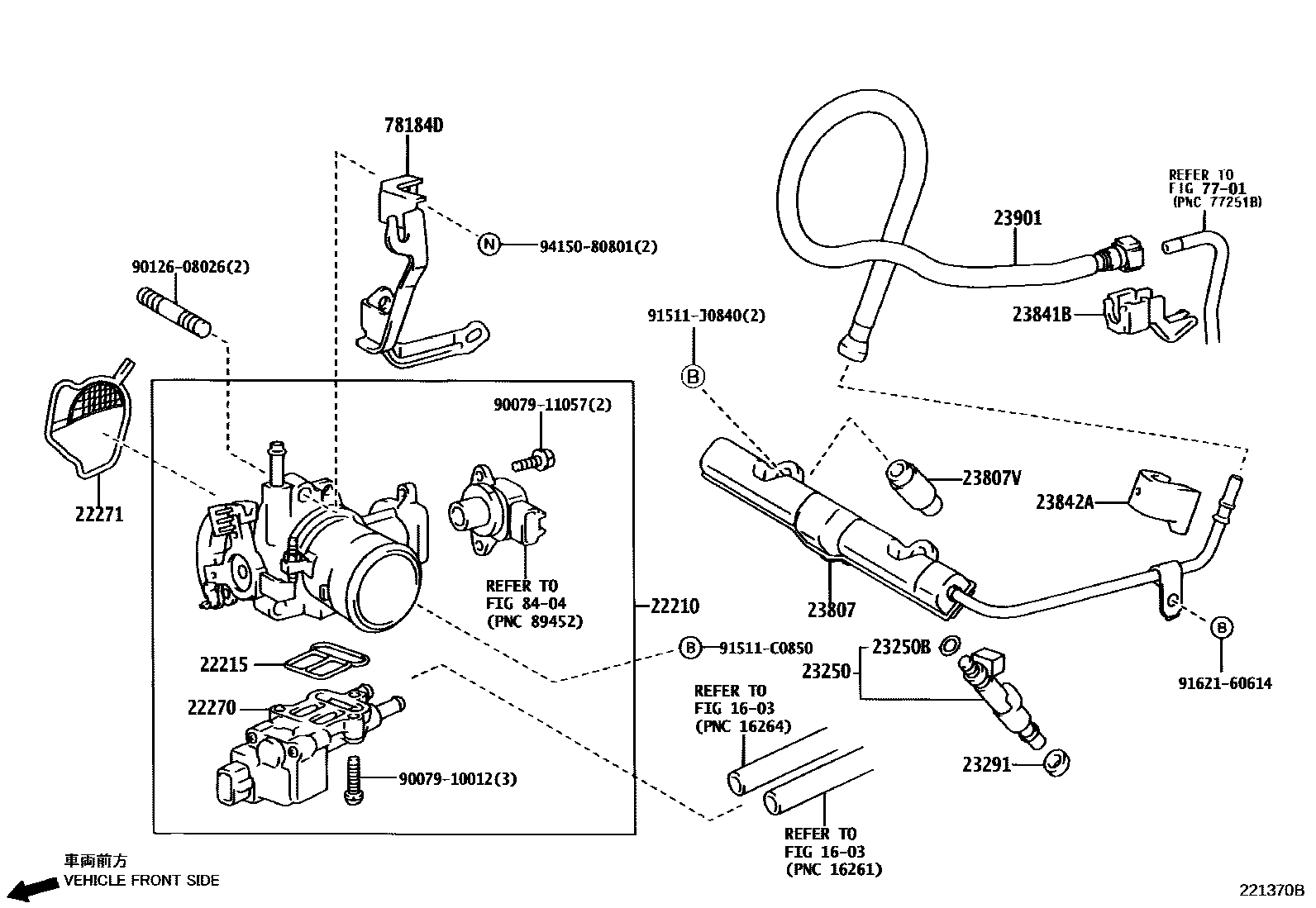

Toyota WILL CYPHA — FUEL INJECTION SYSTEM

0001 1 0002 1

1603

22210BODY ASSY, THROTTLE

main22210-21010i1NZFE,2NZFE..NCP7#200209-200507

22215GASKET, THROTTLE BODY COVER

main22215-7A680i1NZFE,2NZFE..NCP7#200209

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-21010i1NZFE,2NZFE..NCP7#200209-200303

sub22270-21011

main22270-21011i1NZFE,2NZFE..NCP7#200303

22271GASKET, THROTTLE BODY

main22271-21020i1NZFE,2NZFE..NCP7#200209-200301

main22271-21050i1NZFE,2NZFE..NCP7#200301-200507

23250INJECTOR ASSY, FUEL

main23209-21020i1NZFE,2NZFE..NCP7#200209

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024i1NZFE,2NZFE..NCP7#200209-200507

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i1NZFE,2NZFE..NCP7#200209-200507

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-21010i1NZFE,2NZFE..NCP7#200209

sub23807-21011

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-21010i1NZFE,2NZFE..NCP7#200209

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-28010i1NZFE,2NZFE..NCP7#200209-200507

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-22020i1NZFE,2NZFE..NCP7#200209

23901TUBE SUB-ASSY, FUEL

main23901-21060i1NZFE,2NZFE..NCP7#200209-200507

7701

78184DBRACKET, ACCELERATOR CONTROL CABLE

main78184-52011iNCP7#200209

8404

9007910012

main90079-10012

9007911057

main90079-11057

9012608026

main90126-08026

91511C0850

main91511-C0850

91511J0840

main91511-J0840

9162160614

main91621-60614

9415080801

main94150-80801

23 parts on this diagram · 2 diagrams in section
