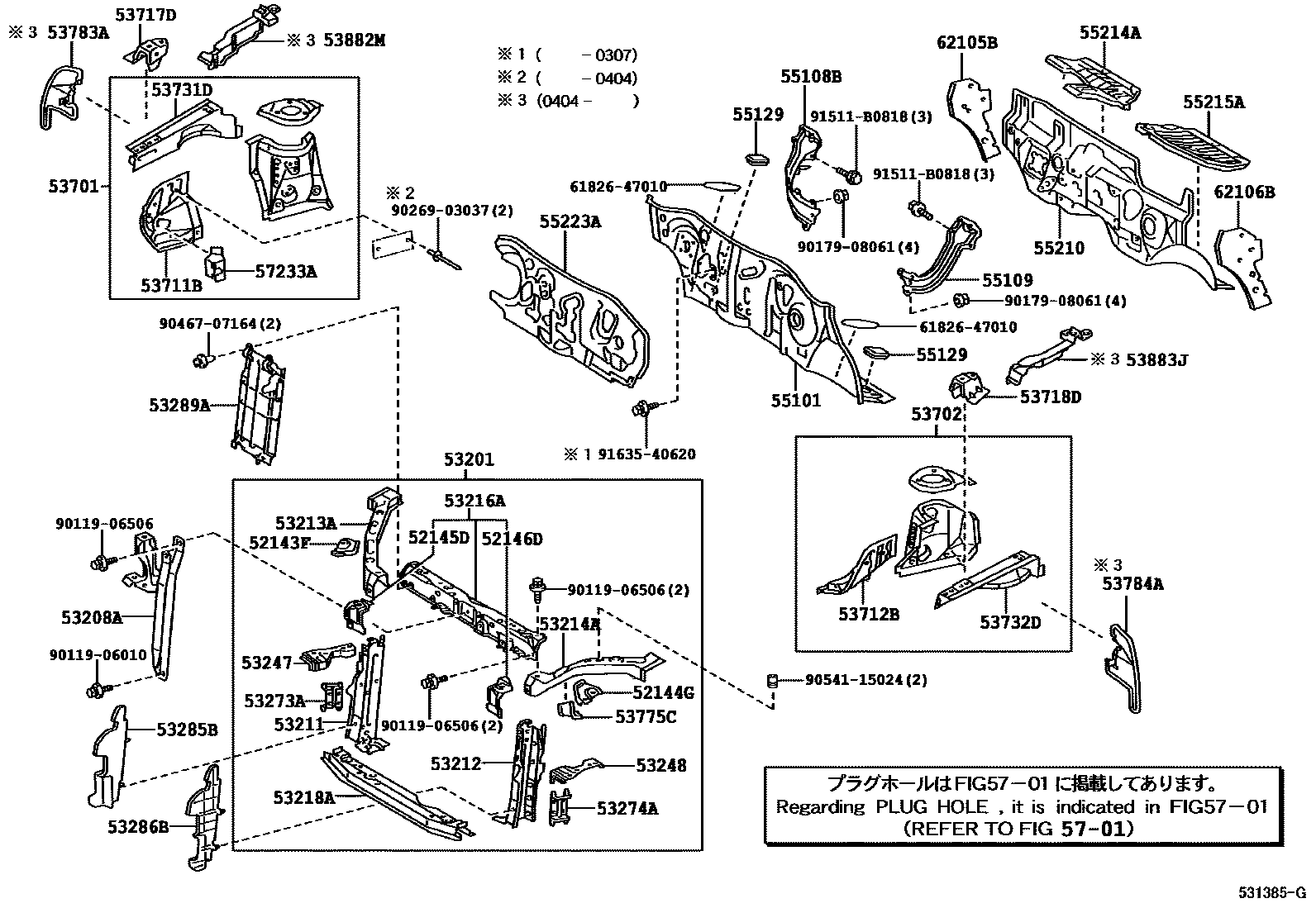

Toyota WILL CYPHA — FRONT FENDER APRON & DASH PANEL
52143FBRACKET, FRONT BUMPER SIDE, RH
52144GBRACKET, FRONT BUMPER SIDE, LH
52145DBRACKET, FRONT BUMPER SIDE MOUNTING, RH
52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH
53201SUPPORT SUB-ASSY, RADIATOR
53208ASUPPORT SUB-ASSY, HOOD LOCK
53211SUPPORT, RADIATOR, RH
sub53211-52041
53212SUPPORT, RADIATOR, LH
sub53212-52041
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53216ASUPPORT, RADIATOR, UPPER
53218ASUPPORT, RADIATOR, LOWER
53247BRACKET, HEADLAMP MOUNTING, INNER RH
53248BRACKET, HEADLAMP MOUNTING, INNER LH
53273AREINFORCEMENT, RADIATOR SUPPORT, RH
53274AREINFORCEMENT, RADIATOR SUPPORT, LH
53285BSEAL, RADIATOR SIDE AIR, NO.1
53286BSEAL, RADIATOR SIDE AIR, NO.2
53289ACOVER, RADIATOR SUPPORT OPENING
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53717DGUSSET, FENDER APRON, RH
53718DGUSSET, FENDER APRON, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
sub53731-52010
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
sub53732-52010
53775CBRACKET, COOL AIR INTAKE DUCT MOUNTING
53783AINSULATOR, APRON FRONT FENDER, RH
53784AINSULATOR, APRON FRONT FENDER, LH
53882MSEAL, FRONT FENDER
53883JSEAL, FRONT FENDER, LH
55108BBRACE SUB-ASSY, DASH TO FRAME, RH
55109BRACE SUB-ASSY, DASH TO FRAME, LH
55129COVER, DASH PANEL HOLE
55210INSULATOR ASSY, DASH PANEL
55214APAD, DASH PANEL INSULATOR, NO.2
55215APAD, DASH PANEL INSULATOR, NO.3
55223AINSULATOR, DASH PANEL, OUTER
5701
62105BINSULATOR SUB-ASSY, COWL SIDE, RH
62106BINSULATOR SUB-ASSY, COWL SIDE, LH
6182647010PLATE, QUARTER INNER PANEL, LOWER FRONT LH
main61826-47010
9011906010
main90119-06010
9011906506
main90119-06506
9017908061
main90179-08061
9026903037
main90269-03037
9046707164
main90467-07164
9054115024
main90541-15024
91511B0818
main91511-B0818
9163540620
main91635-40620
53 parts on this diagram · 1 diagram in section
