Toyota WILL CYPHA — FRONT DOOR WINDOW REGULATOR & HINGE

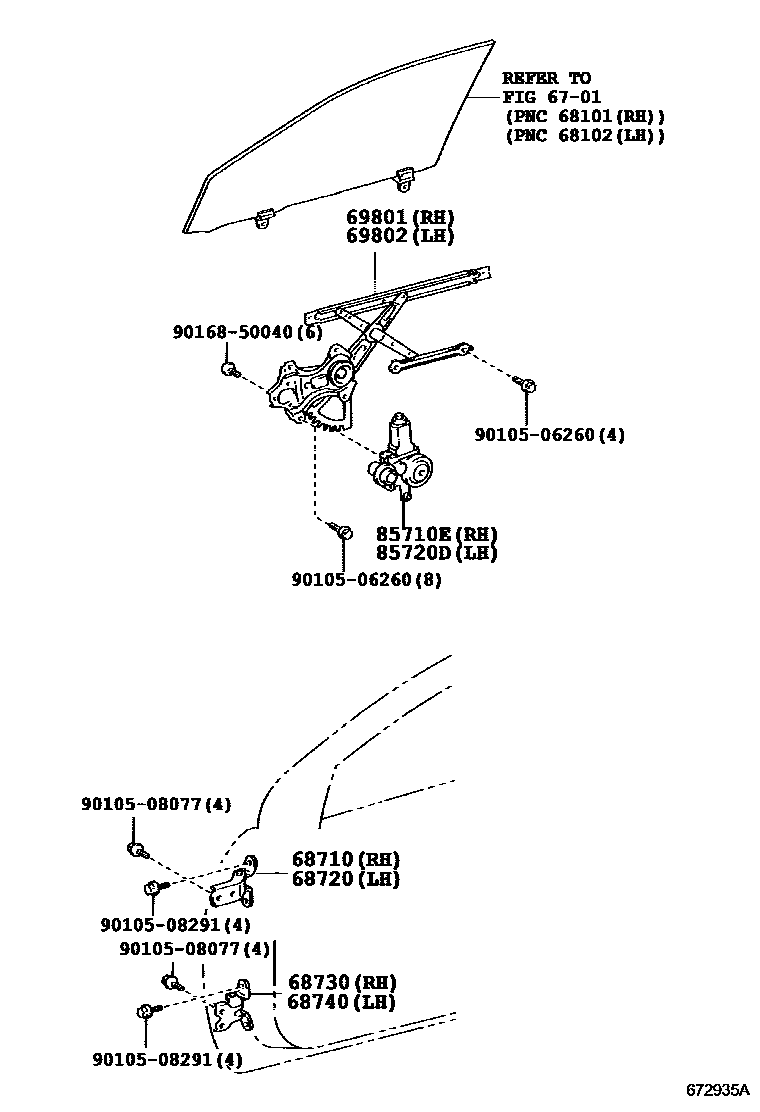

Parts diagram

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-52010i200209-200507

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-52010i200209-200507

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-52010i200209-200507

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-52010i200209-200507

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-52070i200209

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-52070i200209

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-52110i200209

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-52110i200209

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

9016850040

main90168-50040

13 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota WILL CYPHA

This section contains 13 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota WILL CYPHA. Key components include: FRONT DOOR PANEL & GLASS, HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH.
