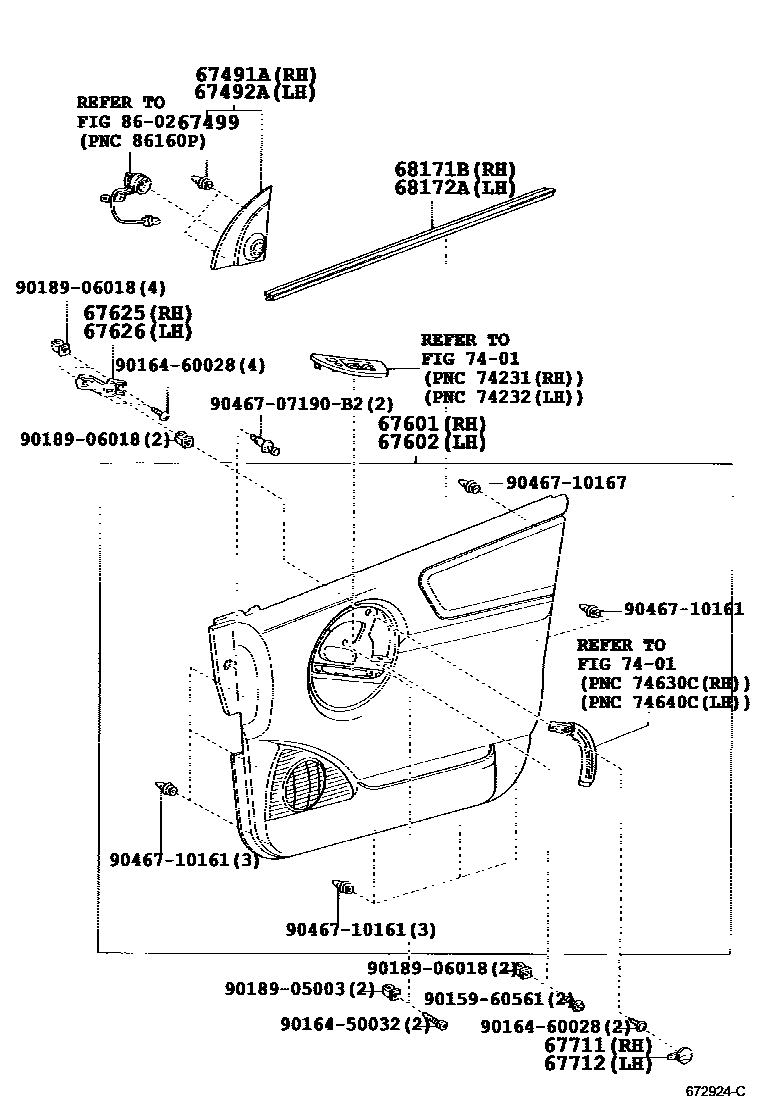

Toyota WILL CYPHA — FRONT DOOR PANEL & GLASS

0001 1 0002 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-52090-C0iNCP7#200209-200507

BLACK,TRIM2#

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-52090-C0iNCP7#200209-200507

BLACK,TRIM2#

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67771-30070iNCP7#200209

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-5C020-C0iNCP7#200209-200507

BLACK,TRIM2#

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-5C020-C0iNCP7#200209-200507

BLACK,TRIM2#

67625BRACKET, FRONT DOOR TRIM, RH

main67625-52050iNCP7#200209

67626BRACKET, FRONT DOOR TRIM, LH

main67625-52050iNCP7#200209

67711COVER, FRONT DOOR TRIM, RH

main67711-52010-C0iNCP7#200209-200507

BLACK,TRIM2#

67712COVER, FRONT DOOR TRIM, LH

main67712-52010-C0iNCP7#200209-200507

BLACK,TRIM2#

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-52120iNCP7#200209-200507

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-52110iNCP7#200209-200507

7401

8602

9015960561

main90159-60561

9016450032

main90164-50032

9016460028

main90164-60028

9018905003

main90189-05003

9018906018

main90189-06018

9046707190B2

main90467-07190B2

9046710161

main90467-10161

9046710167

main90467-10167

21 parts on this diagram · 2 diagrams in section
