Toyota WILL CYPHA — FRONT DOOR LOCK & HANDLE

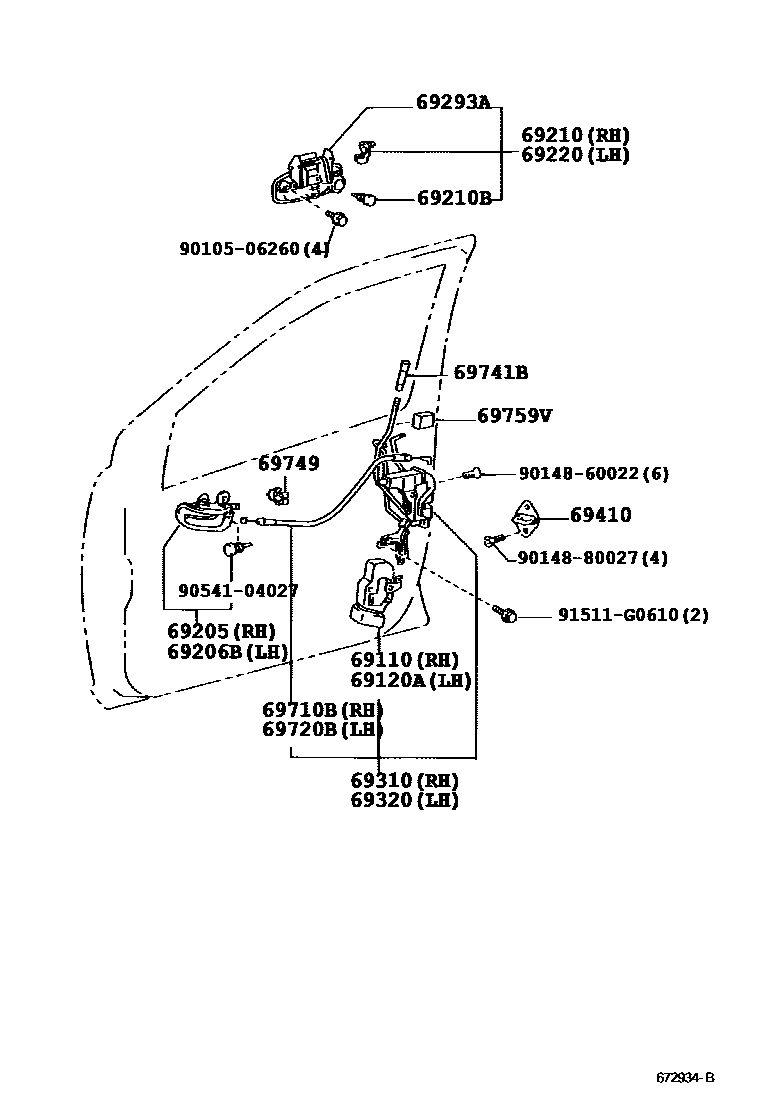

Parts diagram

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-52020i200209

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-52020i200209

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-52010-C0i200209-200507

BLACK,TRIM2#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-52010-C0i200209-200507

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-21010-A0i200209-200507

SUPER WHITE 2,040

main69210-21010-D2i200209-200507

SUPER RED II,3E5

main69210-21010-E1i200308-200507

ORANGE PEARL MICA,4R7

main69210-21010-F1i200209-200507

LT.YELLOW,592

main69210-21010-G4i200209-200308

GREEN,6T0

main69210-21010-H0i200209-200507

LT. AQUA M.M.,772

main69210-21010-J4i200209-200507

BLUE,8Q8

main69210-21010-J5i200209-200507

DK.BLUE,8Q9

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04018×12i200209

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69240-21020-A0i200209-200507

SUPER WHITE 2,040

main69240-21020-D1i200209-200507

SUPER RED II,3E5

main69240-21020-E0i200308-200507

ORANGE PEARL MICA,4R7

main69240-21020-F0i200209-200507

LT.YELLOW,592

main69240-21020-G1i200209-200308

GREEN,6T0

main69240-21020-H0i200209-200507

LT. AQUA M.M.,772

main69240-21020-J2i200209-200507

BLUE,8Q8

main69240-21020-J3i200209-200507

DK.BLUE,8Q9

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030×4i200209

69310LOCK ASSY, FRONT DOOR, RH

main69030-52280i200209

69320LOCK ASSY, FRONT DOOR, LH

main69040-52210i200209

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-47010×2i200209

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-52090×2i200209

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-52090×2i200209

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-52010×2i200209

69749CLAMP, FRONT DOOR LOCK LINK

main69749-52010×2i200209-200311

main69749-52020×2i200311

69759VSILENCER, FRONT DOOR LOCK LINK

main69759-12110×2i200209

9010506260

main90105-06260

9014860022

main90148-60022

9014880027

main90148-80027

9054104027

main90541-04027

91511G0610

main91511-G0610

21 parts on this diagram · 1 diagram in section
