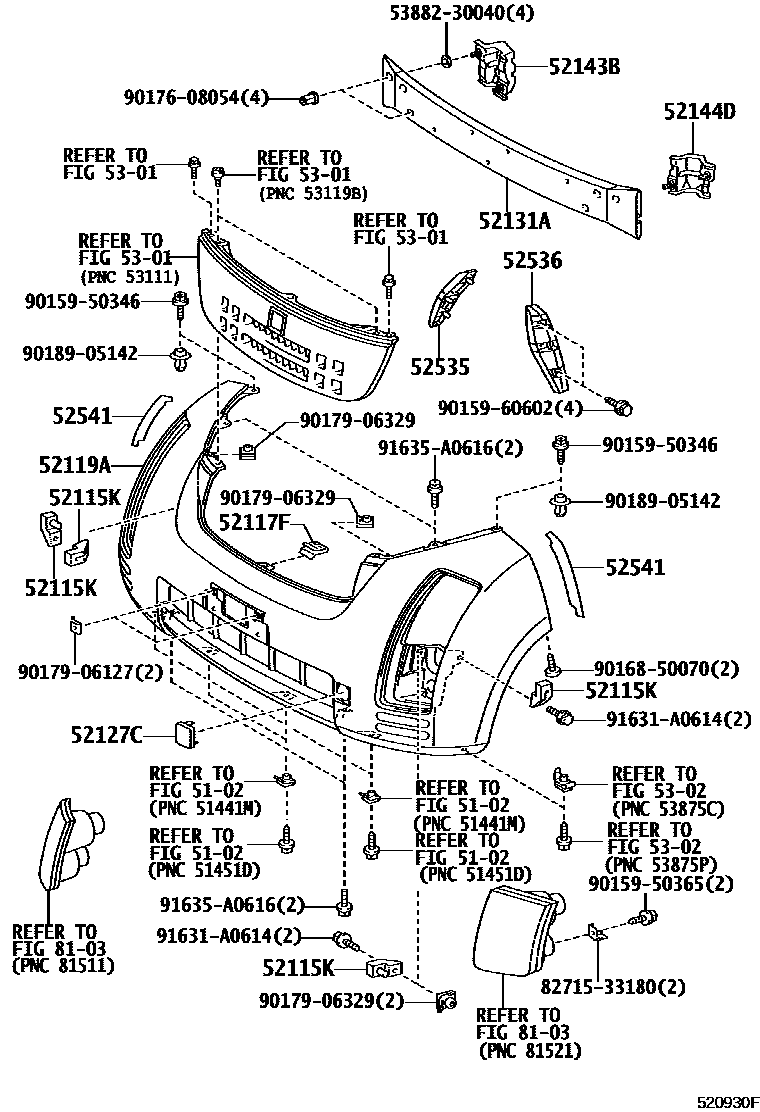

Toyota WILL CYPHA — FRONT BUMPER & BUMPER STAY
5102SUSPENSION CROSSMEMBER & UNDER COVER
52115KSUPPORT, FRONT BUMPER SIDE
52117FSUPPORT, FRONT BUMPER, UPPER
52119ACOVER, FRONT BUMPER
SUPER WHITE 2,040
SUPER RED II,3E5
ORANGE PEARL MICA,4R7
LT.YELLOW,592
GREEN,6T0
LT. AQUA M.M.,772
BLUE,8Q8
DK.BLUE,8Q9
52127CCOVER, FRONT BUMPER HOLE
SUPER WHITE 2,040
SUPER RED,3E5
ORANGE PEARL MICA,4R7
LT. YELLOW,592
GREEN,6T0
LT. AQUA M.M.,772
BLUE,8Q8
DK. BLUE,8Q9
52131AREINFORCEMENT, FRONT BUMPER
52143BBRACKET, FRONT BUMPER SIDE
52144DBRACKET, FRONT BUMPER SIDE, LH
52535RETAINER, FRONT BUMPER SIDE, RH
52536RETAINER, FRONT BUMPER SIDE, LH
52541PROTECTOR, FRONT BUMPER
5301RADIATOR GRILLE
5302HOOD & FRONT FENDER
8103FRONT TURN SIGNAL LAMP
5388230040PACKING, FRONT FENDER MAIN
main53882-30040
8271533180BRACKET,WIRING HARNESS CLAMP
main82715-33180
9015950346
main90159-50346
9015950365
main90159-50365
9015960602
main90159-60602
9016850070
main90168-50070
9017608054
main90176-08054
9017906127
main90179-06127
9017906329
main90179-06329
9018905142
main90189-05142
91631A0614
main91631-A0614
91635A0616
main91635-A0616
26 parts on this diagram · 1 diagram in section
FRONT BUMPER & BUMPER STAY for Toyota WILL CYPHA
This section contains 26 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota WILL CYPHA. Key components include: SUSPENSION CROSSMEMBER & UNDER COVER, SUPPORT, FRONT BUMPER SIDE, SUPPORT, FRONT BUMPER, UPPER, COVER, FRONT BUMPER, COVER, FRONT BUMPER HOLE.
