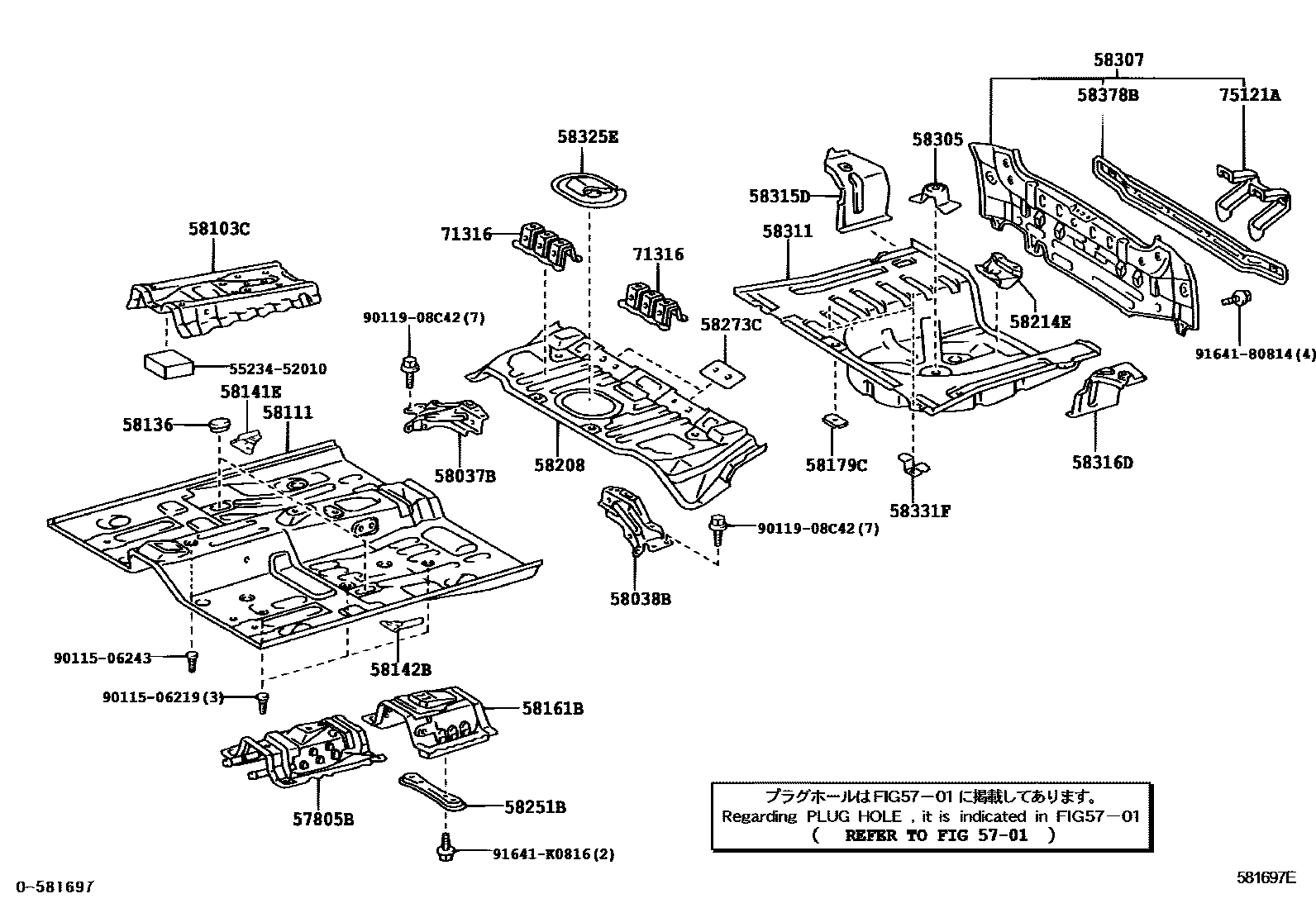

Toyota WILL CYPHA — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

5701

57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH

main57805-52030iNCP75200209

main57805-52060iNCP70200209

58037BREINFORCE, CENTER PILLAR TO FLOOR, RH

main57671-52070iNCP75200209

main57671-52080iNCP70200209

58038BREINFORCE, CENTER PILLAR TO FLOOR, LH

main57672-52070iNCP75200209

main57672-52080iNCP70200209

58103CREINFORCEMENT SUB-ASSY, FRONT FLOOR, FRONT

main58103-52011iNCP70200209

sub58103-52013

main58103-52021iNCP75200209

sub58103-52022

58111PAN, FRONT FLOOR

main58111-52901iNCP75200209

main58111-52906iNCP70200209

58136COVER, FRONT FLOOR HOLE

main58136-52010×2iNCP7#200209

58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH

main58141-52010iNCP7#200209-200507

58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH

main58142-52010iNCP7#200209-200507

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-52010iNCP70200209

58179CBRACKET, CLAMP FLOOR

main58179-48010iNCP70200209

58208PAN, CENTER FLOOR

main58211-52022iNCP70200209-200505

sub90333-25001

sub90950-01958

main58211-52023iNCP70200505

main58211-52041iNCP75200209

58214EBRACKET, JACK SUPPORT

main58214-52010iNCP70200209

58251BBRACE, FLOOR PANEL, FRONT

main58251-52010iNCP70200209

58273CREINFORCEMENT, BELT ANCHOR TO CENTER FLOOR

main58273-52010×2iNCP70200209

main58273-52070iNCP75200209

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-32010iNCP70200209

sub58351-33010

main58351-52010iNCP75200209

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-52220iNCP70200209-200507

main58307-52230iNCP75200209-200507

58311PAN, REAR FLOOR

main58311-52021iNCP75200209-200505

sub90333-25001

sub90950-01960

main58311-52022iNCP75200505

sub58311-52023

sub90950-01955

main58311-52120iNCP70200209-200211

main58311-52121iNCP70200211

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-52010iNCP70200209

main58315-52020iNCP75200209

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-52010iNCP70200209

main58316-52020iNCP75200209

58325ECOVER, REAR FLOOR SERVICE HOLE

main58320-52010iNCP75200209

main58325-52010iNCP70200209

58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3

main58331-10010×2iNCP70200209

main58331-10011×5iNCP75200209

58378BREINFORCEMENT, BODY LOWER BACK PANEL

main58378-52070iNCP70200209-200507

71316BRACKET, REAR SEAT SUPPORT

main71316-52010×2iNCP70200209

75121ABRACKET, REAR LICENSE PLATE

main75121-52040iNCP7#200209

5523452010SHEET, DASH PANEL INSULATOR, NO.2

main55234-52010

9011506219

main90115-06219

9011506243

main90115-06243

9011908C42

main90119-08C42

9164180814

main91641-80814

91641K0816

main91641-K0816

31 parts on this diagram · 2 diagrams in section
