Toyota WILL CYPHA — ENGINE OIL PUMP
15100APIN, RING(FOR OIL PUMP SET)
15100BRING, O(FOR OIL PUMP)
15100CSEAL(FOR OIL PUMP)
15100QSENSOR, CRANK POSITION
15104STRAINER SUB-ASSY, OIL
15104EBOLT, STUD(FOR OIL STRAINER)
15131VALVE, OIL PUMP RELIEF
15132SPRING, OIL PUMP RELIEF VALVE
15133PLUG, OIL PUMP RELIEF VALVE
15149GASKET, OIL STRAINER FLANGE
9010908283
main90109-08283
9012608038
main90126-08038
9017908254
main90179-08254
9034453006
main90344-53006
9151180620
main91511-80620
91511C0635
main91511-C0635
9155180616
main91551-80616
91551C0830
main91551-C0830
9164180612
main91641-80612
9415010641
main94150-10641

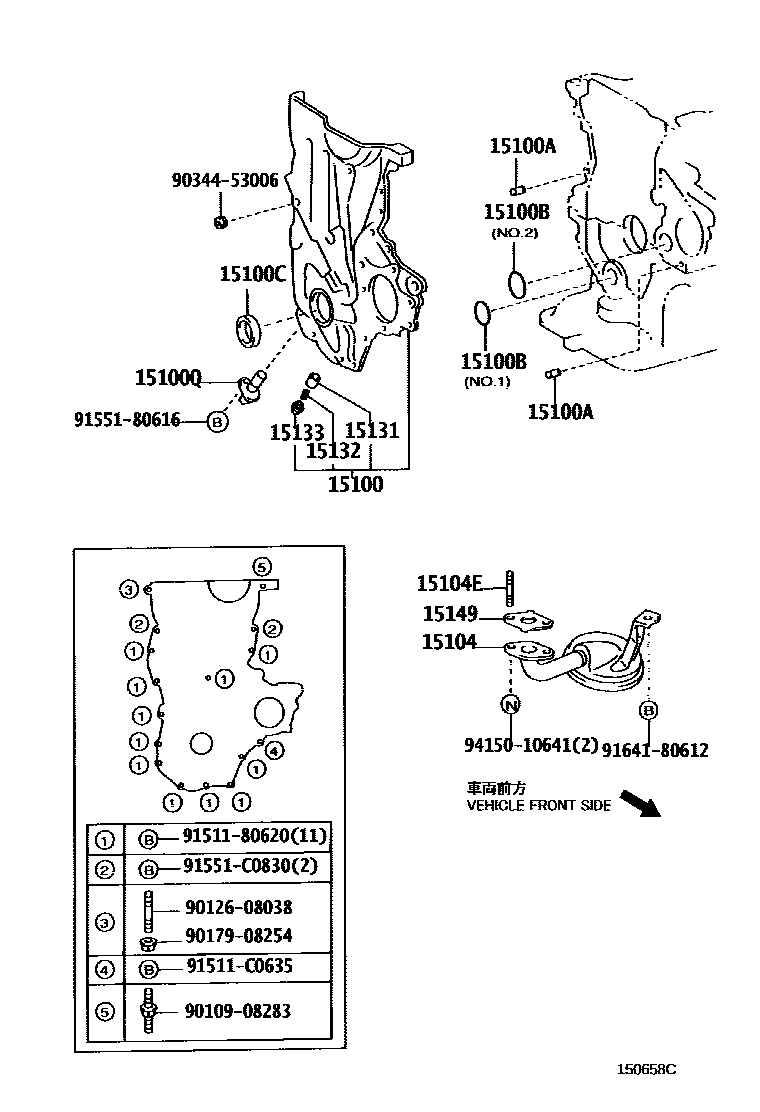

21 parts on this diagram · 1 diagram in section
ENGINE OIL PUMP for Toyota WILL CYPHA
This section contains 21 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota WILL CYPHA. Key components include: PUMP ASSY, OIL, PIN, RING(FOR OIL PUMP SET), RING, O(FOR OIL PUMP), SEAL(FOR OIL PUMP), SENSOR, CRANK POSITION.
