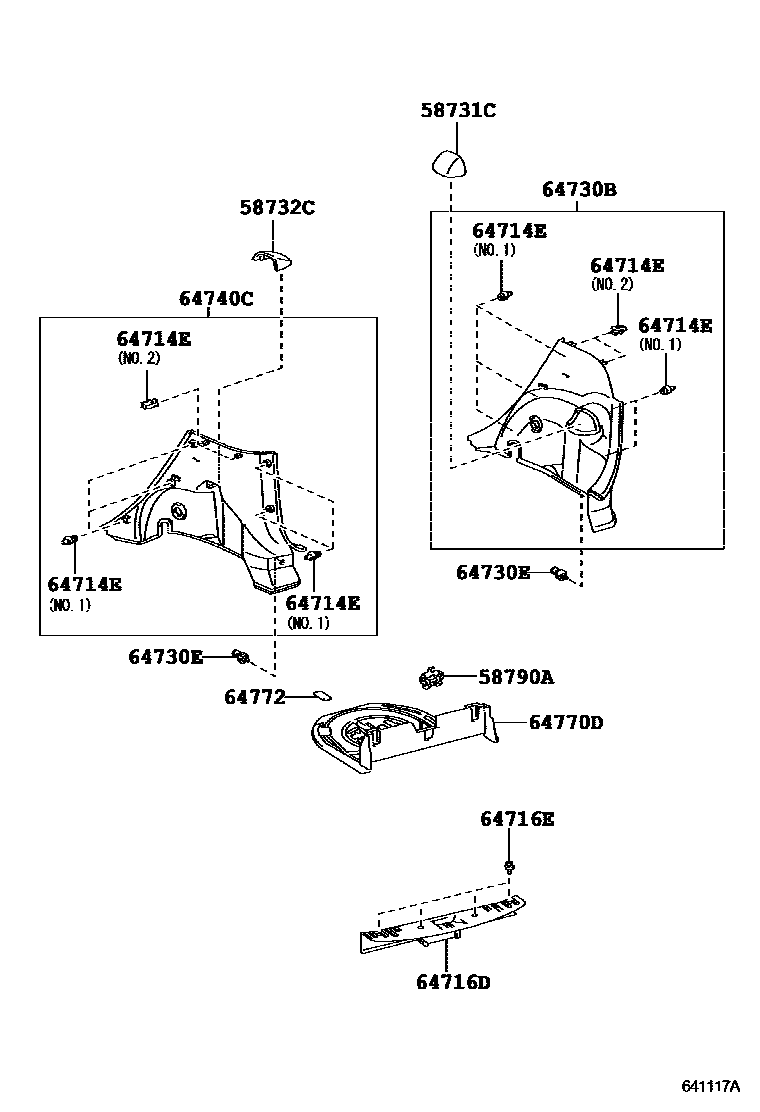

Toyota WILL CYPHA — DECK BOARD & DECK TRIM COVER

58731CCAP, REAR ABSORBER

main58731-52010-C0i200209-200507

BLACK,TRIM2#

main58731-52040-C0i200209-200507

BLACK,TRIM2#

58732CCAP, REAR ABSORBER

main58731-52040-C0i200209-200507

BLACK,TRIM2#

main58732-52010-C0i200209-200507

BLACK,TRIM2#

58790ACARRIER ASSY, JACK

main58790-52010i200209

main58790-52020i200209

64714ECLIP(FOR DECK TRIM SIDE COVER)

main90467-10161×10i200209

main90467-12080×4i200209

64716DCOVER, DECK TRIM, REAR

main64716-52080-C0i200209-200507

BLACK,TRIM2#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-07152-C0×4i200209-200507

BLACK,TRIM2#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-52160-C0i200209-200507

BLACK,TRIM2#

main64730-52170-C0i200209-200507

BLACK,TRIM2#

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90467-07152-C0×2i200209-200507

BLACK,TRIM2#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-52230-C0i200209-200507

BLACK,TRIM2#

main64740-52240-C0i200209-200507

BLACK,TRIM2#

64770DCOVER ASSY, SPARE WHEEL

main64771-52011i200209-200405

main64771-52190i200406

64772PAD, SPARE WHEEL COVER

main64772-16100×2i200209

11 parts on this diagram · 2 diagrams in section

DECK BOARD & DECK TRIM COVER for Toyota WILL CYPHA

This section contains 17 genuine Toyota parts for the DECK BOARD & DECK TRIM COVER system of the Toyota WILL CYPHA. Key components include: BOARD, DECK, NO.1, BOARD, DECK, NO.2, CAP, REAR ABSORBER, CARRIER ASSY, JACK.
