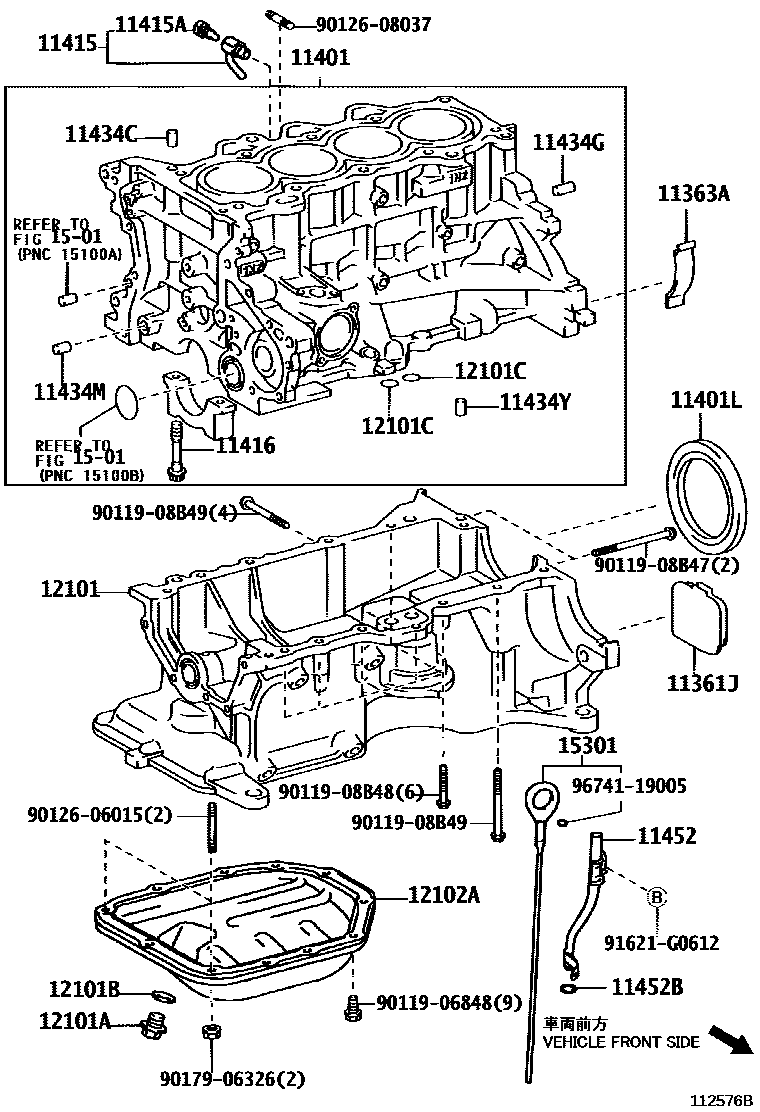

Toyota WILL CYPHA — CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
11363ACOVER, FLYWHEEL HOUSING SIDE
11401BLOCK SUB-ASSY, CYLINDER
11401LSEAL, ENGINE REAR OIL
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
11434GPIN, STRAIGHT(FOR END PLATE)
11434MPIN, STRAIGHT(FOR CHAIN TENSIONER)
11434YPIN, STRAIGHT(FOR OIL PAN)
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12101CRING, O(FOR OIL PAN)
12102APAN SUB-ASSY, OIL, NO.2
1501ENGINE OIL PUMP
15301GAGE SUB-ASSY, OIL LEVEL
9011906848
main90119-06848
9011908B47
main90119-08B47
9011908B48
main90119-08B48
9011908B49
main90119-08B49
9012606015
main90126-06015
9012608037
main90126-08037
9017906326
main90179-06326
91621G0612
main91621-G0612
9674119005
main96741-19005
29 parts on this diagram · 1 diagram in section
CYLINDER BLOCK for Toyota WILL CYPHA
This section contains 29 genuine Toyota parts for the CYLINDER BLOCK system of the Toyota WILL CYPHA. Key components include: COVER, FLYWHEEL HOUSING UNDER, COVER, FLYWHEEL HOUSING SIDE, BLOCK SUB-ASSY, CYLINDER, SEAL, ENGINE REAR OIL, COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK).
