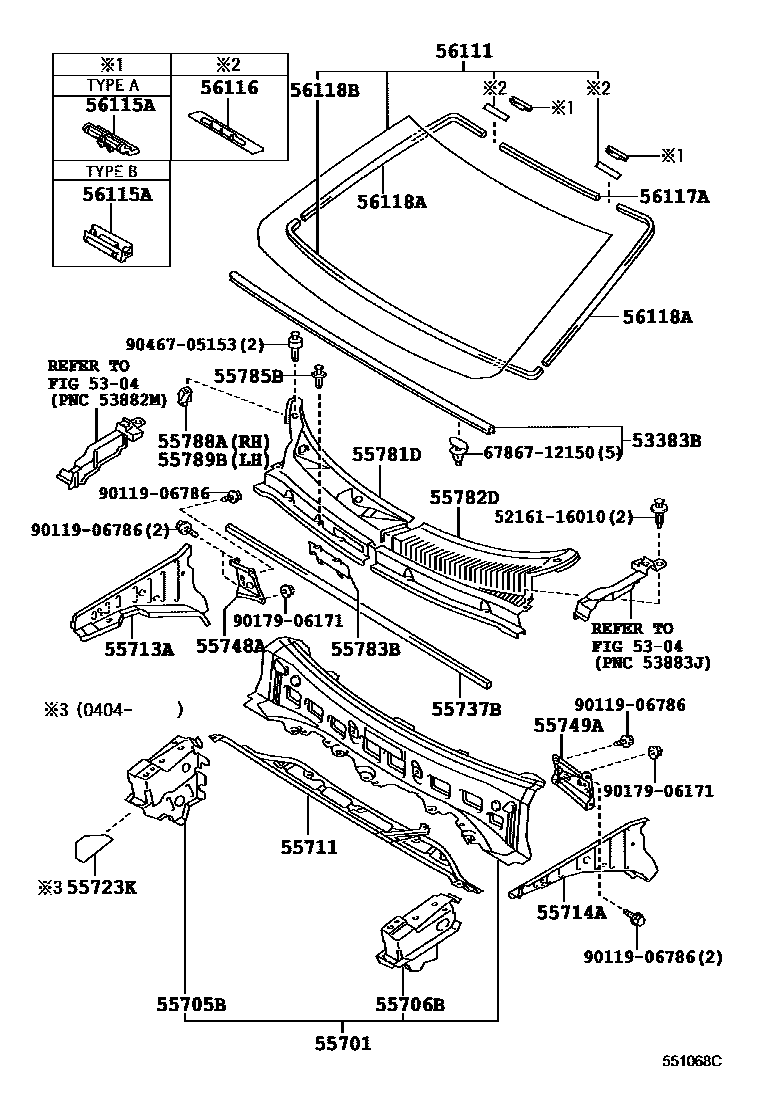

Toyota WILL CYPHA — COWL PANEL & WINDSHIELD GLASS
5304FRONT FENDER APRON & DASH PANEL
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55711PANEL, COWL TOP, OUTER
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55723KSHUTTER, FRONT AIR
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55748ABRACE, COWL TOP INNER TO PILLAR
55749ABRACE, COWL TOP INNER TO PILLAR, LH
55781DLOUVER, COWL TOP VENTILATOR, RH
55782DLOUVER, COWL TOP VENTILATOR, LH
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55785BSHEET, COWL TOP VENTILATOR LOUVER
55788APROTECTOR, COWL TOP VENTILATOR LOUVER
55789BPROTECTOR, COWL TOP VENTTINATOR LOUVER, NO.2
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116SPACER, WINDSHIELD GLASS
56118ADAM, WINDOW GLASS ADHESIVE, NO.2
5216116010CUSHION, REAR BUMPER GUARD, NO.1
main52161-16010
6786712150CLIP, DOOR WEATHERSTRIP
main67867-12150
9011906786
main90119-06786
9017906171
main90179-06171
9046705153
main90467-05153
29 parts on this diagram · 1 diagram in section
COWL PANEL & WINDSHIELD GLASS for Toyota WILL CYPHA
This section contains 29 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota WILL CYPHA. Key components include: FRONT FENDER APRON & DASH PANEL, SEAL, HOOD TO COWL TOP, PANEL SUB-ASSY, COWL, PANEL SUB-ASSY, COWL TOP SIDE, RH, PANEL SUB-ASSY, COWL TOP SIDE, LH.
