Toyota WILL CYPHA — ANTENNA

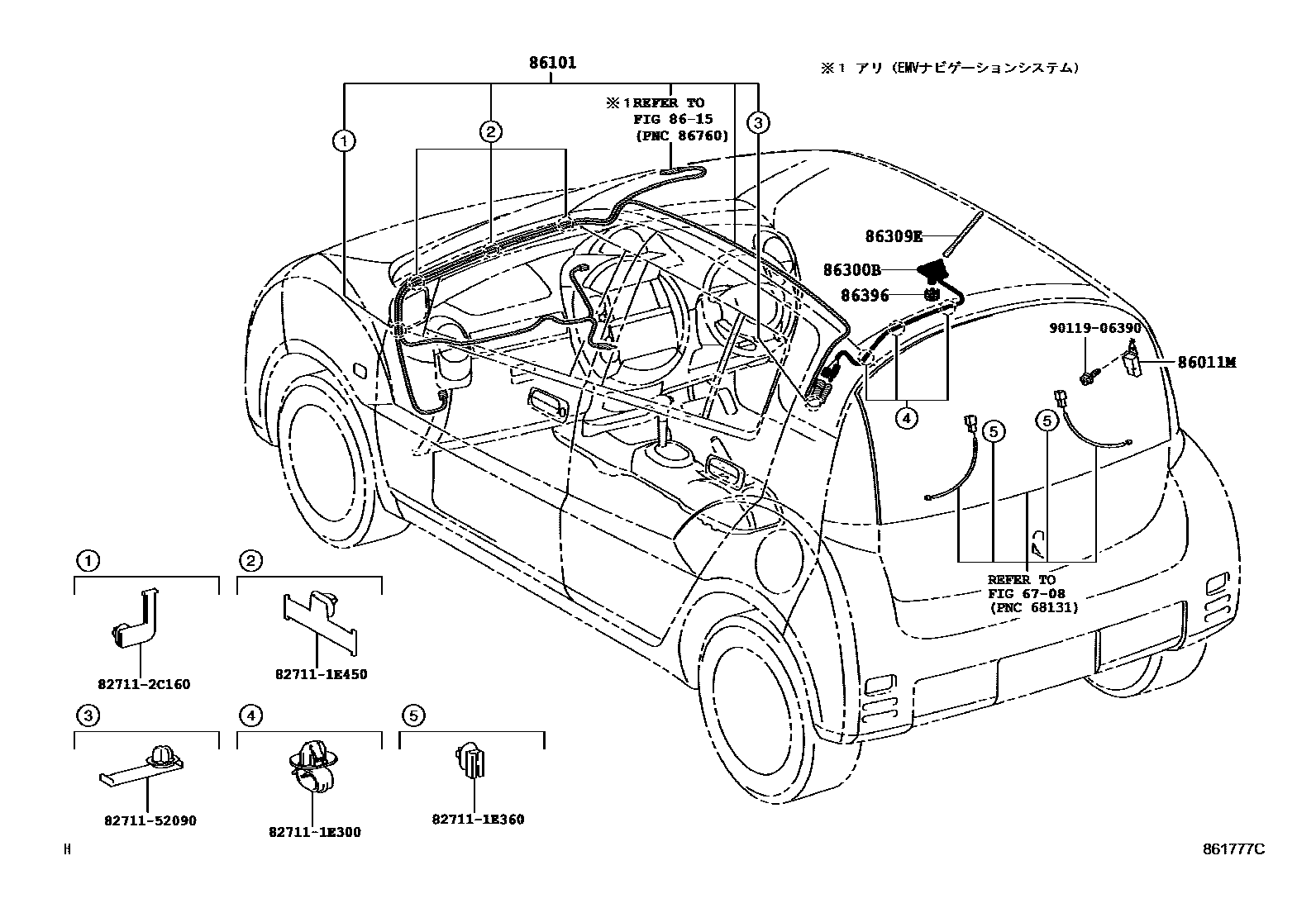

Parts diagram

6708BACK DOOR PANEL & GLASS

→ Go to FIG 67-08

86011MFILTER, NOISE

main90980-04148i200209

86101CORD SUB-ASSY, ANTENNA

main86101-52220supersedes 86101-52090i200209

8615TELEPHONE & MAYDAY

→ Go to FIG 86-15

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-52080i200209

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-20310i200209

86396NUT, ANTENNA

main86396-20040i200209

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

827111E450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E450

827112C160WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C160

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

9011906390

main90119-06390

13 parts on this diagram · 1 diagram in section

ANTENNA for Toyota WILL CYPHA

This section contains 13 genuine Toyota parts for the ANTENNA system of the Toyota WILL CYPHA. Key components include: BACK DOOR PANEL & GLASS, FILTER, NOISE, CORD SUB-ASSY, ANTENNA, TELEPHONE & MAYDAY, ANTENNA ASSY, AMPLIFIER, NO.1.
