Toyota WILL CYPHA — ALTERNATOR

27020ALTERNATOR ASSY

main27060-21110i200209-200306

main27060-21111i200306

27020EBOLT(FOR ALTERNATOR)

main90105-10075i200209

27330ROTOR ASSY, ALTERNATOR

main27330-16390×2i200209

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-22050×2i200209

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-75060i200209

27411PULLEY, ALTERNATOR

main27411-11060i200209-200305

main27411-21030i200305

27700AREGULATOR ASSY, GENERATOR

main27700-21040i200209

9415080600

main94150-80600

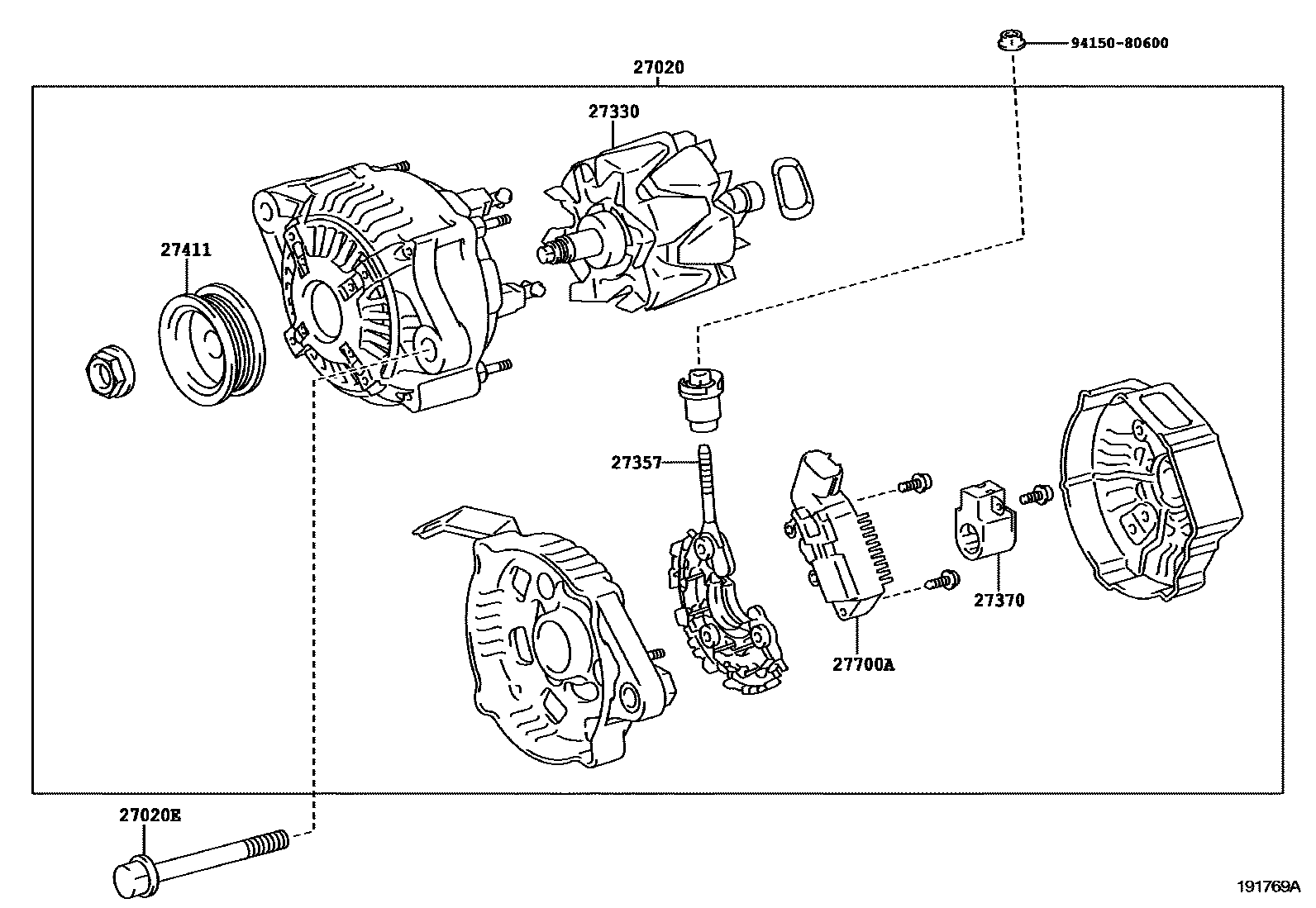

8 parts on this diagram · 1 diagram in section

ALTERNATOR for Toyota WILL CYPHA

This section contains 8 genuine Toyota parts for the ALTERNATOR system of the Toyota WILL CYPHA. Key components include: ALTERNATOR ASSY, BOLT(FOR ALTERNATOR), ROTOR ASSY, ALTERNATOR, HOLDER, ALTERNATOR, W/RECTIFIER, HOLDER ASSY, ALTERNATOR BRUSH.
