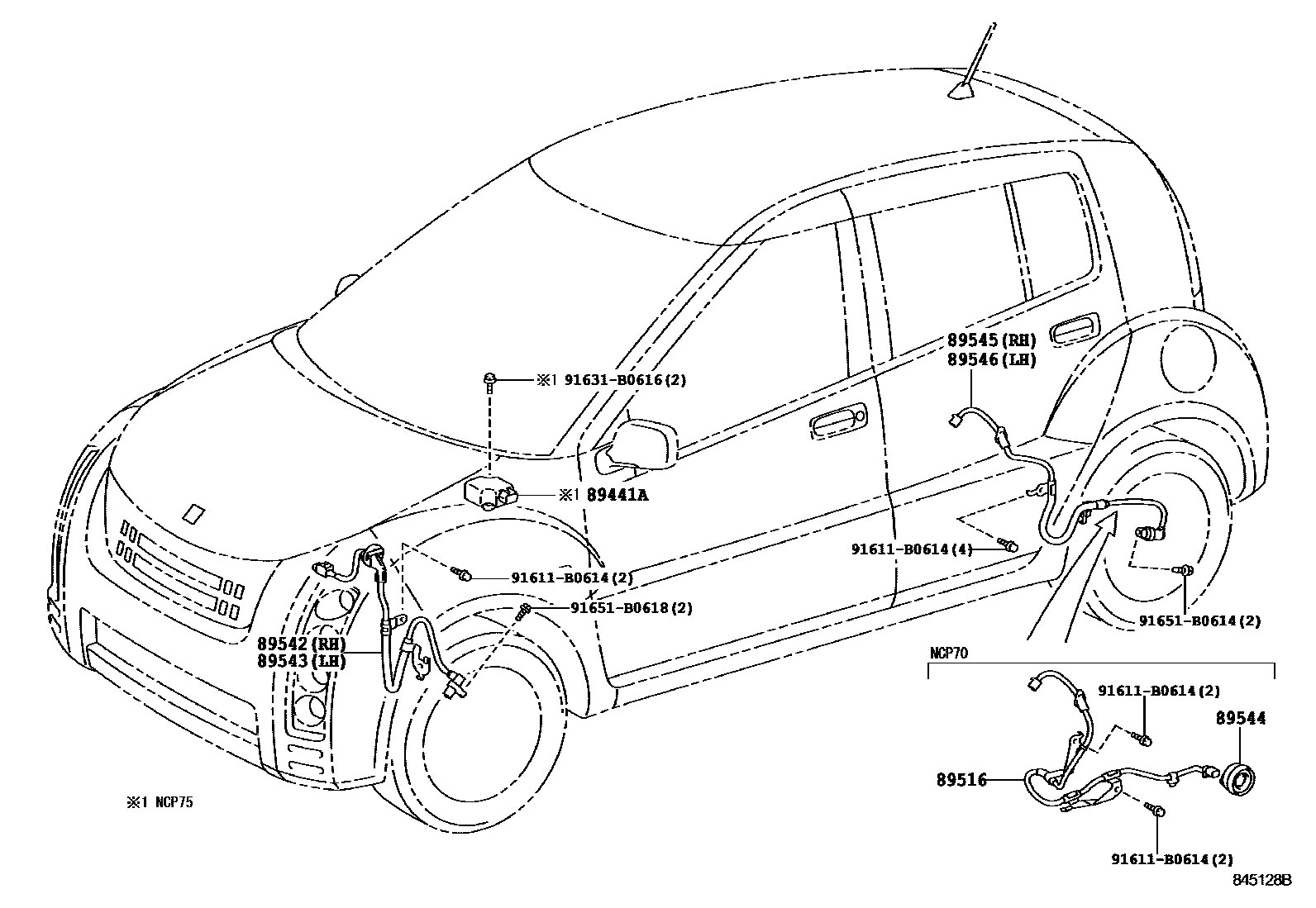

Toyota WILL CYPHA — ABS & VSC

89441ASENSOR, DECELERATION

main89441-52010iNCP75200209

89516WIRE, SKID CONTROL SENSOR

main89516-52010iNCP70200209

main89516-52020iNCP70200209

89542SENSOR, SPEED, FRONT RH

main89542-52010iNCP7#200209-200507

89543SENSOR, SPEED, FRONT LH

main89543-52010iNCP7#200209-200507

89544SENSOR, SKID CONTROL

main89544-12010×2iNCP70200301-200507

main89544-52010×2iNCP70200209-200301

main89544-52020×2iNCP70200209-200301

main89544-52030×2iNCP70200301-200507

89545SENSOR, SPEED, REAR RH

main89545-52010iNCP75200209-200507

89546SENSOR, SPEED, REAR LH

main89546-52010iNCP75200209-200507

91611B0614

main91611-B0614

91631B0616

main91631-B0616

91651B0614

main91651-B0614

91651B0618

main91651-B0618

11 parts on this diagram · 1 diagram in section
