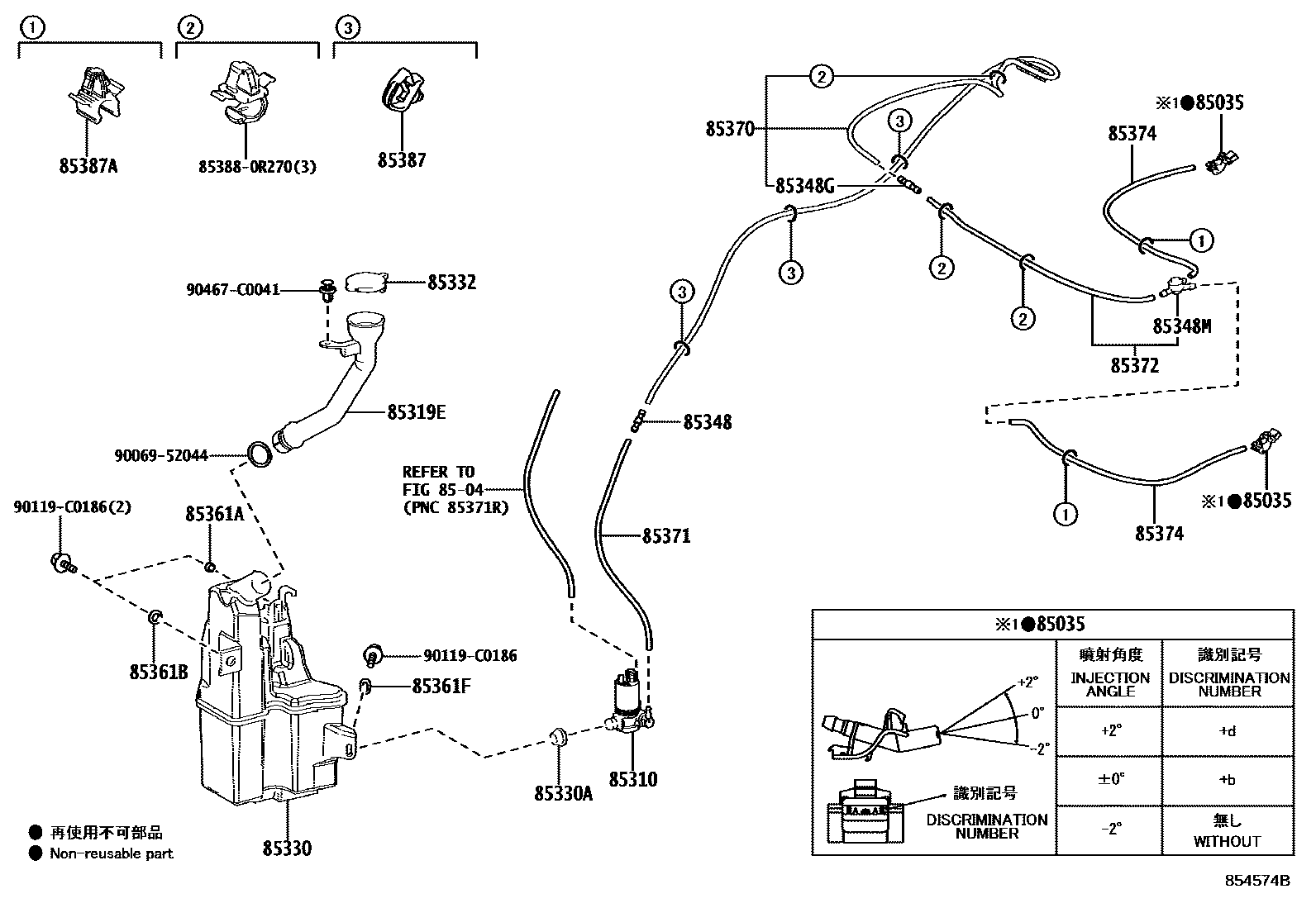

Toyota WILDLANDER PHEV — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2i202105

ANGLE 0

main85381-30230×2i202105-202304

ANGLE -2

main85381-30240×2i202105-202304

ANGLE +2

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0R060i202105-202304

85319EINLET WASHER

main85319-0R110i202105-202304

85330JAR ASSY, WINDSHIELD WASHER

main85315-0R110i202105-202304

85330ABUSH, WINDSHIELD WASHER JAR

main85336-02840i202105-202304

85332CAP, WINDSHIELD WASHER JAR

main85316-02840i202105-202304

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-05050i202105-202304

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-05050i202105-202304

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85377-0R280i202105

85361ABRACKET, WINDSHIELD WASHER, NO.1

main85337-02840i202105-202304

85361BBRACKET, WINDSHIELD WASHER, NO.2

main85338-02840i202105-202304

85361FBRACKET, WINDSHIELD WASHER, NO.3

main85339-02840i202105-202304

85370HOSE ASSY, WINDSHIELD WASHER

main85370-0R290i202105-202304

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-46102i202105-202304

*H,L=380

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90069-46100i202105-202304

L=530

85374HOSE, WINDSHIELD WASHER (FROM NOZZLE TO NOZZLE)

main90068-33349×2i202105-202304

L=490

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-0D090×3i202105-202304

85387ACLAMP, WASHER, NO.2

main90469-07011×2i202105-202304

(J)

main90469-C0015×2i202105

(L)

853880R270CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85388-0R270

9006952044

main90069-52044

90119C0186

main90119-C0186

90467C0041

main90467-C0041

23 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota WILDLANDER PHEV

This section contains 23 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota WILDLANDER PHEV. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, INLET WASHER, JAR ASSY, WINDSHIELD WASHER.
