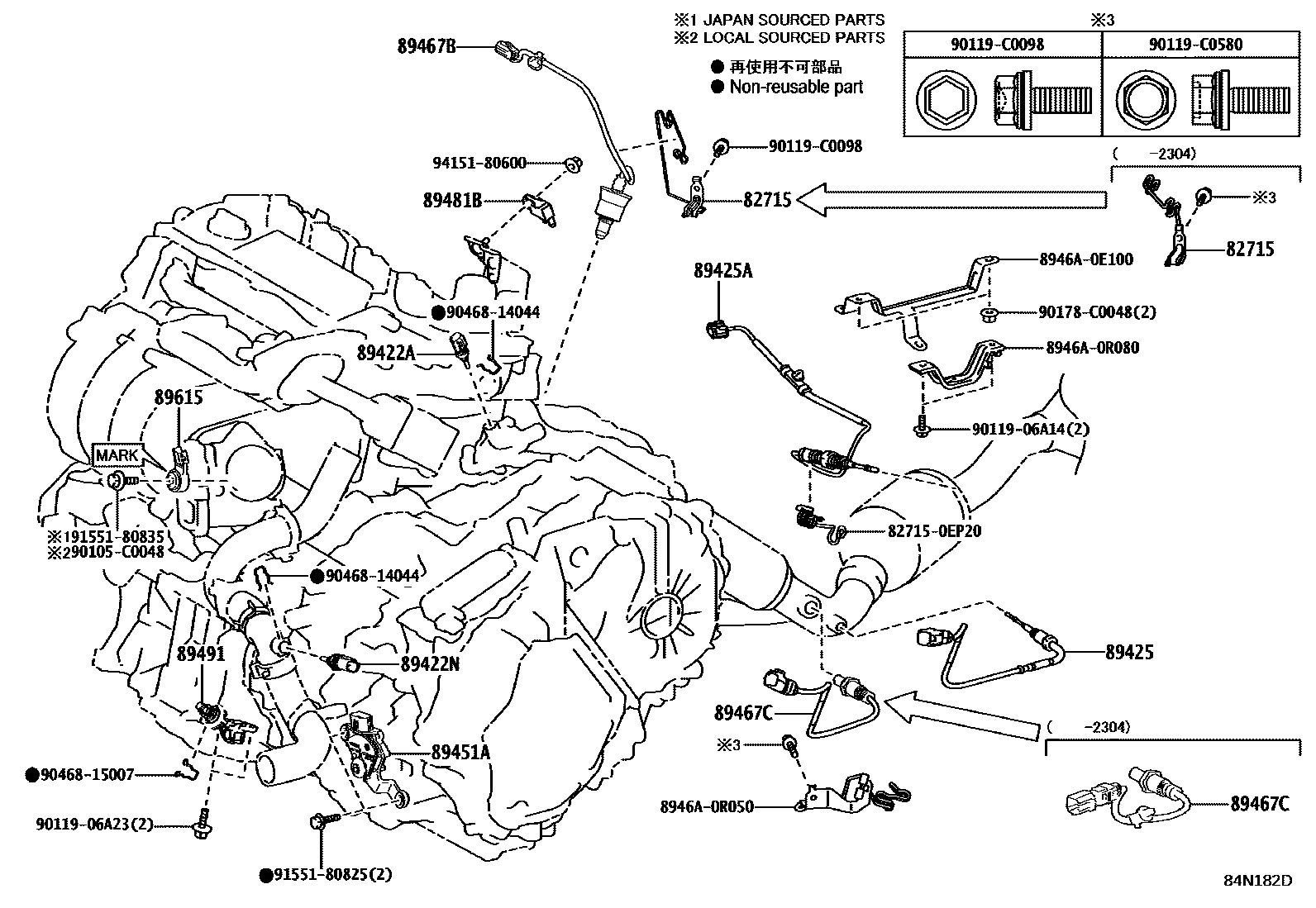

Toyota WILDLANDER PHEV — SWITCH & RELAY & COMPUTER
89422ASENSOR, WATER TEMPERATURE
89422NSENSOR, WATER TEMPERATURE, NO.2
89425SENSOR, EXHAUST GAS TEMPERATURE
89425ASENSOR, EXHAUST GAS TEMPERATURE, NO.2
89451ASENSOR, SHIFT LEVER POSITION
89467CSENSOR, AIR FUEL RATIO, NO.2
89481BSENSOR, DIFFERENTIAL PRESSURE
89491SENSOR, ENGINE OIL LEVEL
89615SENSOR, KNOCK CONTROL
MARK 89615-0E010
827150EP20BRACKET,WIRING HARNESS CLAMP
main82715-0EP20
8946A0E100BRACKET, EXHAUST SENSOR CLAMP
main8946A-0E100
8946A0R050BRACKET, EXHAUST SENSOR CLAMP
main8946A-0R050
8946A0R080BRACKET, EXHAUST SENSOR CLAMP
main8946A-0R080
90105C0048
main90105-C0048
9011906A14
main90119-06A14
9011906A23
main90119-06A23
90119C0098
main90119-C0098
90119C0580
main90119-C0580
90178C0048
main90178-C0048
9046814044
main90468-14044
9046815007
main90468-15007
9155180825
main91551-80825
9155180835
main91551-80835
9415180600
main94151-80600
26 parts on this diagram · 10 diagrams in section
SWITCH & RELAY & COMPUTER for Toyota WILDLANDER PHEV
This section contains 189 genuine Toyota parts for the SWITCH & RELAY & COMPUTER system of the Toyota WILDLANDER PHEV. Key components include: RELAY, IGB, RELAY, IGP, SENSOR ASSY, BATTERY STATE, HOLDER, BATTERY CURRENT SENSOR, INSTRUMENT PANEL & GLOVE COMPARTMENT.
