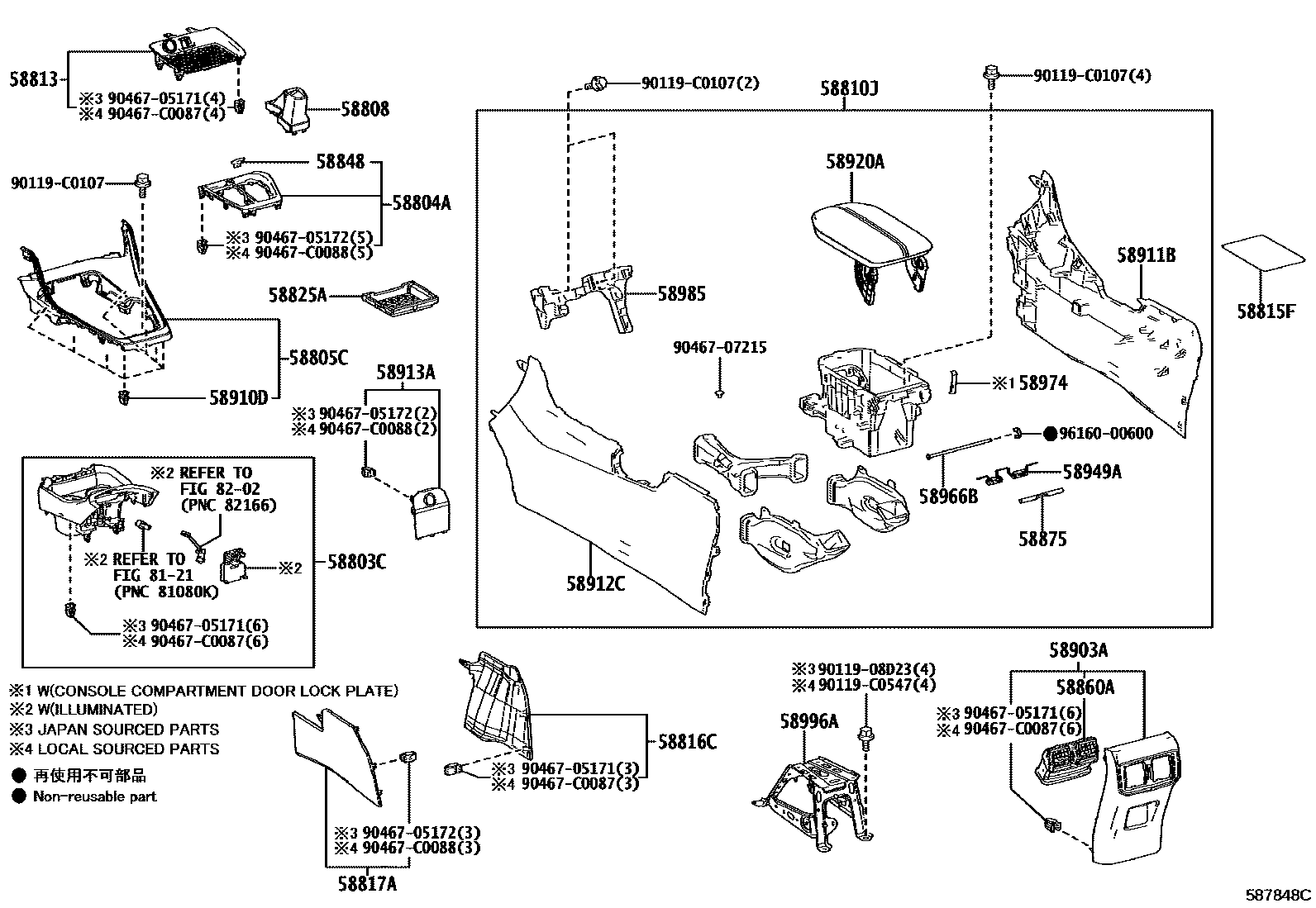

Toyota WILDLANDER PHEV — CONSOLE BOX & BRACKET

58803CBOX SUB-ASSY, CONSOLE CUP HOLDER

main58803-0R060-C2i202105-202304

BLACK/SLIVER,TRIM2#

main58803-0R080-C1i202105

BLACK,TRIM2#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-0R220i202105-202304

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-0R100-B0i202105

SMOKE SILVER METALLIC,TRIM20

main58805-0R100-B1i202105-202304

SILVER,TRIM2#

main58805-0R100-B1i202105

SILVER,TRIM20

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-0R050-C1i202105-202304

BLACK,TRIM2#

58810JBOX ASSY, CONSOLE

main58810-0R060-C0i202105-202304

BLACK,TRIM2#

main58810-0R070-C1i202105

BLACK,TRIM2#

58813BOX, CONSOLE, UPPER

main58813-0R090-C1i202105

BLACK,TRIM2#

main58813-0R100-C1i202105-202304

BLACK,TRIM2#

58815FCARPET, CONSOLE BOX

main58815-0R090i202105-202304

58816CINSERT, CONSOLE BOX, FRONT NO.1

main58816-0R070-C0i202105-202304

BLACK,TRIM2#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-0R070-C0i202105-202211

BLACK,TRIM2#

main58817-0R071-C0i202211-202304

BLACK,TRIM2#

58825APOCKET, CONSOLE BOX

main58825-0R030i202105

58848COVER, SHIFT LEVER HOLE

main58848-0R040i202105-202304

58860AREGISTER ASSY, CONSOLE BOX

main58860-0R030-C0i202105-202304

BLACK,TRIM2#

58875SPACER, CONSOLE BOX

main58875-0R030i202105-202304

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-0R130-C0i202105-202304

BLACK,TRIM2#

58910DCLIP(FOR CONSOLE BOX)

main90467-05171i202211-202304

(J)

main90467-05171i202105-202211

main90467-C0087i202211-202304

(L)

58911BPANEL, BOX, NO.1

main58911-0R080-C0i202105-202304

BLACK,TRIM2#

58912CPANEL, BOX SIDE, NO.2

main58912-0R070-C0i202105-202304

BLACK,TRIM2#

58913APANEL, BOX, NO.3

main58913-0R030i202105-202304

main58913-0R100i202304

58920AARMREST ASSY, REAR CONSOLE

main58920-0R050-C0i202105-202304

BLACK,TRIM2#

main58920-0R060-C1i202105

BLACK,TRIM2#

58949ASPRING, CONSOLE BOX MOUNTING BRACKET

main58949-0R050i202105-202304

main58949-0R070i202105

58966BPIN, CONSOLE COMPARTMENT DOOR STOPPER

main58966-0R040i202105-202304

58974PLATE, CONSOLE COMPARTMENT DOOR LOCK

main58974-0R070i202105

58985RETAINER, CONSOLE BOX

main58985-0R100i202105-202304

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-0R090i202105-202304

8121INTERIOR LAMP

→ Go to FIG 81-21

8202WIRING & CLAMP

→ Go to FIG 82-02

9011908D23

main90119-08D23

90119C0107

main90119-C0107

90119C0547

main90119-C0547

9046705171

main90467-05171

9046705172

main90467-05172

9046707215

main90467-07215

90467C0087

main90467-C0087

90467C0088

main90467-C0088

9616000600

main96160-00600

35 parts on this diagram · 1 diagram in section

CONSOLE BOX & BRACKET for Toyota WILDLANDER PHEV

This section contains 35 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota WILDLANDER PHEV. Key components include: BOX SUB-ASSY, CONSOLE CUP HOLDER, PANEL SUB-ASSY, CONSOLE, UPPER, PANEL SUB-ASSY, CONSOLE, UPPER REAR, COVER SUB-ASSY, SHIFTING HOLE, BOX ASSY, CONSOLE.
