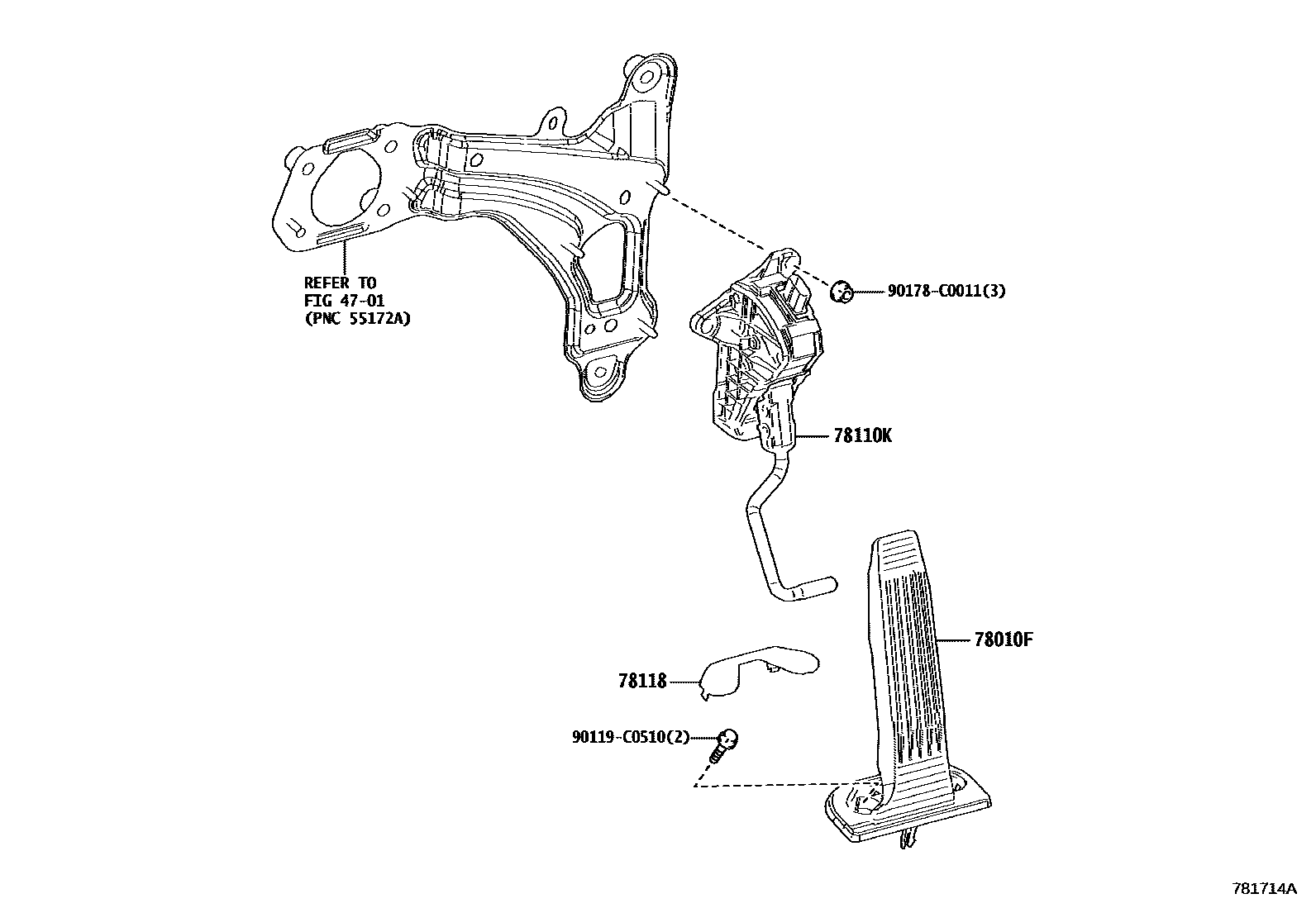

Toyota WILDLANDER PHEV — ACCELERATOR LINK

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78010FPEDAL ASSY, ACCELERATOR

main78101-06020i202105-202112

main78101-06021i202201-202304

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-06171i202105-202304

78118PAD, ACCELERATOR PEDAL

main78117-06020i202105-202304

90119C0510

main90119-C0510

90178C0011

main90178-C0011

6 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota WILDLANDER PHEV

This section contains 6 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota WILDLANDER PHEV. Key components include: BRAKE PEDAL & BRACKET, PEDAL ASSY, ACCELERATOR, ROD ASSY, ACCELERATOR PEDAL(W/SENSOR), PAD, ACCELERATOR PEDAL.
