Toyota WILDLANDER (GTMC) — PRE-COLLISION SYSTEM

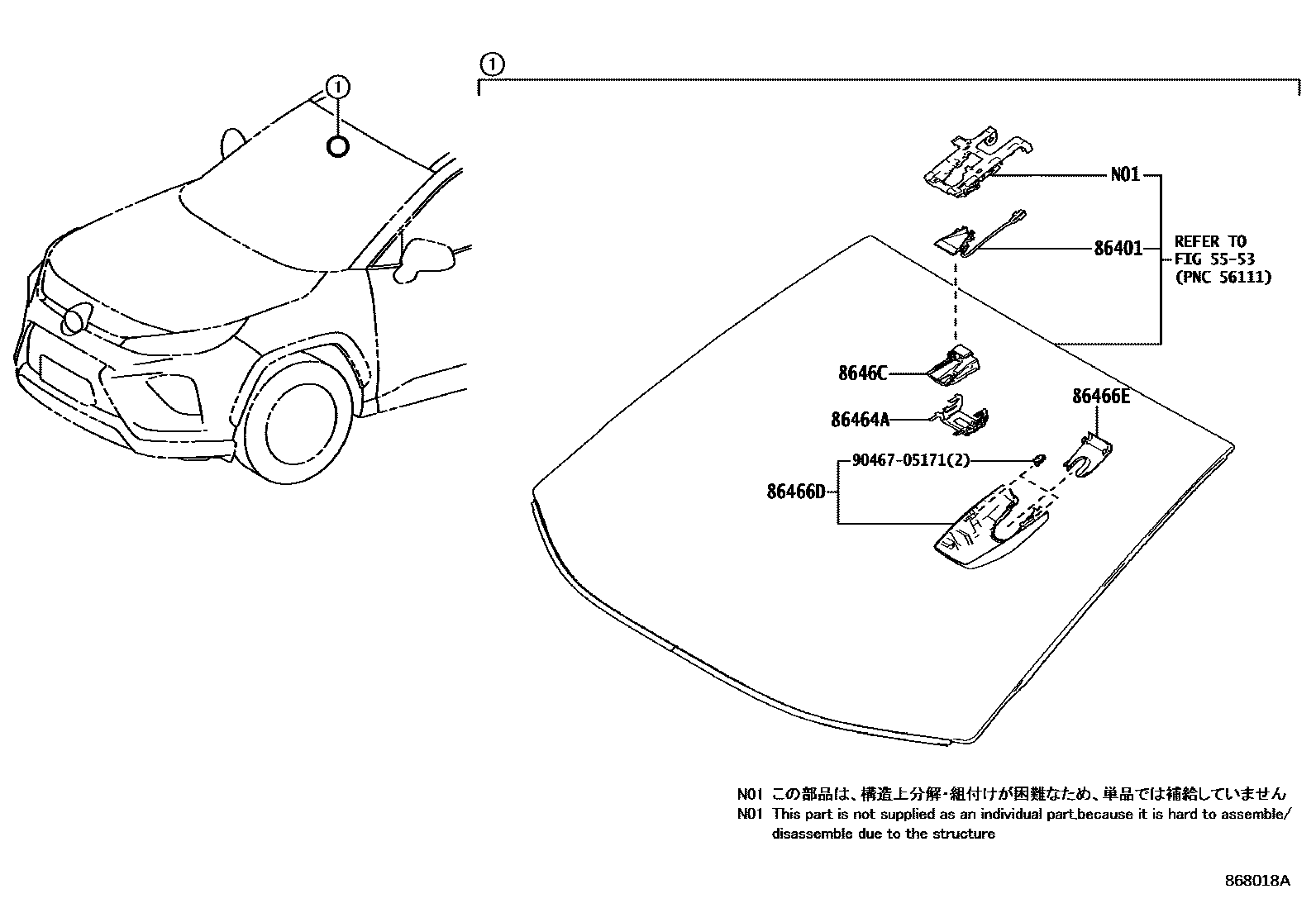

5553

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-0R030iAXAL5#,MXAA5#..G,M202304-202405

main86401-42041iMXAA54..M;AXAH5#,MXAA52..G,M202004-202208

86464ALATCH, FORWARD RECOGNITION

main86464-0E010iAXAL5#,MXAA5#..G,M202304-202405

main86464-26010iMXAA54..M;AXAH5#,MXAA52..G,M202004-202101

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-0R090iMXAA54..M;AXAH5#,MXAA52..G,M202208-202303

main86466-42060iMXAA54..M;AXAH5#,MXAA52..G,M202004-202207

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-42070iMXAA54..M;AXAH5#,MXAA52..G,M202004-202207

main86466-42130iAXAH52,MXAA5#..A202004-202207

main86467-0R030iAXAL5#..M;MXAA5#..G,M202304-202405

main86467-0R040iAXAL5#..G202304-202405

8646CCAMERA, FORWARD RECOGNITION

main8646C-0R050iMXAA54..M;AXAH5#,MXAA52..G,M202006-202303

main8646C-0R100iAXAL5#,MXAA5#..G,M202304-202405

main8646C-0R101iMXAA52;AXAL5#,MXAA54..G,M202405-202406

*614

main8646C-0R102iMXAA52;AXAL5#,MXAA54..G,M202406-202501

*614

main8646C-0R240iMXAA52;AXAL5#,MXAA54..G,M202501

*614

main8646C-42031iMXAA54..M;AXAH5#,MXAA52..G,M202004-202005

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section
