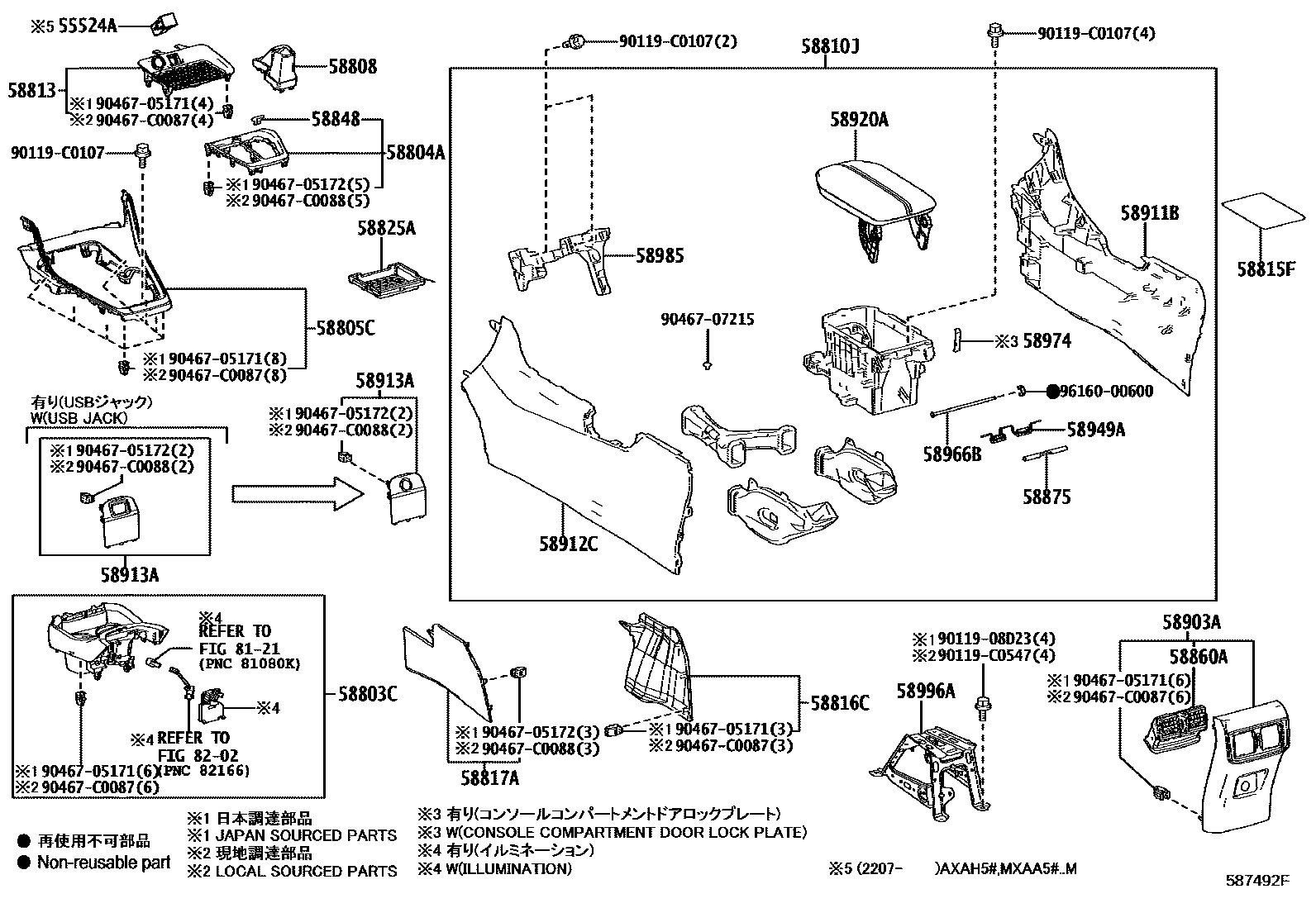

Toyota WILDLANDER (GTMC) — CONSOLE BOX & BRACKET
55524ACOVER, SWITCH BASE HOLE
BLACK
58803CBOX SUB-ASSY, CONSOLE CUP HOLDER
BLACK/SLIVER,TRIM1#,2#
BLACK/SLIVER,TRIM2#
BLACK/SLIVER,TRIM0#,2#
BLACK/SLIVER,TRIM0#,1#,2#
BLACK/PRUSSIA,TRIM1#,2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
58804APANEL SUB-ASSY, CONSOLE, UPPER
58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR
CKD COLOR,TRIM10,20
CKD COLOR,TRIM00,20
SMOKE SILVER METALLIC,TRIM1#,2#
SILVER,TRIM10,20
SILVER,TRIM2#
SILVER,TRIM0#,1#,2#
SILVER,TRIM0#,2#
SILVER,TRIM00,20
SILVER,TRIM1#,2#
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM0#,1#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM1#,2#
58810JBOX ASSY, CONSOLE
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM10,20
BLACK,TRIM1#,2#
BLACK/SAND BROWN,TRIM10,20
BLACK/FROMAGE,TRIM0#
BLACK/FROMAGE,TRIM00
BLACK/BLACK,TRIM2#
BLACK/BLACK,TRIM20
BLACK/FROMAGE/SAND BROWN,TRIM00
BLACK/BLACK/SAND BROWN,TRIM20
58813BOX, CONSOLE, UPPER
WIRELESS CHARGER-WITH,BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
BLACK,TRIM1#,2#
PRUSSIA,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
58815FCARPET, CONSOLE BOX
58816CINSERT, CONSOLE BOX, FRONT NO.1
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,2#
58825APOCKET, CONSOLE BOX
58848COVER, SHIFT LEVER HOLE
58860AREGISTER ASSY, CONSOLE BOX
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
58875SPACER, CONSOLE BOX
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#
58911BPANEL, BOX, NO.1
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
58912CPANEL, BOX SIDE, NO.2
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM1#,2#
BLACK,TRIM0#,1#,2#
58913APANEL, BOX, NO.3
58920AARMREST ASSY, REAR CONSOLE
BLACK,TRIM2#
BLACK,TRIM1#,2#
FROMAGE/LT.GRAY,TRIM00
FROMAGE/SAND BROWN,TRIM00
BLACK,TRIM00,20
BLACK,TRIM1#,2#
BLACK,TRIM10,20
BLACK,TRIM00,2#
BLACK,TRIM00,1#,2#
BLACK/SAND BROWN,TRIM20
BLACK/SAND BROWN,TRIM10,20
58949ASPRING, CONSOLE BOX MOUNTING BRACKET
58966BPIN, CONSOLE COMPARTMENT DOOR STOPPER
58974PLATE, CONSOLE COMPARTMENT DOOR LOCK
58985RETAINER, CONSOLE BOX
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
8121INTERIOR LAMP
8202WIRING & CLAMP
9011908D23
main90119-08D23
90119C0107
main90119-C0107
90119C0547
main90119-C0547
9046705171
main90467-05171
9046705172
main90467-05172
9046707215
main90467-07215
90467C0087
main90467-C0087
90467C0088
main90467-C0088
9616000600
main96160-00600
35 parts on this diagram · 1 diagram in section
CONSOLE BOX & BRACKET for Toyota WILDLANDER (GTMC)
This section contains 35 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota WILDLANDER (GTMC). Key components include: COVER, SWITCH BASE HOLE, BOX SUB-ASSY, CONSOLE CUP HOLDER, PANEL SUB-ASSY, CONSOLE, UPPER, PANEL SUB-ASSY, CONSOLE, UPPER REAR, COVER SUB-ASSY, SHIFTING HOLE.
