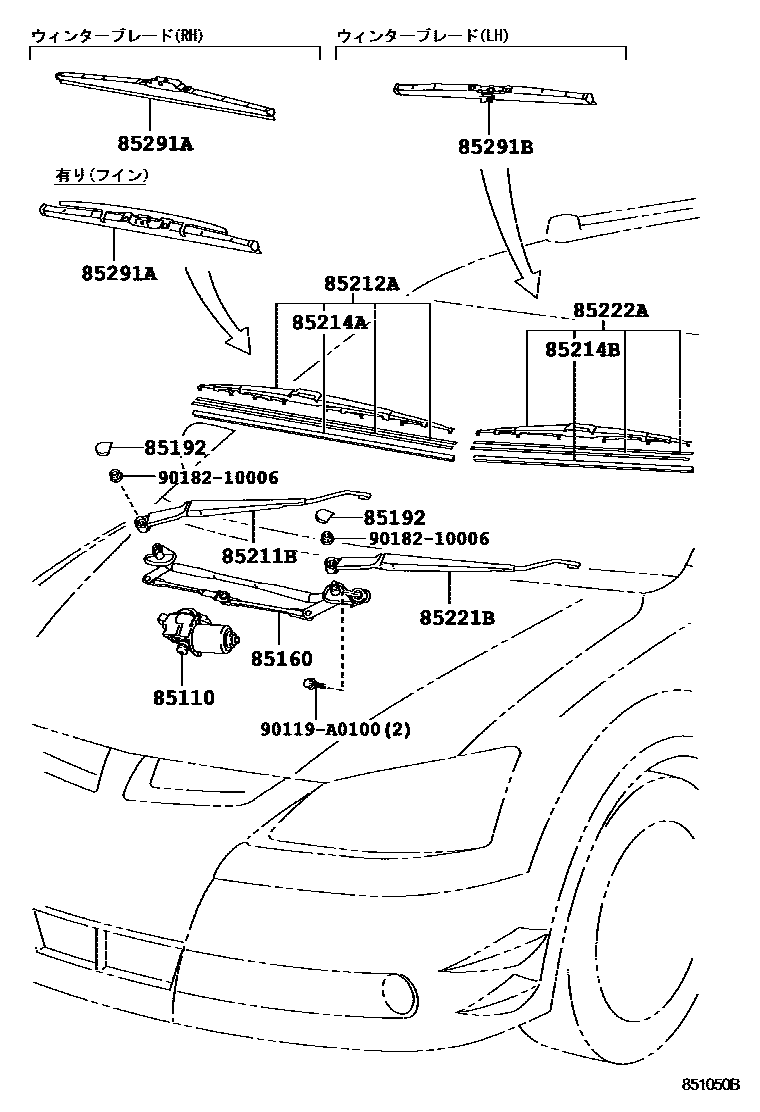

Toyota VOLTZ — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-1A050i200205

85160LINK ASSY, WINDSHIELD WIPER

main85150-1A050i200205

85192COVER, WINDSHIELD WIPER ARM

main85292-AA010×2i200205

85211BARM, FRONT WIPER, RH

main85211-12390i200205

85212ABLADE, FR WIPER, RH

main85212-12360i200205

85214ARUBBER, WIPER, RH

main85214-48030i200205

85214BRUBBER, WIPER, LH

main85214-12300i200205

85221BARM, FRONT WIPER, LH

main85221-12360i200205

85222ABLADE, FR WIPER, LH

main85222-12770i200205

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-22050i200205

main85291-30050i200205

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-60070i200205

90119A0100

main90119-A0100

9018210006

main90182-10006

13 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota VOLTZ

This section contains 13 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota VOLTZ. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WINDSHIELD WIPER, COVER, WINDSHIELD WIPER ARM, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
