Toyota VOLTZ — WINDSHIELD WASHER

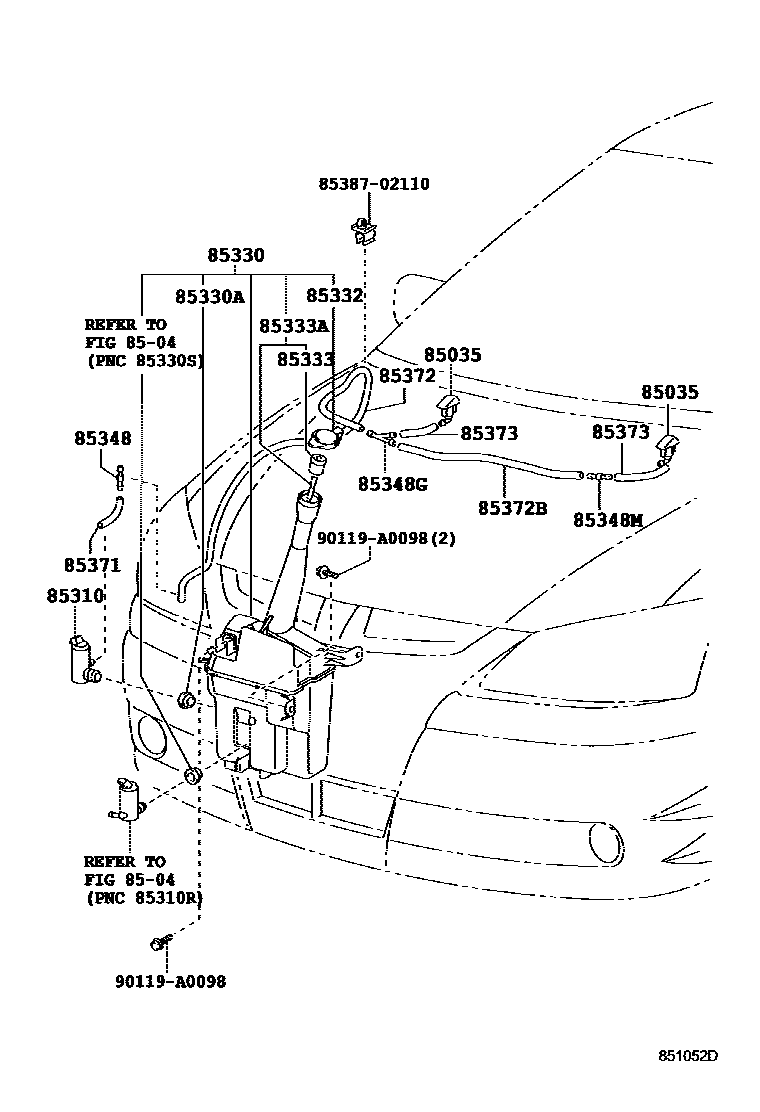

Parts diagram

85035NOZZLE SUB-ASSY, WASHER

main85381-01020i200205

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-AA010i200205

85330JAR ASSY, WINDSHIELD WASHER

main85315-01030i200205-200402

85330ABUSH, WINDSHIELD WASHER JAR

main90068-32002i200205

85332CAP, WINDSHIELD WASHER JAR

main85316-AA020i200205

85333FILTER, WINDSHIELD WASHER JAR

main85312-02010i200205

85333AFILTER, WINDSHIELD WASHER JAR, NO.2

main85312-02020i200205

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-10260i200205

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-14390i200205

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-10260i200205

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90068-33026i200205

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90068-33031i200205

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90068-33030i200205

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33028i200205

8538702110CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-02110

90119A0098

main90119-A0098

17 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota VOLTZ

This section contains 17 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota VOLTZ. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
