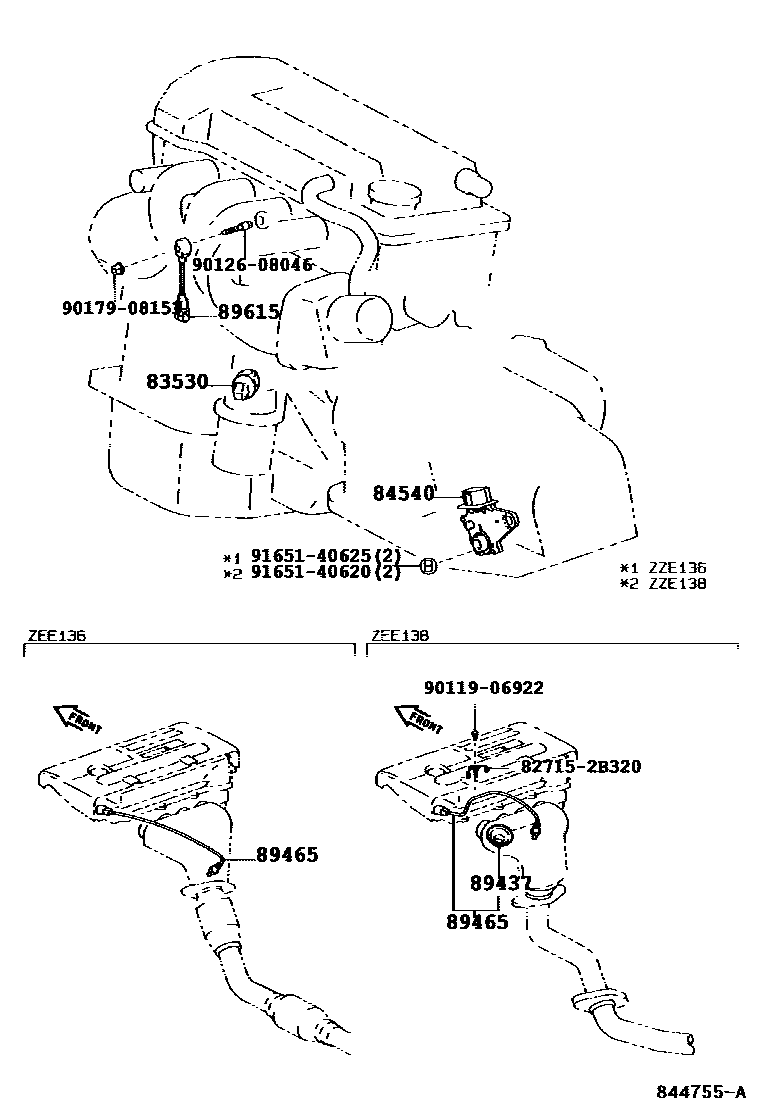

Toyota VOLTZ — SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1������-� 0004 1�������� �������� 0005 1��� 0006 1������������ ���� 0007 1�������� & �����-��� ���� 0008 1���,�-�,��� & ����-��

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iZZE13#200205

main83530-60020iZZE13#200205

84540SWITCH ASSY, NEUTRAL START

main84540-12230iZZE136200205-200402

main84540-32110iZZE137..4FC200205-200402

main84540-52050iZZE138200205-200401

89437COVER, SENSOR

main89437-12080iZZE138200205

89465SENSOR, OXYGEN

main89465-01100iZZE137200205

main89465-12710iZZE138200205

main89465-13030iZZE136200205

89615SENSOR, KNOCK CONTROL

main89615-20090iZZE13#200205

827152B320BRACKET,WIRING HARNESS CLAMP

main82715-2B320

9011906922

main90119-06922

9012608046

main90126-08046

9017908153

main90179-08153

9165140620

main91651-40620

9165140625

main91651-40625

11 parts on this diagram · 8 diagrams in section
