Toyota VOLTZ — STARTER
28021CLUTCH SUB-ASSY, STARTER CENTER BEARING
28100STARTER ASSY
28110HOUSING ASSY, STARTER DRIVE
28114PIN, STARTER DRIVE LEVER SET
28120YOKE ASSY, STARTER
28130FRAME ASSY, STARTER COMMUTATOR END
28132ACOVER, STARTER COMMUTATOR END FRAME
28160ARMATURE ASSY, STARTER
28177PLATE(FOR STARTER ARMATURE)
28226BSTARTER KIT, REPAIR SERVICE
28255GEAR, PLANET
9009690016
main90096-90016
9009902228
main90099-02228
9009904561
main90099-04561
9009904572
main90099-04572
9009905178
main90099-05178
90119A0104
main90119-A0104
9017908146
main90179-08146

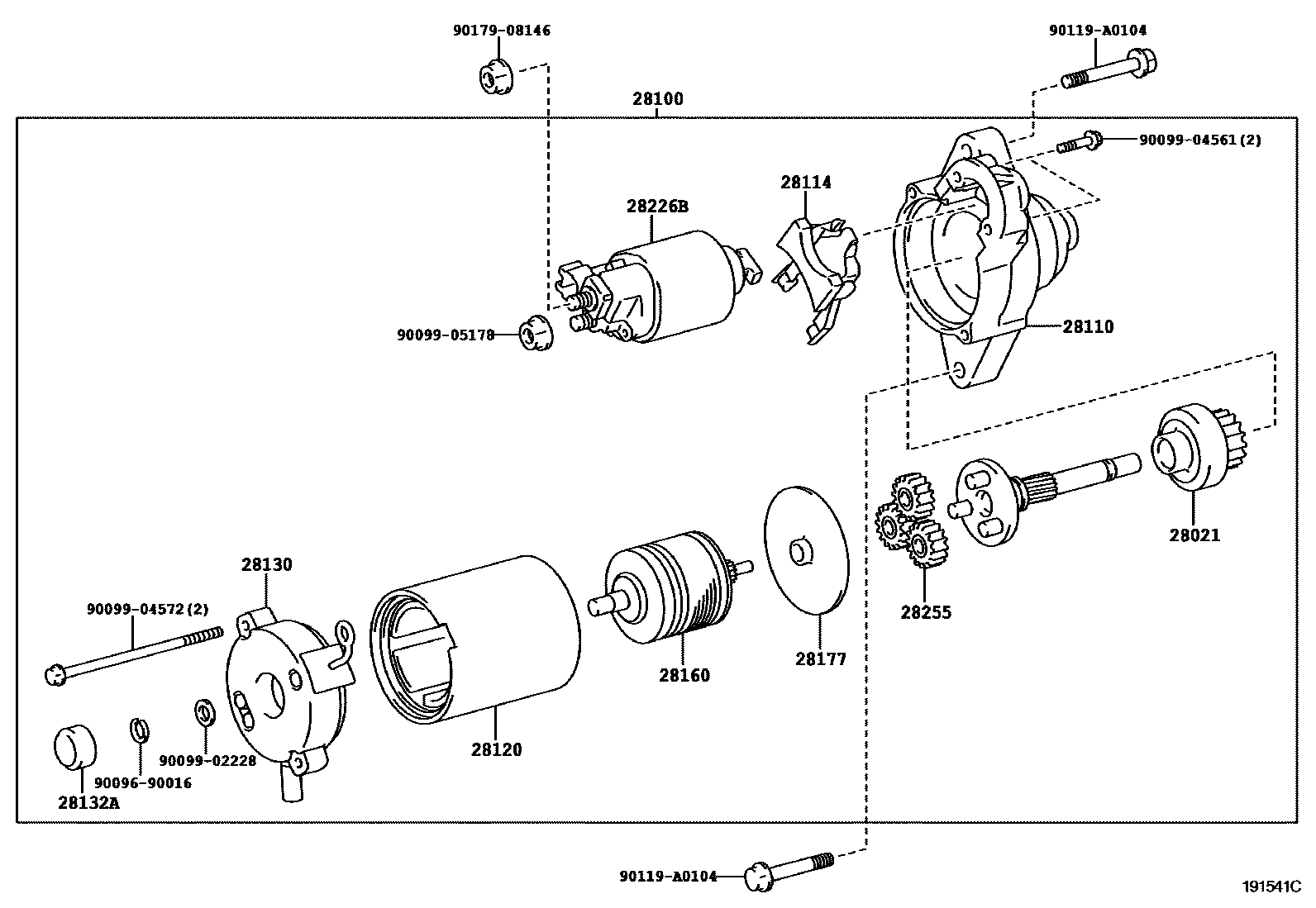

18 parts on this diagram · 1 diagram in section
STARTER for Toyota VOLTZ
This section contains 18 genuine Toyota parts for the STARTER system of the Toyota VOLTZ. Key components include: CLUTCH SUB-ASSY, STARTER CENTER BEARING, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, PIN, STARTER DRIVE LEVER SET, YOKE ASSY, STARTER.
