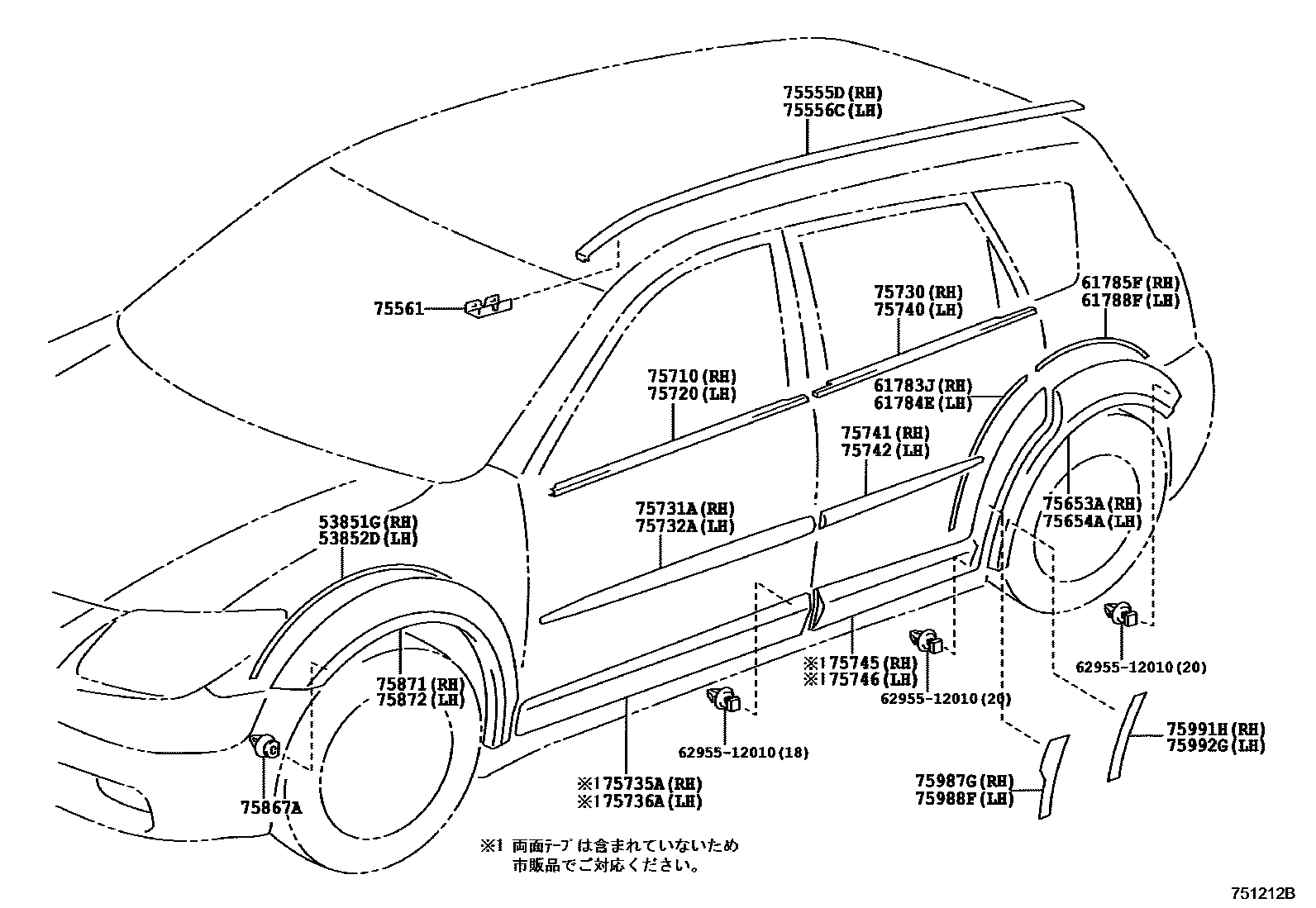

Toyota VOLTZ — SIDE MOULDING
53851GPAD, FRONT WHEEL OPENING EXTENSION, RH
GRAY,1C8; GRAY,1C8 ,KH9 ,KJ1 ,KJ3
BLACK,040 ,209 ,4R9 ,8P4
53852DPAD, FRONT WHEEL OPENING EXTENSION, LH
GRAY,1C8; GRAY,1C8 ,KH9 ,KJ1 ,KJ3
BLACK,040 ,209; BLACK,KJ5
61783JPAD, REAR WHEEL OPENING EXTENSION, NO.2
GRAY,KH9 ,KJ1 ,KJ3
BLACK,040 ,209; BLACK,KJ5
61784EPAD, REAR WHEEL OPENING EXTENSION, NO.2
GRAY,1C8 ,1E6
BLACK,040 ,209 ,4R9 ,8P4
61785FPAD, REAR WHEEL OPENING EXTENSION, NO.3
GRAY,KH9 ,KJ1 ,KJ3
BLACK,040 ,209; BLACK,KJ5
61788FPAD, REAR WHEEL OPENING EXTENSION, NO.4
GRAY,1C8; GRAY,1C8 ,KH9 ,KJ1 ,KJ3
BLACK,040 ,209 ,4R9 ,8P4
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75653AMOULDING, QUARTER, OUTSIDE REAR RH
SUPER WHITE 2,040
DK.GRAY M.M.,KJ5
CHARCOAL GRAY ME.,KH9 ,KJ1 ,KJ3
SILVER ME.,1C8
BLACK MC.,209
ORANGE ME.,4R9
DK.BLUE M.M.,8P4
75654AMOULDING, QUARTER, OUTSIDE REAR LH
SUPER WHITE 2,040
DK.GRAY M.M.,KJ5
CHARCOAL GRAY ME.,1E6
SILVER ME.,1C8
BLACK MC.,209
ORANGE ME.,4R9
DK.BLUE M.M.,8P4
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75731AMOULDING, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
SILVER ME.,1C8
CHARCOAL GRAY ME.,1E6
BLACK MC.,209
RED M.M.,KJ3
ORANGE ME.,4R9
DK.BLUE M.M.,KJ5
SUPER WHITE 2,040
SILVER ME.,1C8
CHARCOAL GRAY ME.,1E6
BLACK MC.,209
RED,3L5
RED M.M.,3P1
ORANGE ME.,4R9
DK.BLUE M.M.,8P4
75732AMOULDING, FRONT DOOR, OUTSIDE LH
SUPER WHITE 2,040
SILVER ME.,1C8
CHARCOAL GRAY ME.,1E6
BLACK MC.,209
RED M.M.,KJ3
ORANGE ME.,4R9
DK.BLUE M.M.,KJ5
SUPER WHITE 2,040
SILVER ME.,1C8
CHARCOAL GRAY ME.,1E6
BLACK MC.,209
RED,3L5
RED M.M.,3P1
ORANGE ME.,4R9
DK.BLUE M.M.,8P4
75735AMOULDING, FRONT DOOR OUTSIDE, LOWER RH
SUPER WHITE 2,040
DARK.GRAY M.M.,KJ5
CHARCOAL GRAY ME.,KH9 ,KJ1 ,KJ3
SILVER ME.,1C8
BLACK MC.,209
ORANGE ME.,4R9
DK.BLUE M.M.,8P4
75736AMOULDING, FRONT DOOR OUTSIDE, LOWER LH
SUPER WHITE 2,040
DARK.GRAY M.M.,KJ5
CHARCOAL GRAY ME.,KH9 ,KJ1 ,KJ3
SILVER ME.,1C8
BLACK MC.,209
ORANGE ME.,4R9
DK.BLUE M.M.,8P4
75740MOULDING ASSY, REAR DOOR BELT, LH
75741MOULDING, REAR DOOR, OUTSIDE RH
SUPER WHITE 2,040
SILVER ME.,KH9
CHARCOAL GRAY ME.,1E6
BLACK MC.,KJ1
RED M.M.,KJ3
ORANGE ME.,4R9
DK.BLUE M.M.,KJ5
SUPER WHITE 2,040
SILVER ME.,1C8
CHARCOAL GRAY ME.,1E6
BLACK MC.,209
RED,3L5
RED M.M.,3P1
ORANGE ME.,4R9
DK.BLUE M.M.,8P4
75742MOULDING, REAR DOOR, OUTSIDE LH
SUPER WHITE 2,040
SILVER ME.,1C8
CHARCOAL GRAY ME.,1E6
BLACK MC.,209
RED M.M.,KJ3
ORANGE ME.,4R9
DK.BLUE M.M.,8P4
SUPER WHITE 2,040
SILVER ME.,1C8
CHARCOAL GRAY ME.,1E6
BLACK MC.,209
RED,3L5
RED M.M.,3P1
ORANGE ME.,4R9
DK.BLUE M.M.,8P4
75745MOULDING, REAR DOOR OUTSIDE, LOWER RH
SUPER WHITE 2,040
DARK.GRAY M.M.,KJ5
CHARCOAL GRAY ME.,KH9 ,KJ1 ,KJ3
SILVER ME.,1C8
BLACK MC.,209
ORANGE ME.,4R9
DK.BLUE M.M.,8P4
75746MOULDING, REAR DOOR OUTSIDE, LOWER LH
SUPER WHITE 2,040
DARK.GRAY M.M.,KJ5
CHARCOAL GRAY ME.,1E6
SILVER ME.,1C8
BLACK MC.,209
ORANGE ME.,4R9
DK.BLUE M.M.,8P4
75867ACLIP, ROCKER PANEL MOULDING
75871MOULDING, FRONT FENDER WHEEL OPENING, RH
SUPER WHITE 2,040
DK.GRAY M.M.,KJ5
CHARCOAL GRAY ME.,1E6
SILVER ME.,1C8
BLACK MC.,209
ORANGE ME.,4R9
DK.BLUE M.M.,8P4
75872MOULDING, FRONT FENDER WHEEL OPENING, LH
SUPER WHITE 2,040
DK.GRAY M.M.,KJ5
CHARCOAL GRAY ME.,1E6
SILVER ME.,1C8
BLACK MC.,209
ORANGE ME.,4R9
DK.BLUE M.M.,8P4
75987GSTRIPE, REAR DOOR, OUTSIDE, RH
75988FSTRIPE, REAR DOOR, OUTSIDE LH
75991HSTRIPE, QUARTER, RH
75992GSTRIPE, QUARTER, LH
6295512010SEAL, ROOF SIDE VENT
main62955-12010
31 parts on this diagram · 1 diagram in section
SIDE MOULDING for Toyota VOLTZ
This section contains 31 genuine Toyota parts for the SIDE MOULDING system of the Toyota VOLTZ. Key components include: PAD, FRONT WHEEL OPENING EXTENSION, RH, PAD, FRONT WHEEL OPENING EXTENSION, LH, PAD, REAR WHEEL OPENING EXTENSION, NO.2, PAD, REAR WHEEL OPENING EXTENSION, NO.3.
