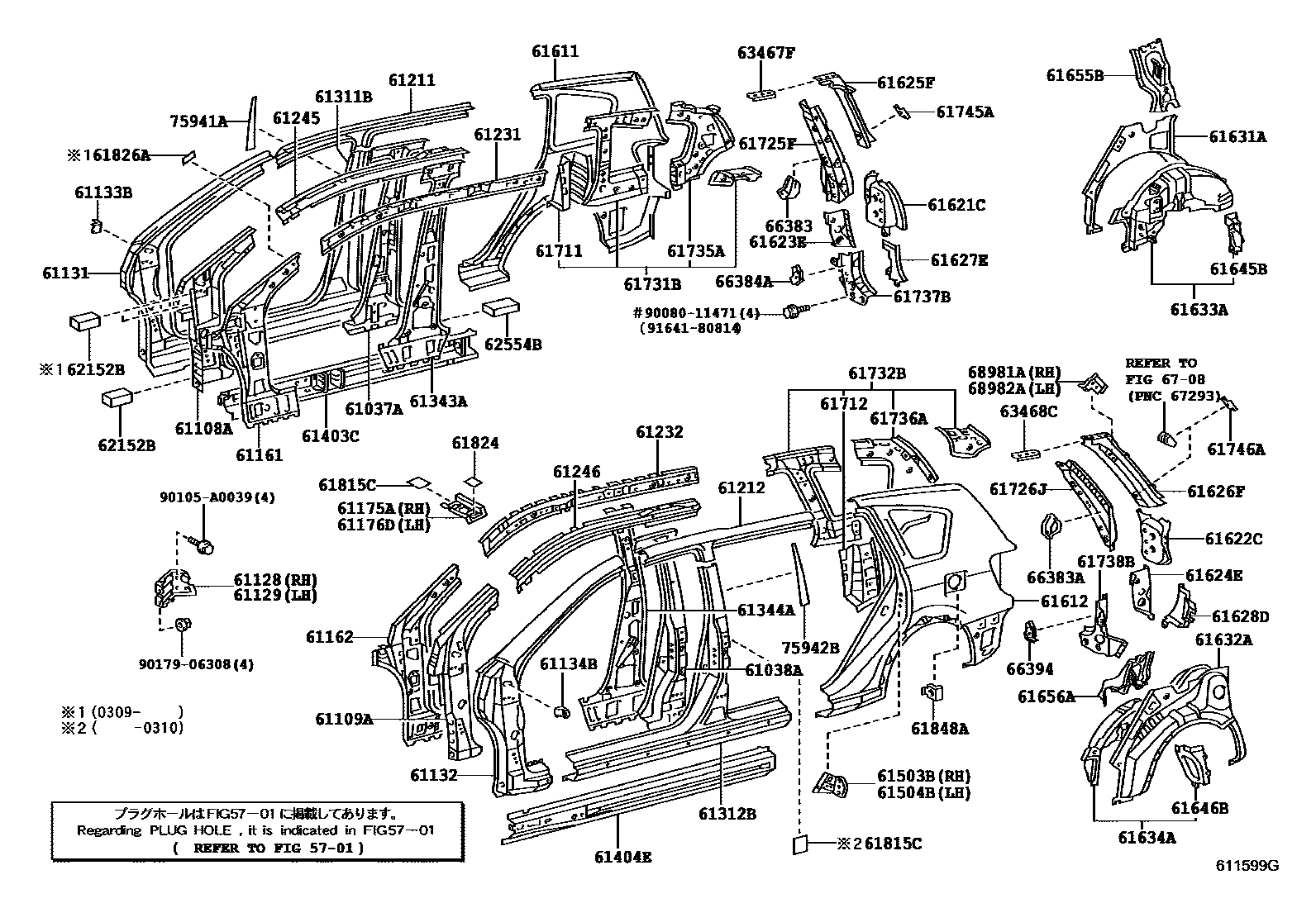

Toyota VOLTZ — SIDE MEMBER
5701HOLE PLUG
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61128REINFORCEMENT, COWL SIDE PANEL, RH
61129REINFORCEMENT, COWL SIDE PANEL, LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61133BBRACKET, FRONT BODY PILLAR ,OUTER RH
61134BBRACKET, FRONT BODY PILLAR OUTER, LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61175AREINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH
61176DREINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH
61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH
61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61623EEXTENSION, QUARTER INNER PANEL, REAR RH
61624EEXTENSION, QUARTER INNER PANEL, REAR LH
61625FEXTENSION, QUARTER PANEL, UPPER RH
61626FEXTENSION, QUARTER PANEL, UPPER LH
61627EEXTENSION, QUARTER PANEL, REAR LOWER RH
61628DEXTENSION, QUARTER PANEL, REAR LOWER LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61655BGUSSET, QUARTER WHEEL HOUSE, INNER RH
61656AGUSSET, QUARTER WHEEL HOUSE, INNER LH
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61725FREINFORCEMENT, BACK DOOR OPENING SIDE, UPPER RH
61726JREINFORCEMENT, BACK DOOR OPENING SIDE, UPPER LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61737BPANEL, ROOF SIDE, INNER LOWER RH
61738BPANEL, ROOF SIDE, INNER LOWER LH
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH
61815CCOVER, ROOF SIDE, INNER UPPER
61824PLATE, NOISE CONTROL, NO.1
61848ARETAINER, QUARTER PANEL, LH
62152BPAD, COWL SIDE SILENCER, NO.2
62554BPAD, PILLAR, NO.4
63467FBRACKET, ROOF RACK, REAR RH
63468CBRACKET, ROOF RACK, REAR RH
66383BRACKET, ROPE HOOK BAR, NO.1 RH
66383ABRACKET, ROPE HOOK BAR, NO.1 LH
66384ABRACKET, ROPE HOOK, NO.2 RH
66394BRACKET, ROPE HOOK, NO.2 LH
6708BACK DOOR PANEL & GLASS
68981ARETAINER, BACK DOOR STAY, RH
68982ARETAINER, BACK DOOR STAY, LH
75941ASTRIPE, CENTER PILLAR, RH
75942BSTRIPE, CENTER PILLAR, LH
9008011471
main90080-11471
90105A0039
main90105-A0039
9017906308
main90179-06308
9164180814
main91641-80814
80 parts on this diagram · 1 diagram in section
SIDE MEMBER for Toyota VOLTZ
This section contains 80 genuine Toyota parts for the SIDE MEMBER system of the Toyota VOLTZ. Key components include: HOLE PLUG, REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH, REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH, REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH, REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH.
