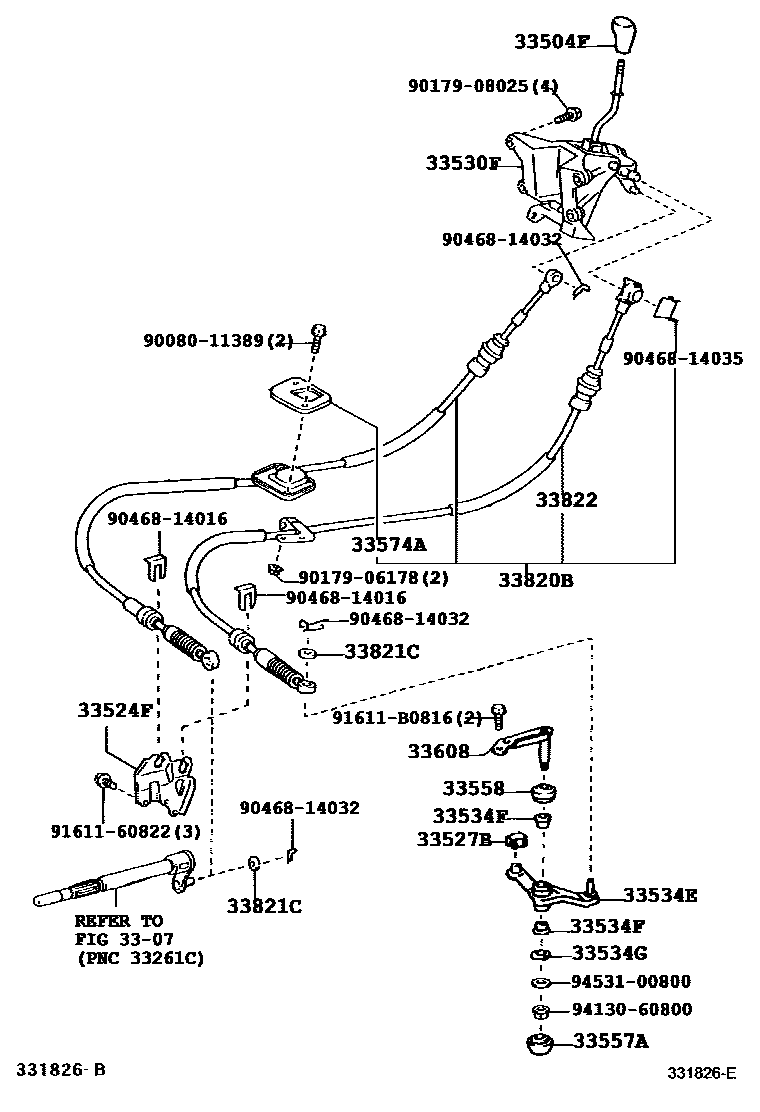

Toyota VOLTZ — SHIFT LEVER & RETAINER
3307GEAR SHIFT FORK & LEVER SHAFT (MTM)
33504FKNOB SUB-ASSY, SHIFT LEVER
DK.GRAY,TRIM13,14
DK.GRAY,TRIM13,14
DK.GRAY,TRIM13,14
DK.GRAY,TRIM13,14
33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)
33527BBUSH (FOR CONTROL SHIFT LEVER)
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33534ECRANK, SELECTING BELL, NO.2
33534FBUSH (FOR SELECTING BELLCRANK NO.2)
33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)
33557ACOVER, SELECTING BELLCRANK DUST, NO.1
33558COVER, SELECTING BELLCRANK DUST, NO.2
33574ARETAINER, SHIFT CABLE GROMMET, NO.1
33608SUPPORT SUB-ASSY, SELECTING BELLCRANK
33820BCABLE ASSY, TRANSMISSION CONTROL
33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
9008011389
main90080-11389
9017906178
main90179-06178
9017908025
main90179-08025
9046814016
main90468-14016
9046814032
main90468-14032
9046814035
main90468-14035
9161160822
main91611-60822
91611B0816
main91611-B0816
9413060800
main94130-60800
9453100800
main94531-00800
25 parts on this diagram · 3 diagrams in section
SHIFT LEVER & RETAINER for Toyota VOLTZ
This section contains 51 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota VOLTZ. Key components include: GEAR SHIFT FORK & LEVER SHAFT (MTM), KNOB SUB-ASSY, SHIFT LEVER, BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT), BUSH (FOR CONTROL SHIFT LEVER), LEVER ASSY, SHIFT (FOR FLOOR SHIFT).
