Toyota VOLTZ — METER

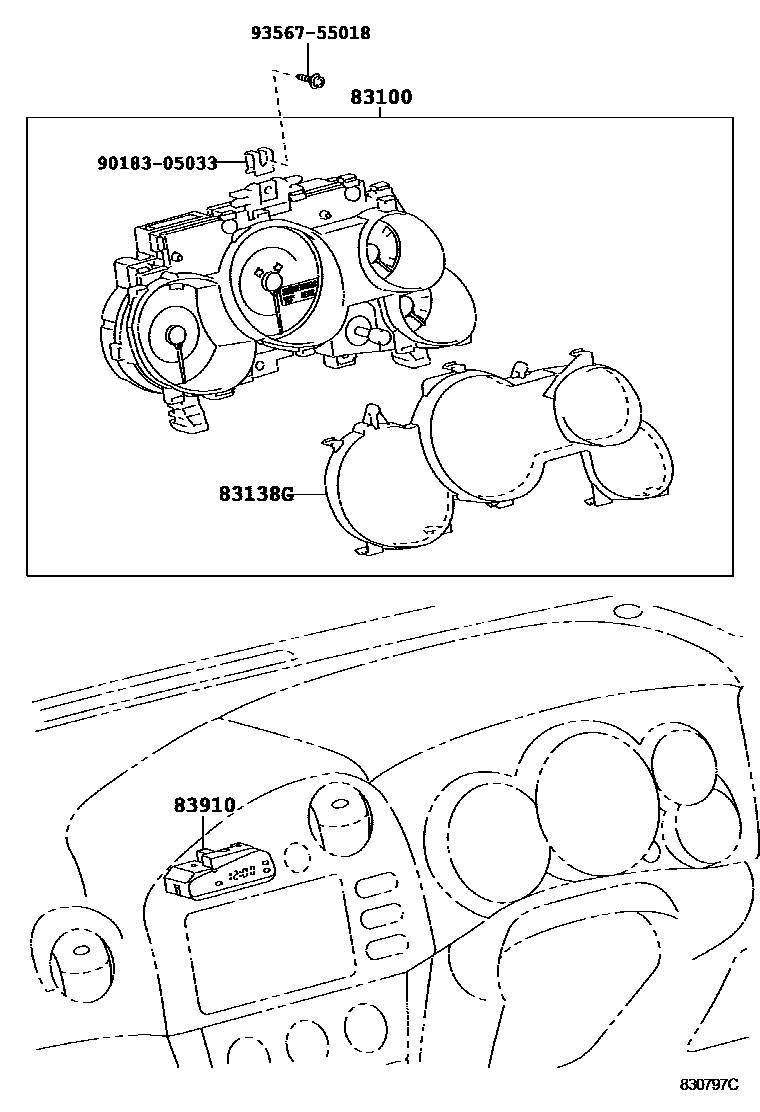

Parts diagram

83100METER ASSY, COMBINATION

main83800-01070i200205-200305

main83800-01090i200305

main83800-01100i200205-200305

main83800-01130i200205-200305

main83800-01170i200305

main83800-01190i200305

83138GGLASS, COMBINATION METER

main83852-01030i200205

83910CLOCK ASSY

main83910-01010i200205

9018305033

main90183-05033

9356755018

main93567-55018

5 parts on this diagram · 1 diagram in section

METER for Toyota VOLTZ

This section contains 5 genuine Toyota parts for the METER system of the Toyota VOLTZ. Key components include: METER ASSY, COMBINATION, GLASS, COMBINATION METER, CLOCK ASSY.
