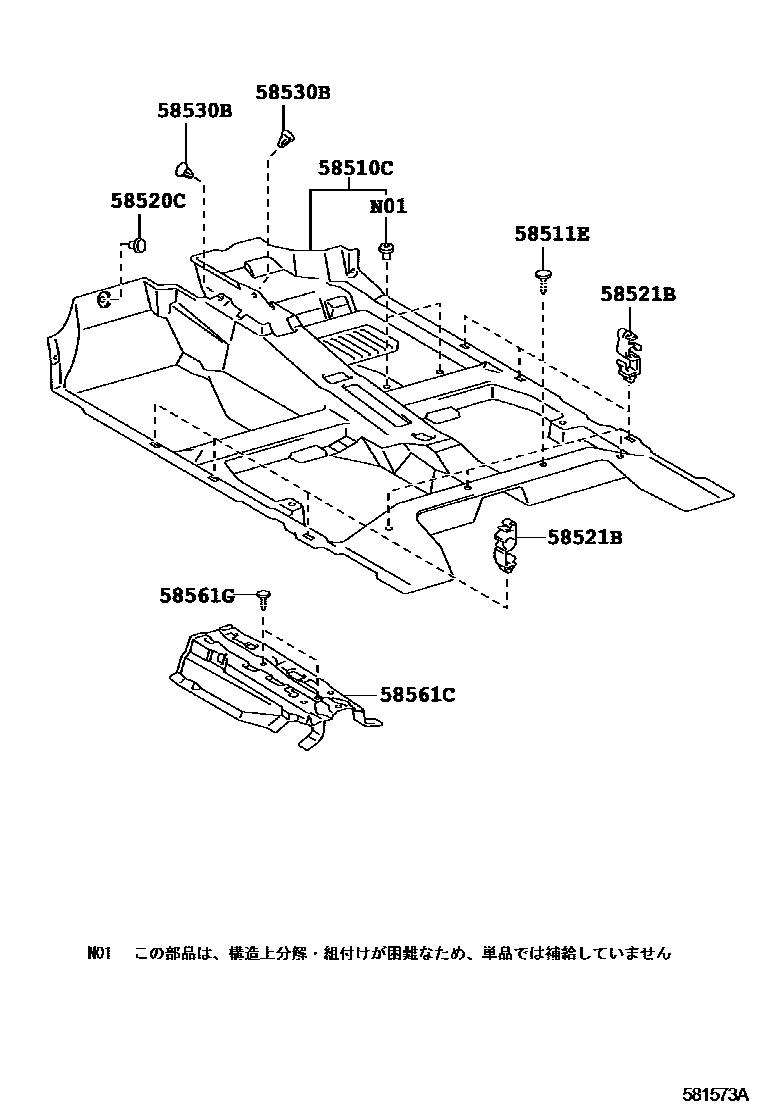

Toyota VOLTZ — MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-01130-B1i200205-200305

DARK GRAY,TRIM13,14

main58510-01131-B1i200305-200308

DARK GRAY,TRIM13,14

main58510-01132-B1i200308-200402

DARK GRAY,TRIM13,14

main58510-01150-B1i200205-200305

DARK GRAY,TRIM13,14

main58510-01151-B1i200305-200308

DARK GRAY,TRIM13,14

main58510-01152-B1i200308-200402

DARK GRAY,TRIM13,14

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-07049-C0×4i200205-200402

BLACK,TRIM13,14

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06001-C0i200205-200402

BLACK,TRIM13,14

58521BHOOK, FLOOR CARPET

main58521-02040×6i200205

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-08124×2i200205

58561CSILENCER, FRONT FLOOR, NO.1

main58561-01010i200205

main58561-01020i200205

58561GCLIP(FOR FRONT FLOOR SILENCER)

main90467-06077×2i200205

7 parts on this diagram · 1 diagram in section

MAT & CARPET for Toyota VOLTZ

This section contains 7 genuine Toyota parts for the MAT & CARPET system of the Toyota VOLTZ. Key components include: CARPET ASSY, FRONT FLOOR, FRONT, CLIP(FOR FRONT FLOOR MAT), CLIP(FOR FRONT FLOOR CARPET), HOOK, FLOOR CARPET.
