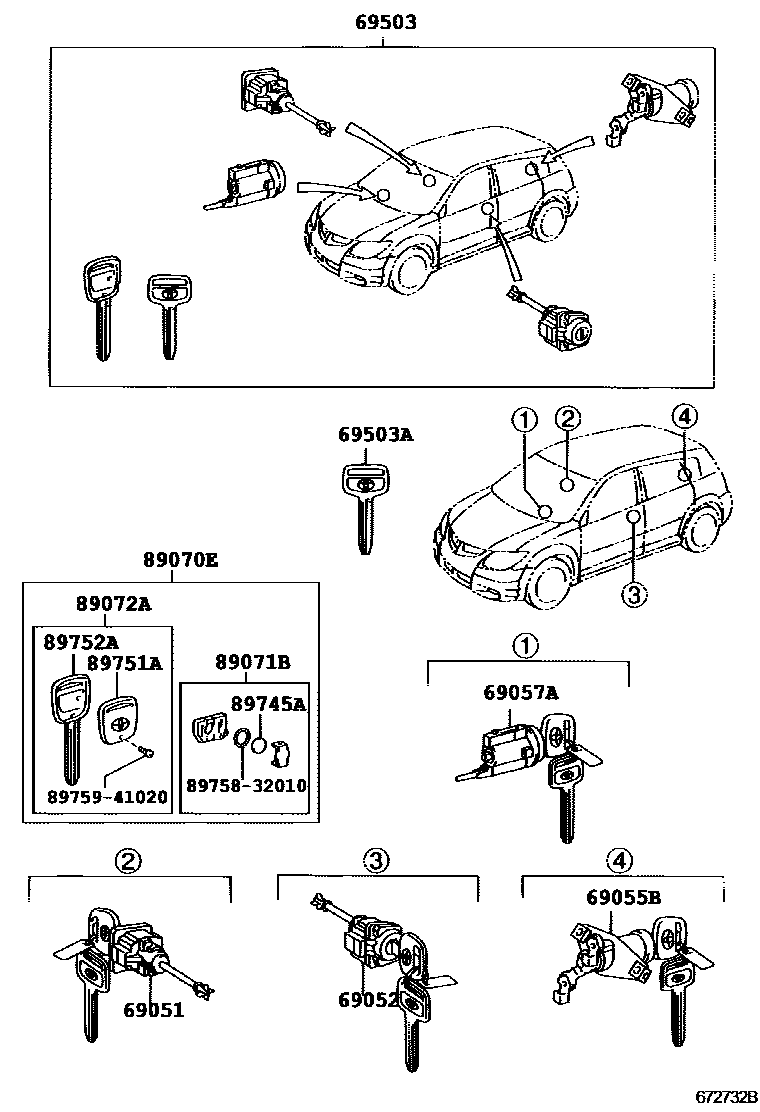

Toyota VOLTZ — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-01030i200205-200402

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-01030i200205-200402

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-01080i200205-200402

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-02030i200205-200402

69503CYLINDER SET, LOCK

main69005-01070i200205-200402

69503AKEY, BLANK

main90999-00186×2i200205-200402

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-32090i200205-200402

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-32040i200205-200402

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-32020i200205-200402

89745ABATTERY, TRANSMITTER

main89745-41010i200205-200402

89751ACOVER, TRANSMITTER HOUSING

main89751-22010i200205-200402

89752ACASE, TRANSMITTER HOUSING

main89752-32030i200205-200402

8975832010PACKING, DOOR CONTROL TRANSMITTER

main89758-32010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

14 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota VOLTZ

This section contains 14 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota VOLTZ. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, CYLINDER SET, LOCK.
