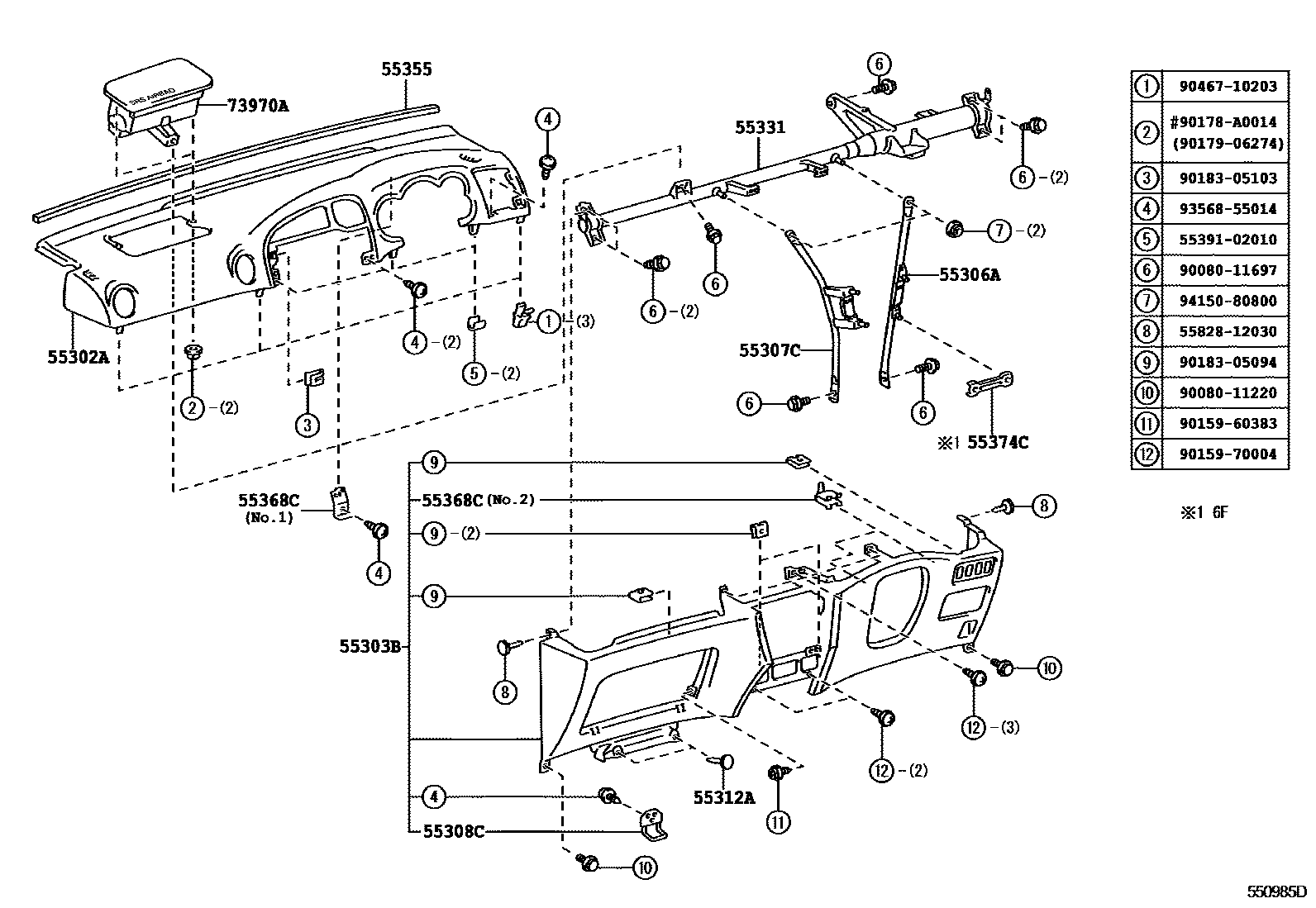

Toyota VOLTZ — INSTRUMENT PANEL & GLOVE COMPARTMENT
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
DK.GRAY,TRIM13,14
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
DK.GRAY,TRIM13,14
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55312ACLIP, INSTRUMENT PANEL
BLACK,TRIM13,14
55331REINFORCEMENT, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
DK.GRAY,TRIM13,14
5539102010CUSHION, INSTRUMENT PANEL, LOWER NO.1
main55391-02010
5582812030PIN, FRONT VENTILATOR HANDLE
main55828-12030
9008011220
main90080-11220
9008011697
main90080-11697
9015960383
main90159-60383
9015970004
main90159-70004
90178A0014
main90178-A0014
9018305094
main90183-05094
9018305103
main90183-05103
9046710203
main90467-10203
9356855014
main93568-55014
9415080800
main94150-80800
23 parts on this diagram · 4 diagrams in section
INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota VOLTZ
This section contains 53 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota VOLTZ. Key components include: STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR, PANEL SUB-ASSY, INSTRUMENT, UPPER, PANEL SUB-ASSY, INSTRUMENT, LOWER, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1, BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2.
