Toyota VOLTZ — HEATING & AIR CONDITIONING - COMPRESSOR

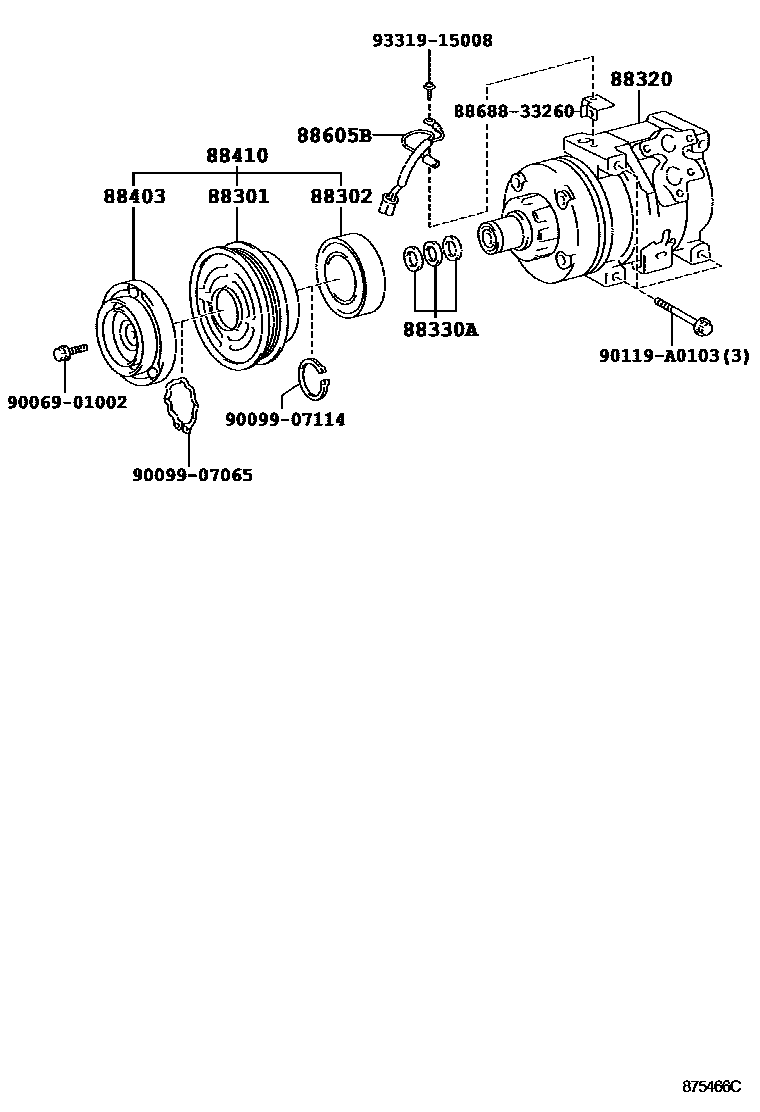

Parts diagram

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-02130i200205

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-02050i200205

88320COMPRESSOR ASSY, COOLER

main88320-02120i200205

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i200205

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-02050i200205

88410CLUTCH ASSY, MAGNET

main88410-02130i200205

88605BHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main88605-35420i200205-200402

8868833260BRACKET, COOLER DIAPHRAGM

main88688-33260

9006901002

main90069-01002

9009907065

main90099-07065

9009907114

main90099-07114

90119A0103

main90119-A0103

9331915008

main93319-15008

13 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota VOLTZ

This section contains 13 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota VOLTZ. Key components include: ROTOR SUB-ASSY, MAGNET CLUTCH, STATOR SUB-ASSY, MAGNET CLUTCH, COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), HUB SUB-ASSY, MAGNET CLUTCH.
