Toyota VOLTZ — FRONT DOOR WINDOW REGULATOR & HINGE

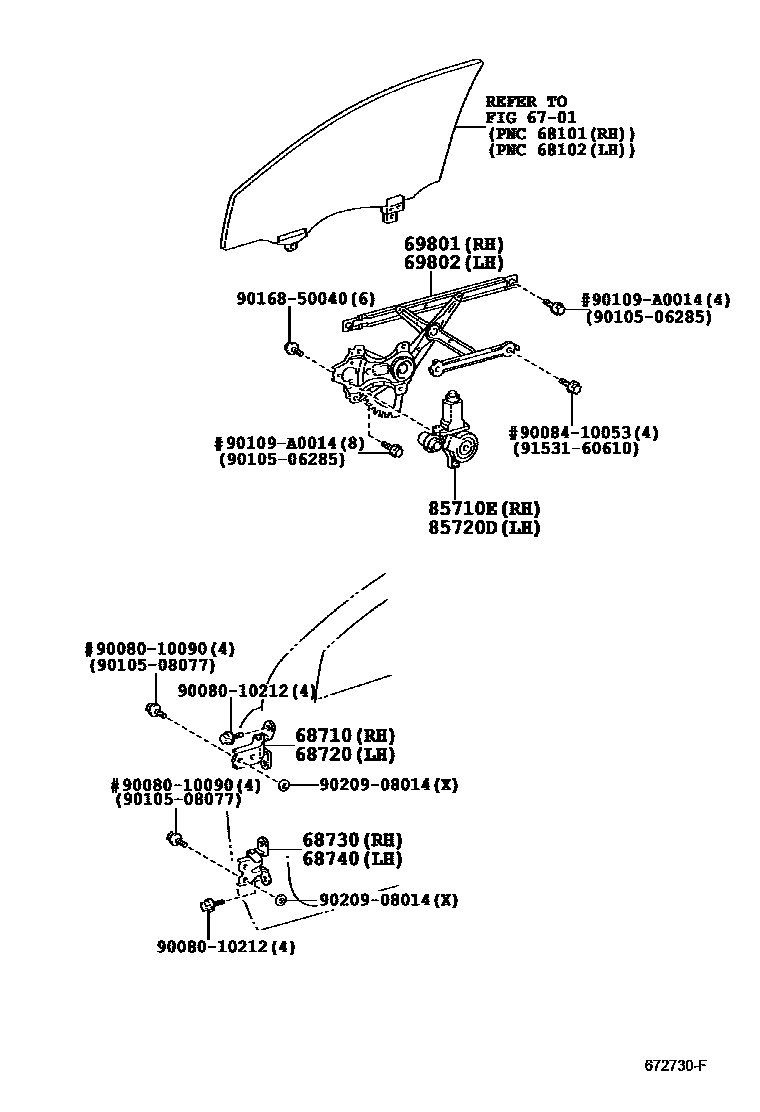

Parts diagram

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02020i200205-200402

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02020i200205-200402

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02030i200205-200402

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02030i200205-200402

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-01030i200205

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-01030i200205

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-33120i200305

main85710-AA050i200205-200305

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-AA050i200205

9008010090

main90080-10090

9008010212

main90080-10212

9008410053

main90084-10053

90109A0014

main90109-A0014

9016850040

main90168-50040

9020908014

main90209-08014

15 parts on this diagram · 1 diagram in section

FRONT DOOR WINDOW REGULATOR & HINGE for Toyota VOLTZ

This section contains 15 genuine Toyota parts for the FRONT DOOR WINDOW REGULATOR & HINGE system of the Toyota VOLTZ. Key components include: FRONT DOOR PANEL & GLASS, HINGE ASSY, FRONT DOOR, UPPER RH, HINGE ASSY, FRONT DOOR, UPPER LH, HINGE ASSY, FRONT DOOR, LOWER RH, HINGE ASSY, FRONT DOOR, LOWER LH.
