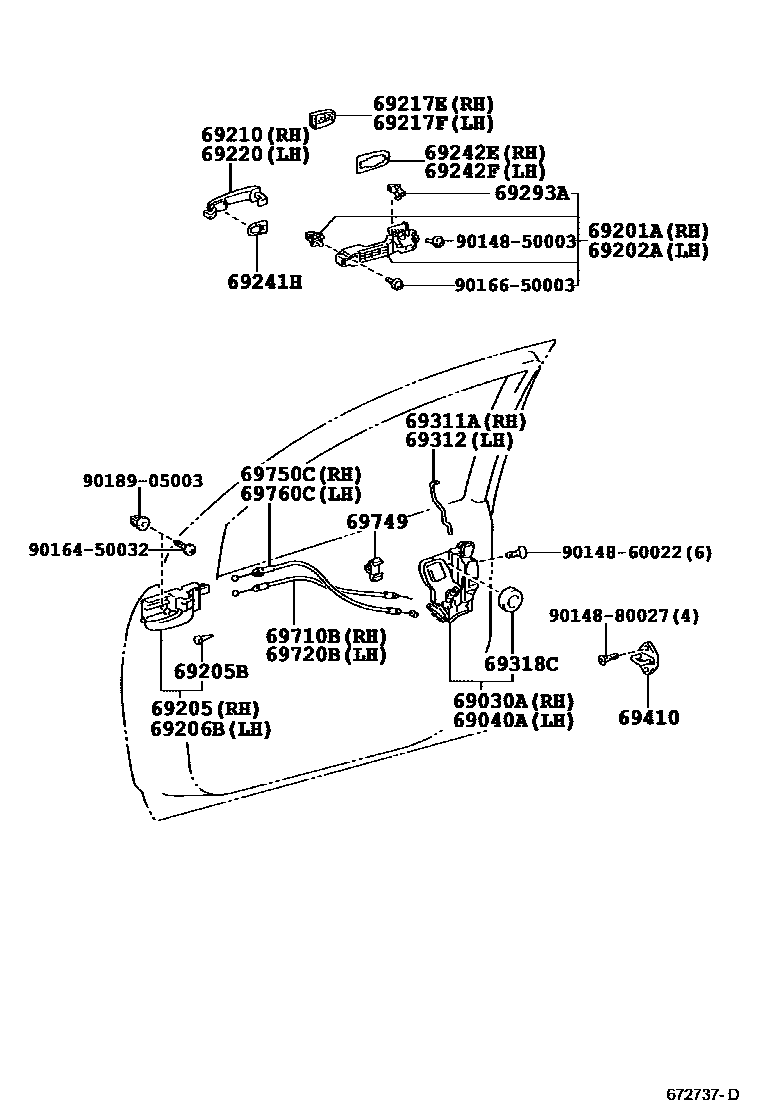

Toyota VOLTZ — FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
DK.GRAY,TRIM13,14
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
DK.GRAY,TRIM13,14
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
SILVER ME.,1C8 ,KH9
CHARCOAL GRAY ME.,1E6
BLACK MC.,KJ1
RED M.M.,KJ3
ORANGE ME.,4R9
DK.BLUE M.M.,KJ5
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
SUPER WHITE 2,040
SILVER ME.,1C8
CHARCOAL GRAY ME.,1E6
BLACK MC.,209
RED M.M.,KJ3
ORANGE ME.,4R9
DK.BLUE M.M.,KJ5
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
SUPER WHITE 2,040
SILVER ME.,KH9
CHARCOAL GRAY ME.,1E6
BLACK MC.,209
RED M.M.,KJ3
ORANGE ME.,4R9
DK.BLUE M.M.,8P4
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
SILVER ME.,1C8
CHARCOAL GRAY ME.,1E6
BLACK MC.,209
RED M.M.,KJ3
ORANGE ME.,4R9
DK.BLUE M.M.,8P4
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69242FPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
9014850003
main90148-50003
9014860022
main90148-60022
9014880027
main90148-80027
9016450032
main90164-50032
9016650003
main90166-50003
9018905003
main90189-05003
30 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota VOLTZ
This section contains 30 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota VOLTZ. Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH.
