Toyota VOLTZ — CRANKSHAFT & PISTON

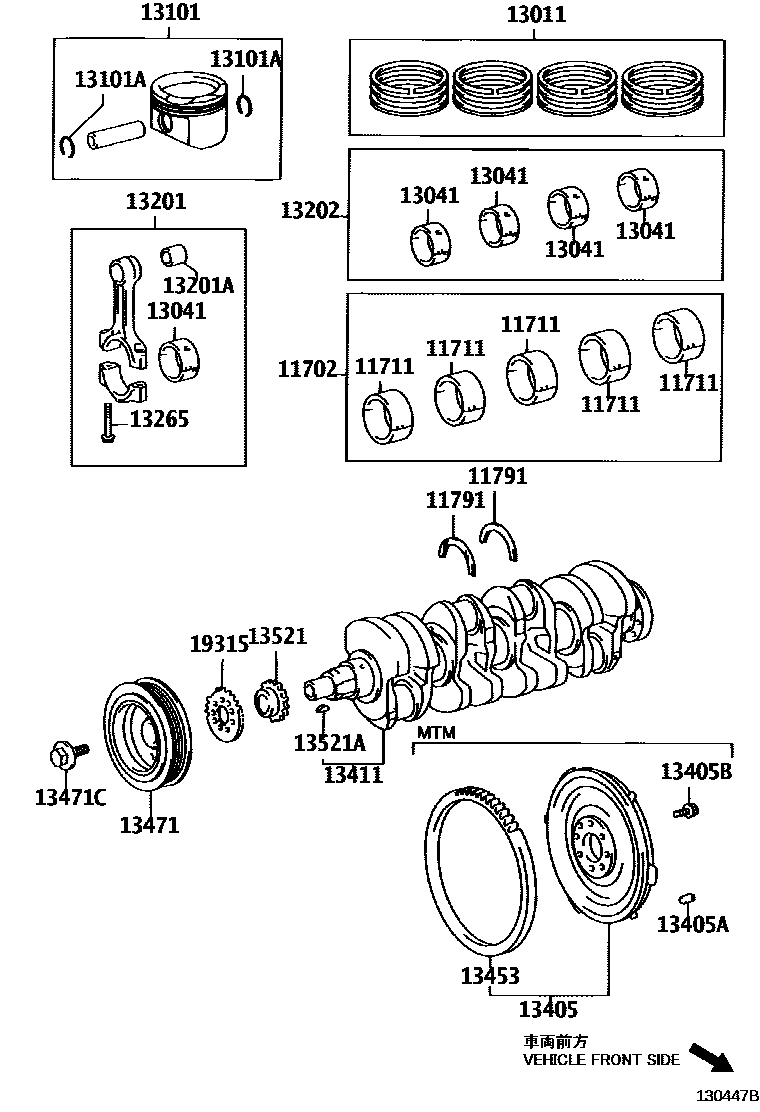

Parts diagram

11702BEARING SET, CRANKSHAFT

11711BEARING, CRANKSHAFT

11791WASHER, CRANKSHAFT THRUST, UPPER

13011RING SET, PISTON

13041BEARING, CONNECTING ROD

13101PISTON SUB-ASSY, W/PIN

13101ARING, HOLE SNAP(FOR PISTON PIN)

13201ROD SUB-ASSY, CONNECTING

13201ABUSH(FOR CONNECTING ROD SMALL END)

13202BEARING SET, CONNECTING ROD

13265BOLT, CONNECTING ROD

13405FLYWHEEL SUB-ASSY

13405APIN, STRAIGHT(FOR FLYWHEEL)

13405BBOLT, FLYWHEEL SETTING

13411CRANKSHAFT

13453GEAR, FLYWHEEL RING

13471PULLEY, CRANKSHAFT

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

19315PLATE, CRANK ANGLE SENSOR, NO.1

21 parts on this diagram · 1 diagram in section

CRANKSHAFT & PISTON for Toyota VOLTZ

This section contains 21 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota VOLTZ. Key components include: BEARING SET, CRANKSHAFT, BEARING, CRANKSHAFT, WASHER, CRANKSHAFT THRUST, UPPER, RING SET, PISTON, BEARING, CONNECTING ROD.
