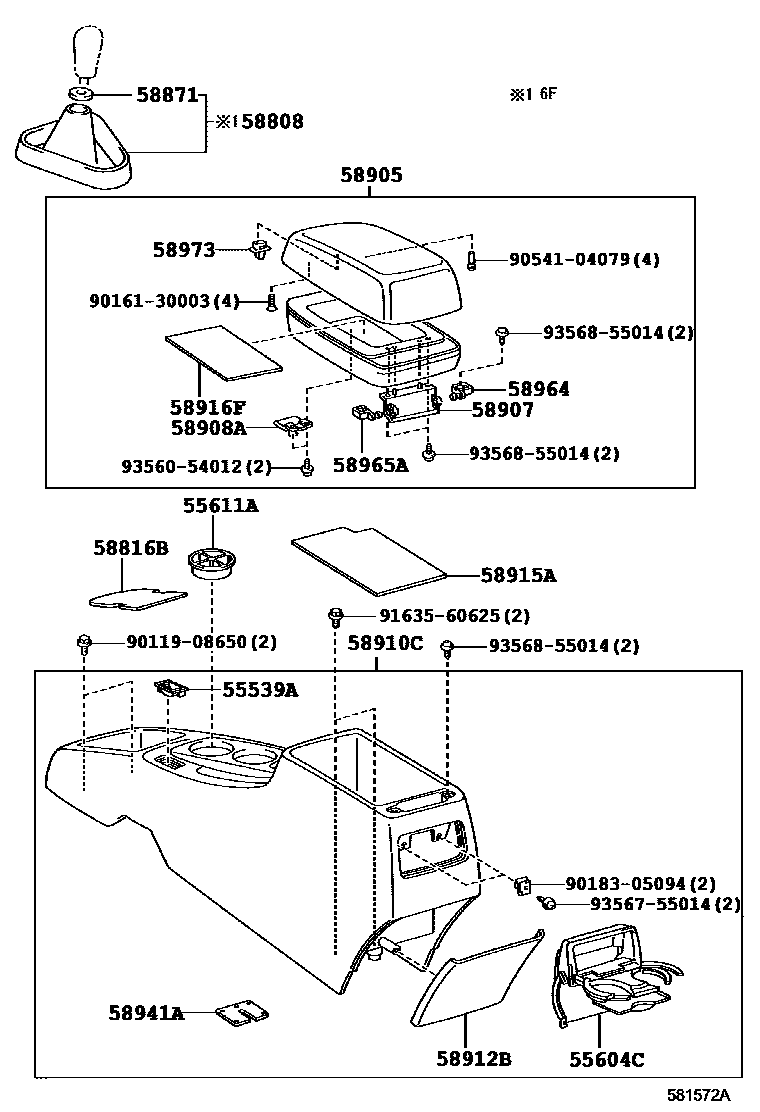

Toyota VOLTZ — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-02010-B3iZZE13#200205-200402

DK.GRAY,TRIM13,14

55604CHOLDER SUB-ASSY, CONSOLE BOX CUP

main55604-AB010-B1iZZE13#200205-200402

DK.GRAY,TRIM13,14

55611ATRAY, INSTRUMENT PANEL UNDER

main55611-01010-B0iZZE13#200205-200402

DK.GRAY,TRIM13,14

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12230-B0iZZE137..6F200205-200402

DK.GRAY,TRIM13,14

58816BINSERT, CONSOLE BOX

main58816-AG010iZZE13#200205

58871CUSHION, CONSOLE BOX

main58871-20060iZZE137..6F200205

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-02210-B1iZZE13#200205-200402

DK.GRAY,TRIM13,14

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-02020iZZE13#200205

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-02020iZZE13#200205

58910CBOX ASSY, CONSOLE, REAR

main58910-AG010-B0iZZE13#200205-200402

DK.GRAY,TRIM13,14

58912BBOX, REAR CONSOLE, LOWER

main58912-AG010-B0iZZE13#200205-200402

DK.GRAY,TRIM13,14

58915ADAMPER, CONSOLE BOX, REAR

main58915-AG010iZZE13#200205

58916FMAT, BOX BOTTOM, NO.1

main58916-02060iZZE13#200205

58941ACOVER, PARKING BRAKE HOLE

main58941-AG010iZZE13#200205

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-02060iZZE13#200205

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-02060iZZE13#200205

58973PIN, CONSOLE COMPARTMENT DOOR LOCK

main58973-02020iZZE13#200205

9011908650

main90119-08650

9016130003

main90161-30003

9018305094

main90183-05094

9054104079

main90541-04079

9163560625

main91635-60625

9356054012

main93560-54012

9356755014

main93567-55014

9356855014

main93568-55014

25 parts on this diagram · 1 diagram in section
