Toyota VOLTZ — ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-01030i200205

86203VWIRE SUB ASSY, RADIO

main86203-01020i200205

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-01060i200205-200305

main86300-12800i200305

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-01020i200205-200305

main86309-20310i200305

86396NUT, ANTENNA

main86396-02030i200205-200305

main86396-20040i200305

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

6 parts on this diagram · 1 diagram in section

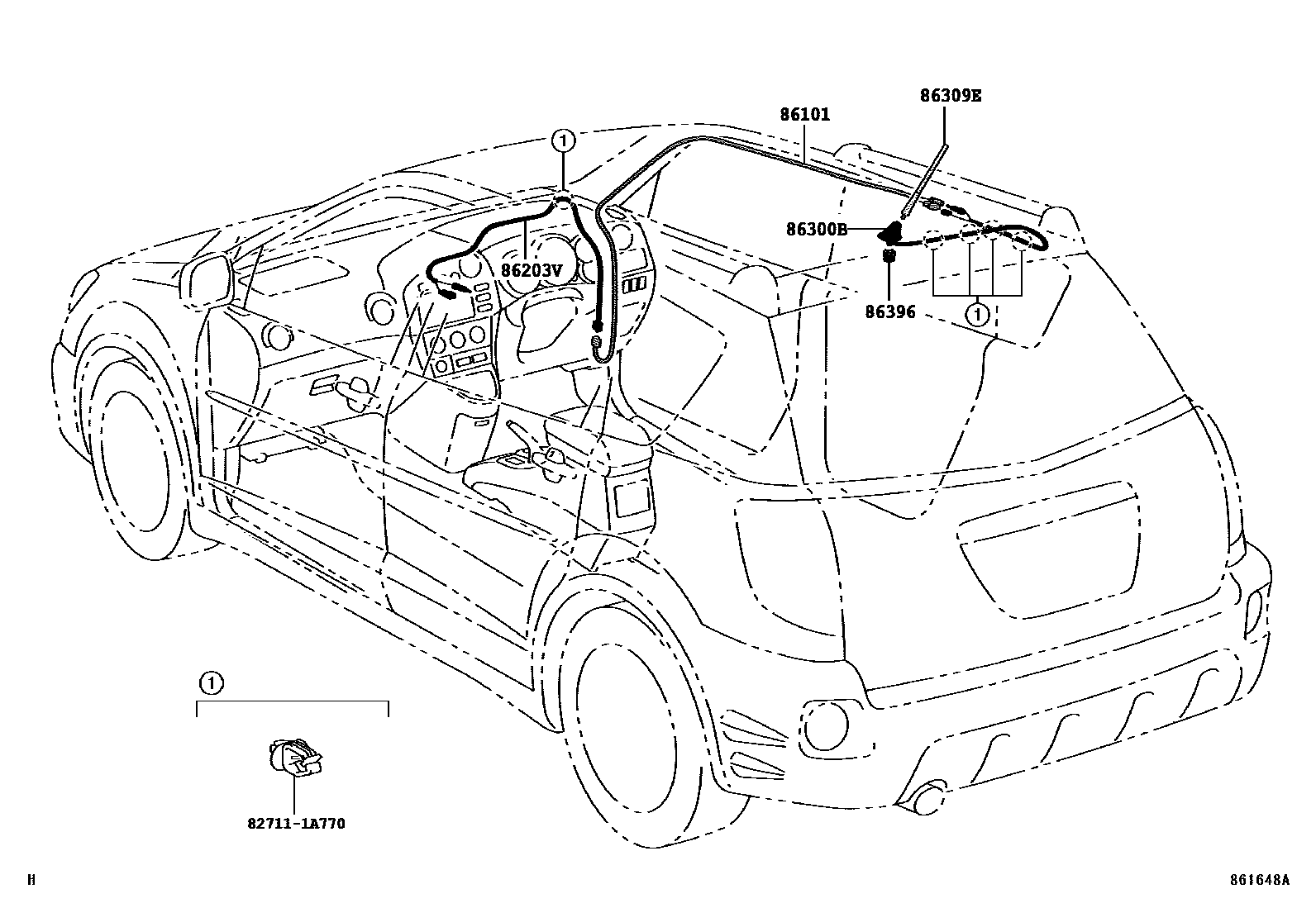

ANTENNA for Toyota VOLTZ

This section contains 6 genuine Toyota parts for the ANTENNA system of the Toyota VOLTZ. Key components include: CORD SUB-ASSY, ANTENNA, WIRE SUB ASSY, RADIO, ANTENNA ASSY, AMPLIFIER, NO.1, POLE SUB-ASSY, ROOF ANTENNA, NUT, ANTENNA.
