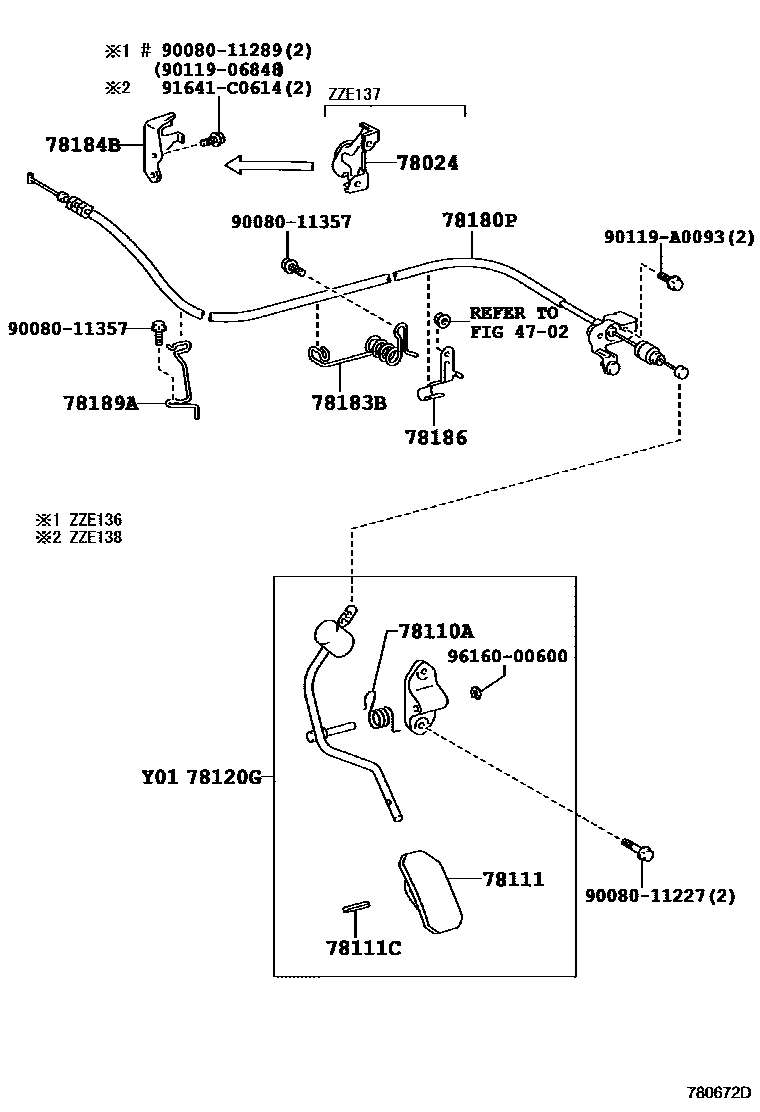

Toyota VOLTZ — ACCELERATOR LINK
4702BRAKE MASTER CYLINDER
78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78111PEDAL, ACCELERATOR
78111CPIN (FOR ACCELERATOR PEDAL)
78120GROD ASSY, ACCELERATOR PEDAL
78180PCABLE ASSY, ACCELERATOR CONTROL
78183BCLAMP, ACCELERATOR CONTROL CABLE
78184BBRACKET, ACCELERATOR CONTROL CABLE
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2
9008011227
main90080-11227
9008011289
main90080-11289
9008011357
main90080-11357
9011906848
main90119-06848
90119A0093
main90119-A0093
91641C0614
main91641-C0614
9616000600
main96160-00600
18 parts on this diagram · 1 diagram in section
ACCELERATOR LINK for Toyota VOLTZ
This section contains 18 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota VOLTZ. Key components include: BRAKE MASTER CYLINDER, BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, PIN (FOR ACCELERATOR PEDAL).
