Toyota VOLTZ — ABS & VSC
4708BRAKE TUBE & CLAMP
89189BBRACKET, YAWRATE SENSOR
89441ASENSOR, DECELERATION
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89544SENSOR, SKID CONTROL
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
9008011215
main90080-11215
9008011223
main90080-11223
9008011273
main90080-11273
9008011357
main90080-11357
9017906074
main90179-06074
91511G0814
main91511-G0814
91651B0616
main91651-B0616

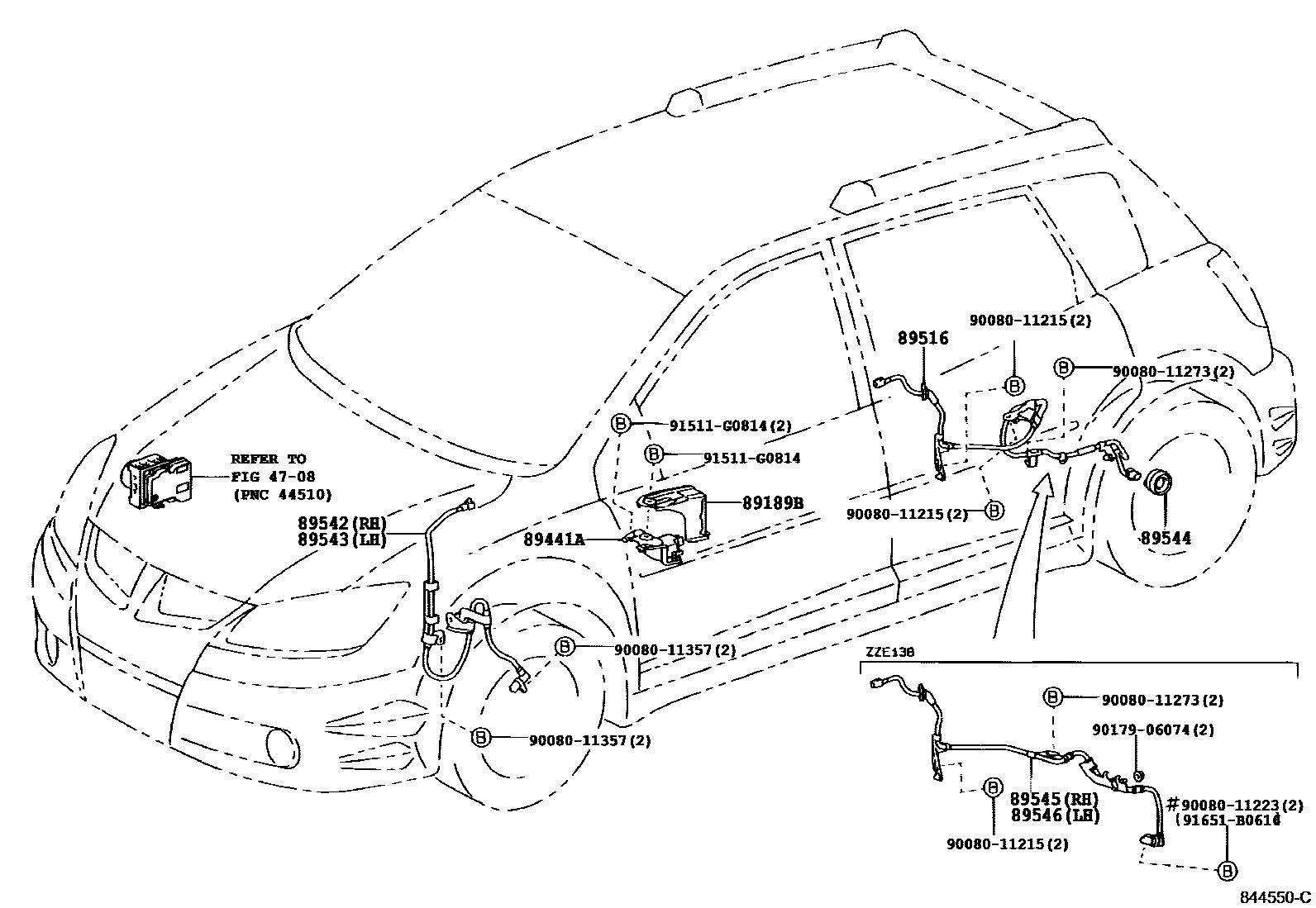

16 parts on this diagram · 1 diagram in section
ABS & VSC for Toyota VOLTZ
This section contains 16 genuine Toyota parts for the ABS & VSC system of the Toyota VOLTZ. Key components include: BRAKE TUBE & CLAMP, BRACKET, YAWRATE SENSOR, SENSOR, DECELERATION, WIRE, SKID CONTROL SENSOR, SENSOR, SPEED, FRONT RH.
