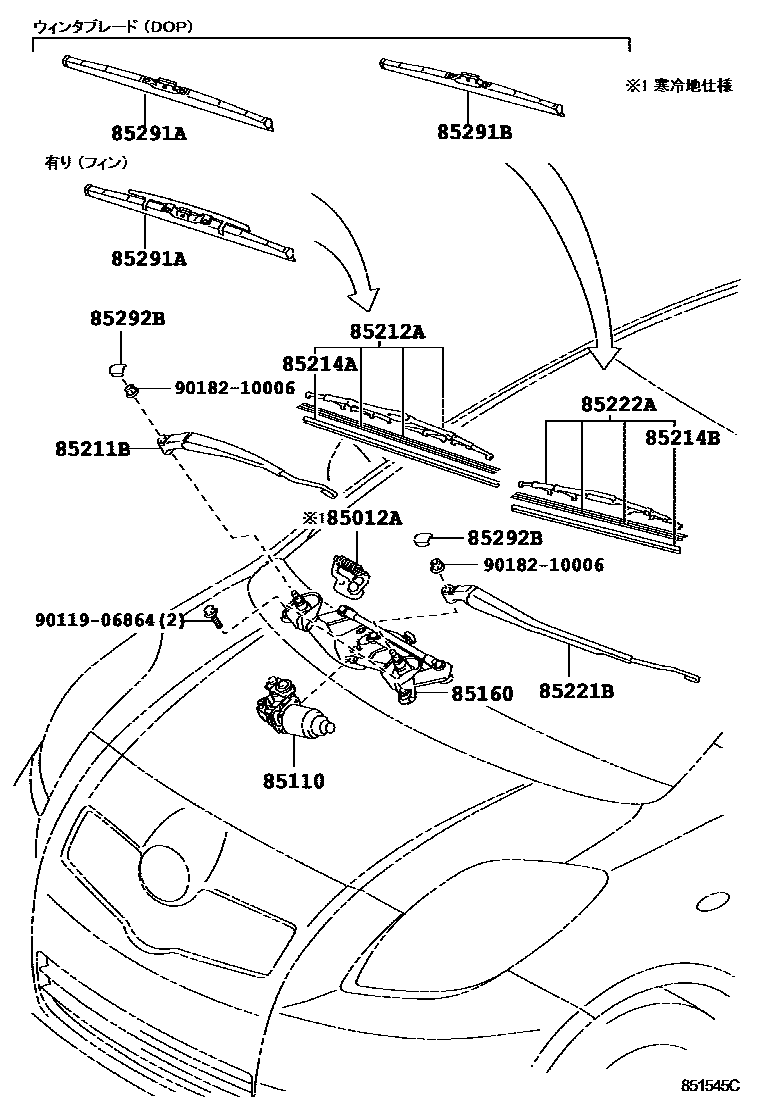

Toyota VITZ — WINDSHIELD WIPER

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-58030iKSP90,NCP9#,SCP90200708-200809

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-1A080supersedes 85110-52490iKSP90,NCP9#,SCP90200808-201012

main85110-52290supersedes 85110-52280iKSP90..B,F200501-200708

sub85110-52340

85160LINK ASSY, WINDSHIELD WIPER

main85150-52230iKSP90,NCP9#,SCP90200501-200708

85211BARM, FRONT WIPER, RH

main85211-52210iNCP91,SCP90..RS200708-200809

85212ABLADE, FR WIPER, RH

main85212-30370iKSP90,NCP9#,SCP90200808-201012

85214ARUBBER, WIPER, RH

main85214-50100iKSP90,NCP9#,SCP90..B,F,ILL,U200708-200808

85214BRUBBER, WIPER, LH

main85214-68010iKSP90,NCP9#,SCP90200501-200511

main85214-68011iKSP90,NCP9#,SCP90200512-200708

85221BARM, FRONT WIPER, LH

main85221-52210iKSP90,NCP9#,SCP90200501-200708

85222ABLADE, FR WIPER, LH

main85222-68010iKSP90,NCP9#,SCP90200501-200511

main85222-68011iKSP90,NCP9#,SCP90200808-201012

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-24090iKSP90,NCP9#,SCP90200808-201012

main85291-24100iKSP90,NCP9#,SCP90..B,F,ILL,U200808-200809

main85291-52080iKSP90,NCP9#,SCP90200809-201012

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-28120iKSP90,NCP9#,SCP90200501-200708

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iKSP90,NCP9#,SCP90200501-200708

9011906864

main90119-06864

9018210006

main90182-10006

14 parts on this diagram · 1 diagram in section
