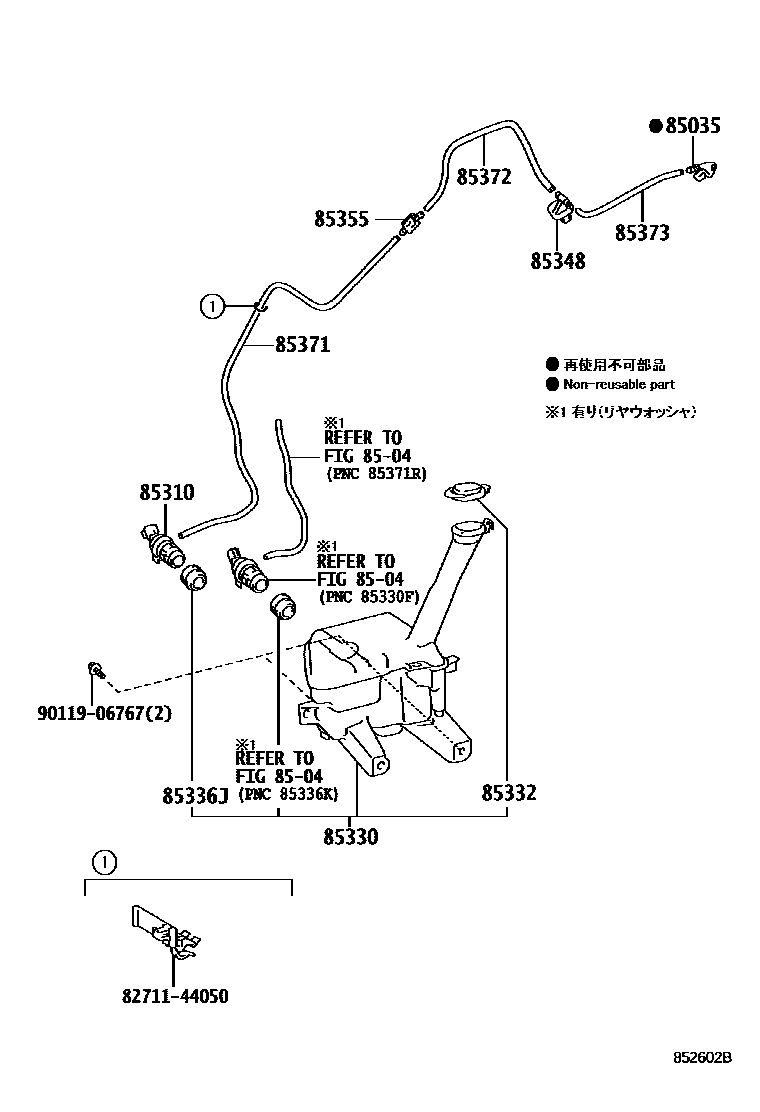

Toyota VITZ — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-52360iKSP130,NCP131,NSP13#..CBU201012-201310

main85381-52361iKSP130,NCP131,NSP13#..CBU201310-201404

sub85381-52461

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010iKSP130,NCP131,NSP13#..CBU201404-201701

85330JAR ASSY, WINDSHIELD WASHER

main85315-52300supersedes 85315-52280iKSP130,NCP131,NSP13#..CBU201404-201701

main85315-52330iKSP130,NSP130..F..CBU201404-201701

main85315-52360iKSP130,NSP130..F..CBU201701

85332CAP, WINDSHIELD WASHER JAR

main85316-10270iKSP130,NCP131,NSP13#..CBU201404-201701

85336JPROTECTOR, WASHER JAR

main85336-60300iKSP130,NCP131,NSP13#..CBU201404-201701

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-52190iKSP130,NCP131,NSP13#..CBU201404-201411

main85375-52441iKSP130,NCP131,NSP13#..CBU201412-201701

85355VALVE, WINDSHIELD WASHER HOSE

main85321-26020iKSP130,NCP131,NHP130,NSP13#..CBU201701

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33918

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iKSP130,NCP131,NSP13#..CBU201012-201404

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iKSP130,NCP131,NSP13#..CBU201012-201212

8271144050WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-44050

9011906767

main90119-06767

13 parts on this diagram · 1 diagram in section
